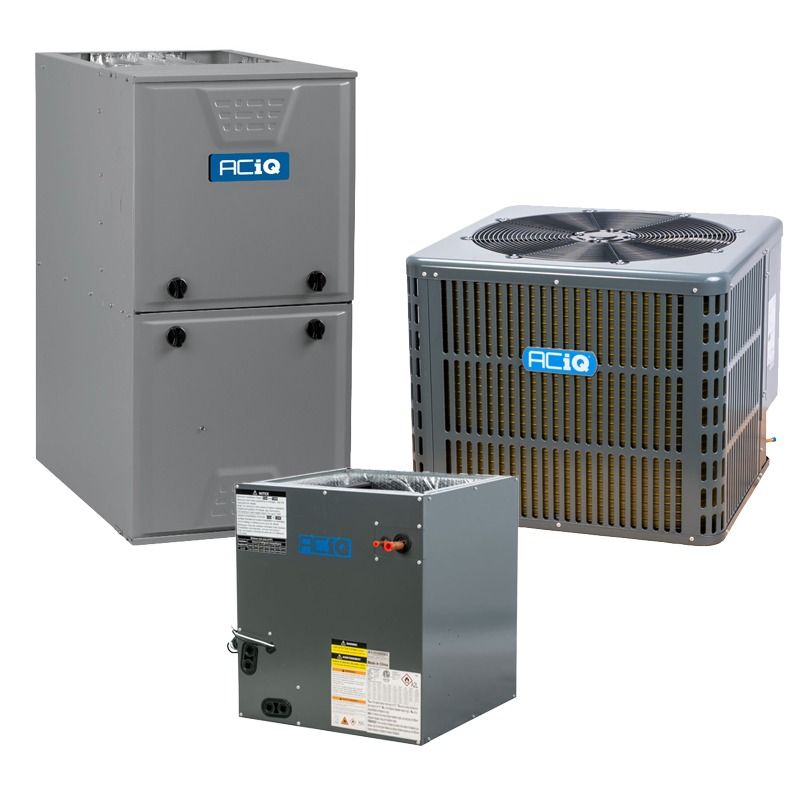

Aciq AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0401712 2.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU Furnace & AC System (17.5 inches Coil) G96VTN0401712

Product Description

AciQ AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0401712 is a matched 2.5 ton split HVAC system that pairs a 30,000 BTU R32 outdoor condenser with a 40,000 BTU 96% AFUE two-stage gas furnace and a 17.5 inch cased multi-positional evaporator coil. The condenser is pre-charged for R32 and rated 14.3 SEER2; the furnace uses a variable speed blower and supports upflow, downflow, or horizontal installations.

• Complete matched system: 30,000 BTU (2.5 ton) condenser, 40,000 BTU 96% AFUE two-stage furnace, and 17.5" cased multi-positional evaporator coil.
• Condenser: R32 refrigerant (pre-charged), 14.3 SEER2, EER 11.7, 208/230V single-phase electrical, 17–25 A breaker range, approx. 59 dBA sound level.
• Furnace and coil: furnace variable speed blower (max 1105 CFM), field-convertible to propane with optional LP kit, coil is all-aluminum with factory-installed TXV and 3/8" liquid / 3/4" suction connections.

Product Highlights

Matched 2.5 ton R32 system with 14.3 SEER2 condenser, 96% AFUE two-stage furnace, and 17.5" cased TXV coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0401712
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number (MPN): AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0401712
• System Type: Split central air conditioner and gas furnace matched system
• Cooling Capacity: 30,000 BTU (2.5 Ton)
• Heating Capacity: 40,000 BTU
• SEER2 Rating: 14.3
• EER2 Rating: 11.7
• Refrigerant Type: R32 (A2L)
• Refrigerant Charge (Condenser): 75.84 oz.
• Compressor Type: Rotary
• Condenser Input Voltage: 208/230 V 1 Phase 60 Hz
• Condenser Min Breaker Size: 17 Amps
• Condenser Max Breaker Size: 25 Amps
• Condenser Sound Level: 59 dBA (approx.)
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser Weight: 148.00 lbs
• Coil Model: AC-I-3036ACL-17
• Coil Type: Cased A-coil, multi-positional
• Coil Dimensions (H x W x D): 23.58" x 17.5" x 21.02"
• Coil Tonnage Compatibility: 2.5 to 3 Ton
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Construction: All-aluminum
• Coil Features: Factory-installed TXV, AHRI certified
• Coil Weight: 60.00 lbs
• Furnace Model: G96VTN0401712
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed (ECM)
• Furnace Maximum CFM: 1105
• Furnace Burner Stages: Two
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Input Voltage: 120 V 1 Phase 60 Hz
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Weight: 133.00 lbs
• Exhaust Flue Requirement: Plastic / PVC
• AHRI Certificate Number (Furnace): 213148540
• Number of Compressors: 1
• Cooling Stages: Single stage
• Heating Stages: Two stage
• Power Phase: Single phase
• Country of Origin: China
