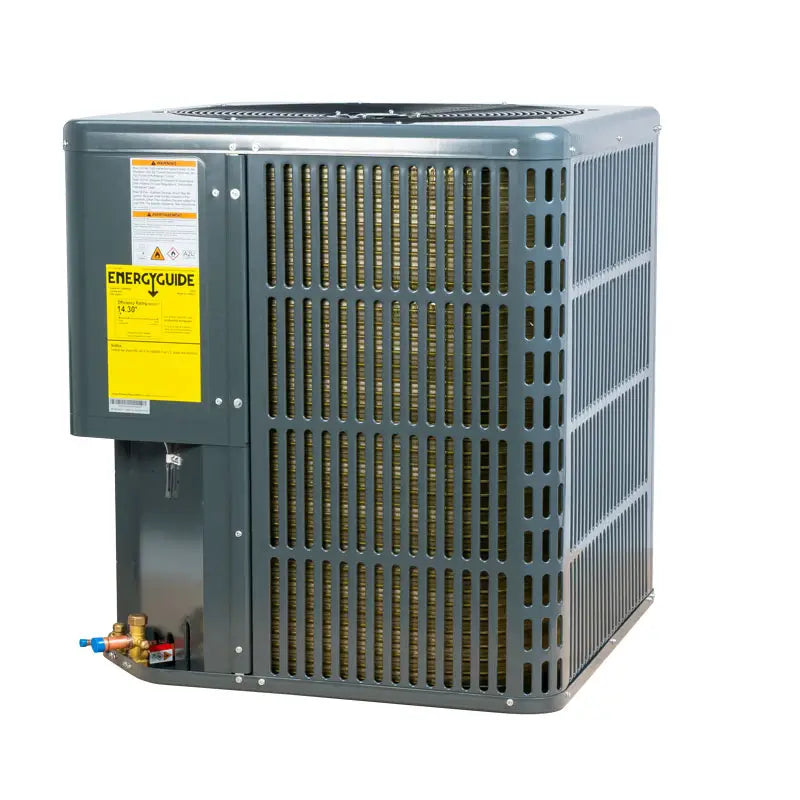

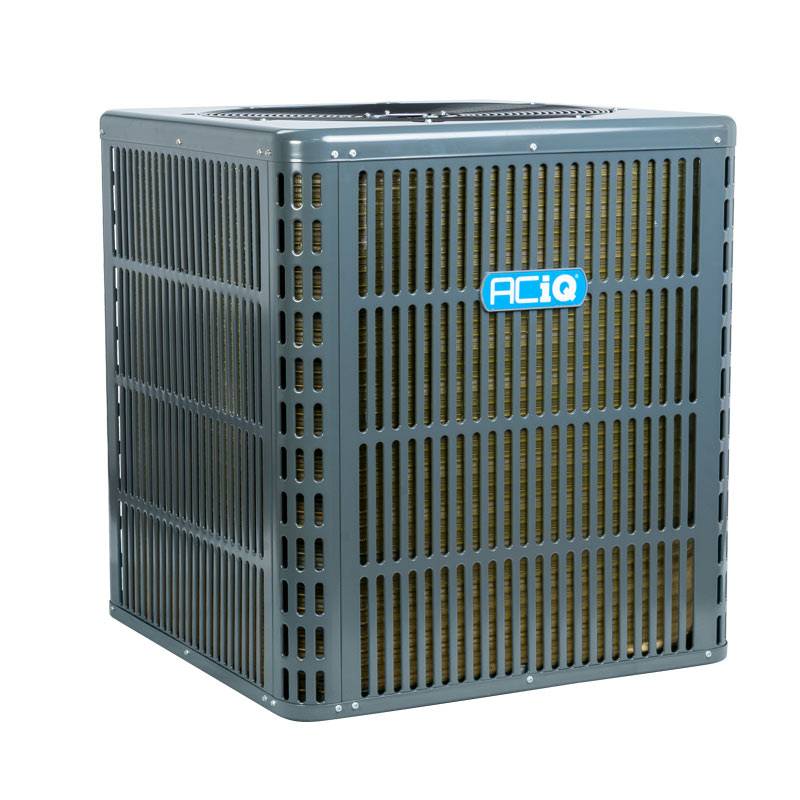

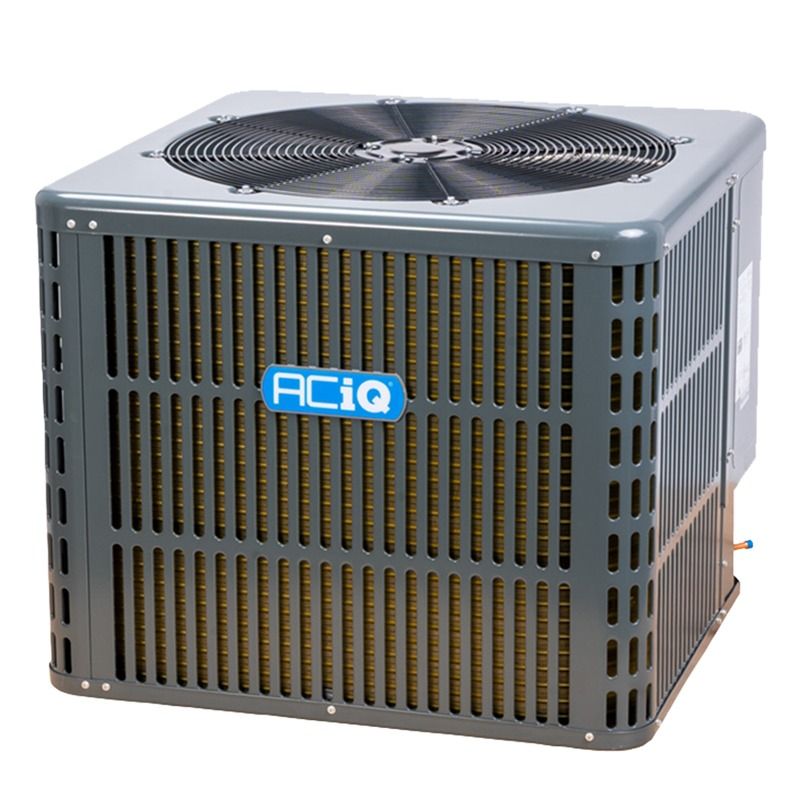

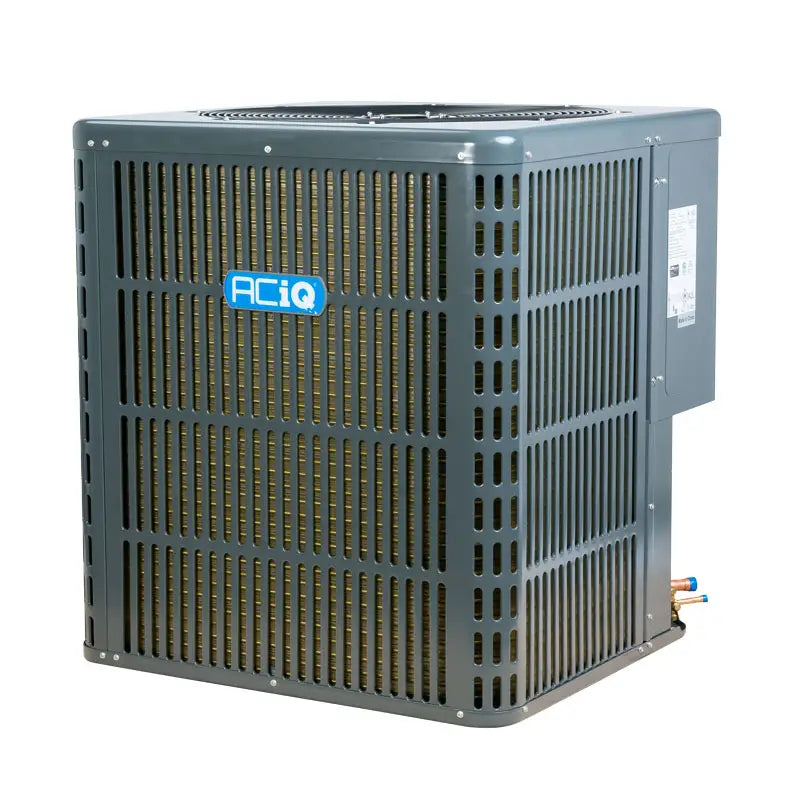

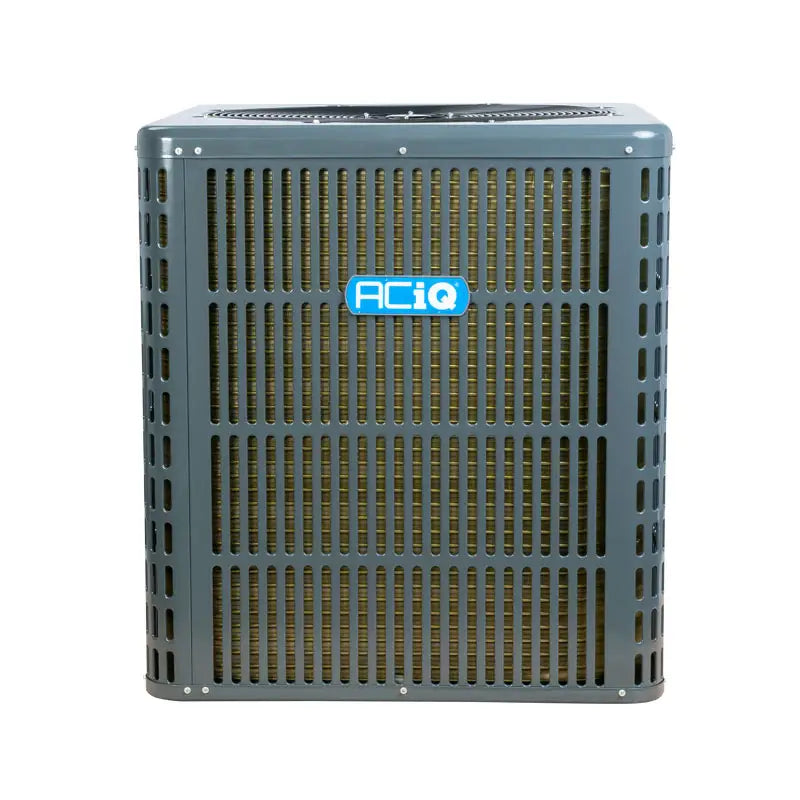

Aciq AC-I-30AC14 2.5 Ton Central Air Conditioner Condenser 30,000 BTU (Replacement AC-I-30AC14)

Product Description

The Aciq AC-I-30AC14 is a 2.5 ton (30,000 BTU) central air conditioner condenser with a 14.3 SEER2 rating. It operates on 208-230 V, 1 phase, 60 Hz power and uses precharged R32A refrigerant with a rotary single-stage compressor. The outdoor unit has a corrosion-resistant design, a rated sound level of about 58 dB(A), dimensions of 29.13" x 29.13" x 25.00", and an operating range of 5 to 131 F. It requires pairing with an R32 air handler or evaporator coil equipped with refrigerant leakage detection.

• 2.5 ton (30,000 BTU) condenser with 14.3 SEER2 efficiency and 11.7 EER
• Rotary single-stage compressor, precharged with R32A refrigerant; liquid line 3/8" and suction line 3/4"
• Electrical: 208-230 V, 1 Phase, 60 Hz; outdoor rated, corrosion-resistant construction; approx. 58 dB(A)

Product Highlights

2.5 ton condenser; 14.3 SEER2; precharged R32A; 208-230V 1Ph

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14
• Country of Origin: China

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14
• Model: AC-I-30AC14
• Type: Central air conditioner condenser
• Tonnage: 2.5 Ton
• Cooling Capacity: 30,000 BTU
• SEER2 Rating: 14.3 SEER2
• EER: 11.7
• Compressor Type: Rotary
• Compressor Stages: Single stage
• Number of Compressors: 1
• Refrigerant: R32A
• Refrigerant Charge: 75.84 oz.
• Input Voltage: 208-230 V
• Power Phase: 1 Phase
• Frequency: 60 Hz
• Operating Range: 5 to 131 F
• Liquid Line Size: 3/8"
• Suction/Gas Line Size: 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 29.13" x 29.13" x 25.00"
• Weight: 139 lbs.
• Max Breaker Size: 25 Amps
• Min Breaker Size: 17 Amps
• Discharge Type: Top discharge
• Compatibility: Requires pairing with R32 air handler or evaporator coil equipped with refrigerant leakage detection system
• Country of Origin: China
