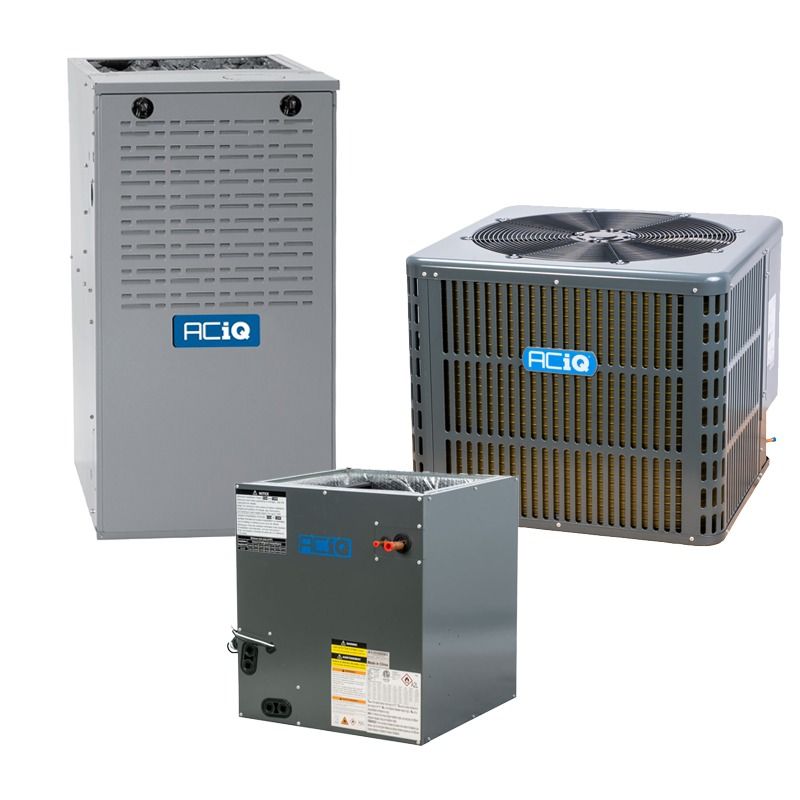

Aciq AC-I-30AC14 2.5 Ton 14.3 SEER2 Furnace and AC System (21 in Coil) AC-I-3036ACL-21 G80CTL0702120

Product Description

The AciQ AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL0702120 is a matched HVAC system that includes a 2.5 ton 14.3 SEER2 R32 outdoor condenser, a multi-positional 80% AFUE two-stage 60,000 BTU gas furnace, and a 21 inch cased A-coil evaporator. The system is pre-charged with R32 refrigerant and configured for upflow, downflow, or horizontal installation, with factory-installed TXV and variable speed ECM blower motor.

• Condenser: 30,000 BTU cooling capacity, 14.3 SEER2, 11.7 EER2, rotary compressor, pre-charged with R32 refrigerant (75.84 oz), rated ~59 dBA
• Furnace: 66,000 BTU input (approximately 53,000 BTU output at 80% AFUE), two-stage burner, direct ignition with silicon nitride hot surface ignitor, 115V 1 phase 60 Hz electrical
• Evaporator coil: 21.02 in width cased A-coil, all-aluminum construction, factory-installed TXV, multi-positional; condenser electrical 208/230V 1 phase 60 Hz

Product Highlights

Matched 2.5 ton R32 system with variable speed ECM furnace blower, multi-positional 21 inch evaporator coil, and 12-year compressor warranty on condenser.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL0702120

Technical Specifications

• Brand: ACiQ
• Model (system): AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL0702120
• Furnace SKU / MPN: G80CTL0702120
• Furnace Input BTU: 66,000
• Furnace Output BTU: Approx. 53,000 (66,000 input x 80% AFUE)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field convertible to propane with optional LP kit)
• Furnace Electrical (Input Voltage): 115V 1 phase 60 Hz
• Furnace Height: 33 1/3 in
• Furnace Width: 21 in
• Furnace Depth: 29 in
• Condenser SKU / MPN: AC-I-30AC14
• Condenser Cooling Capacity: 30,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Refrigerant Charge: 75.84 oz
• Condenser Decibel Level: Approximately 59 dBA
• Condenser Compressor Type: Rotary
• Condenser Electrical (Input Voltage): 208/230V 1 phase 60 Hz
• Condenser Max Breaker Size: 25 Amps
• Condenser Min Breaker Size: 17 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Condenser Tonnage: 2.5 Ton
• Condenser Height: 25 in
• Condenser Width: 29.13 in
• Condenser Depth: 29.13 in
• Evaporator Coil SKU / MPN: AC-I-3036ACL-21
• Evaporator Coil Tonnage: 2.5 to 3 Ton
• Evaporator Coil Style: A-coil (cased)
• Evaporator Coil Width: 21.02 in
• Evaporator Coil Height: 23.58 in
• Evaporator Coil Depth: 21.02 in
• Evaporator Coil Features: All-aluminum construction; factory-installed TXV; multi-positional
• Line Set Options: 3/8 in liquid line x 3/4 in suction line (30 ft and 50 ft available), insulated, no-tear options
• Product ID: 225353
