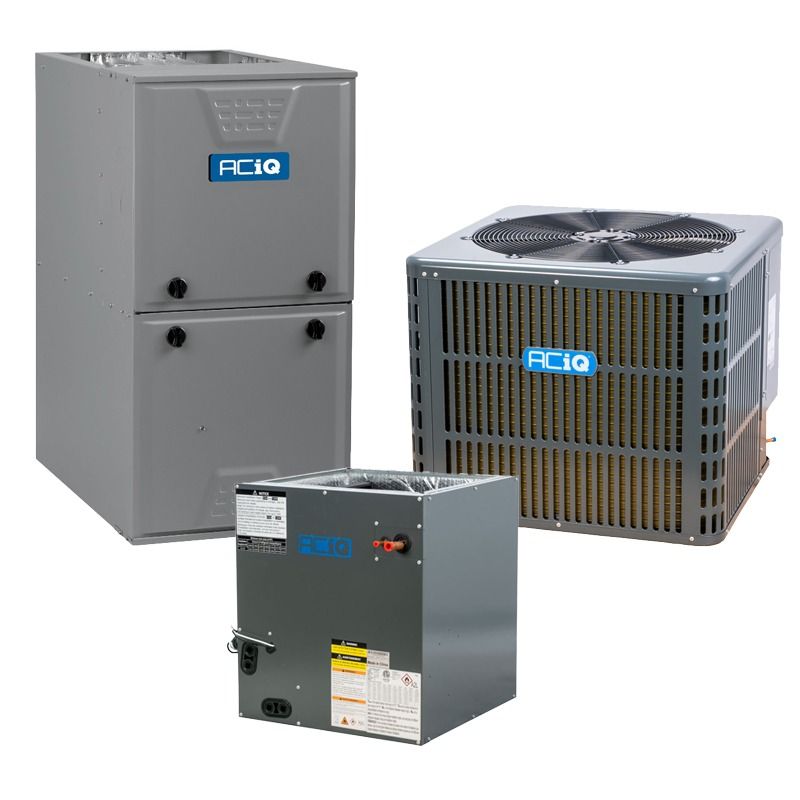

Aciq AC-I-30AC14 2.5 Ton 14.3 SEER2 96% AFUE 60,000 BTU Furnace and AC System (17.5 inches Coil) N96MSN0601716A

Product Description

The ACiQ AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0601716A is a matched split HVAC system combining a 2.5 ton (30,000 BTU) R32 condenser, a 60,000 BTU 96% AFUE multi-positional gas furnace, and a 17.5-inch cased evaporator coil with factory-installed TXV. The condenser operates on 208/230V single-phase power and is rated at 14.3 SEER2 (approx. 59 dBA). The furnace includes an ECM blower, single-stage burner, and is field-convertible to propane.

• Condenser: 2.5 ton (30,000 BTU), 14.3 SEER2, R32 refrigerant, rotary compressor, 208/230V 1Ph 60Hz, ~59 dBA.
• Furnace: 60,000 BTU, 96% AFUE, ECM blower, single-stage burner, multi-positional (upflow/downflow/horizontal), field-convertible to propane.
• Evaporator coil: 17.5" cased A-coil, all-aluminum construction with factory-installed TXV; liquid line 3/8" and suction line 3/4".

Product Highlights

Matched 2.5 ton R32 condenser, 60,000 BTU 96% AFUE furnace, and 17.5-inch TXV cased coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0601716A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0601716A
• Product Type: Matched Furnace and Air Conditioner Split System
• System Type: Matched Furnace + Condenser + Evaporator Coil (Split System)
• Condenser MPN: AC-I-30AC14
• Condenser Cooling Capacity: 30,000 BTU
• Condenser Tonnage: 2.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 75.84 oz
• Condenser Compressor Type: Rotary
• Condenser Noise Level: 59 dBA
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 17 Amps
• Condenser Max Breaker Size: 25 Amps
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Dimensions: 25" x 29.13" x 29.13"
• Condenser Weight: 148 lbs
• Evaporator Coil MPN: AC-I-3036ACL-17
• Coil Tonnage: 2.5 to 3 Ton
• Coil Width: 17.5"
• Coil Style: Cased A-Coil
• Coil Material: All-aluminum
• Coil Features: Factory-installed TXV; compatible with R32; leak mitigation control kit required
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions: 23.58" x 17.5" x 21.02"
• Coil Weight: 60 lbs
• Furnace MPN: N96MSN0601716A
• Furnace Heating Capacity: 60,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 1330
• Furnace Configuration: Upflow / Downflow / Horizontal (Multi-positional)
• Furnace Energy Star: Yes
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Dimensions: 35" x 17.5" x 29.5"
• Furnace Weight: 138 lbs
• Furnace AHRI Certificate Number: 213148506
• System Electrical Requirements: Condenser requires 208/230V 1Ph 60Hz; breaker 17-25A
• Condenser Min/Max Breaker (summary): 17-25 A
