Aciq AC-I-30AC14 2.5 ton 14.3 SEER2 96% AFUE 40,000 BTU furnace & ac system (17.5 in) AC-I-3036ACL-17 / N96MSN0401712A

Product Description

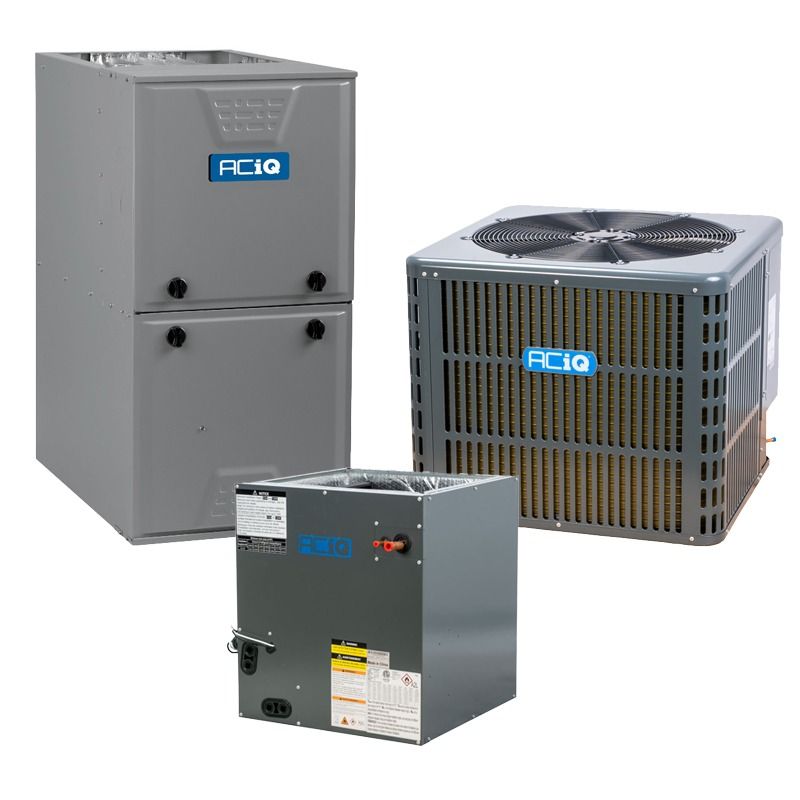

The Aciq AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0401712A is a matched 2.5 ton central air and gas furnace system that pairs a 14.3 SEER2 R32 condenser with a 40,000 BTU 96% AFUE multi-positional furnace and a cased multi-positional evaporator coil. The condenser is pre-charged with 75.84 oz R32 and requires 208/230 V 1Ph power; the furnace uses 120 V and features a multi-speed ECM blower and single-stage burner. The coil includes a factory-installed TXV and supports upflow, downflow, or horizontal installation.

• Matched system: 2.5 ton 14.3 SEER2 R32 condenser, cased multi-positional A-coil, and 40,000 BTU 96% AFUE furnace

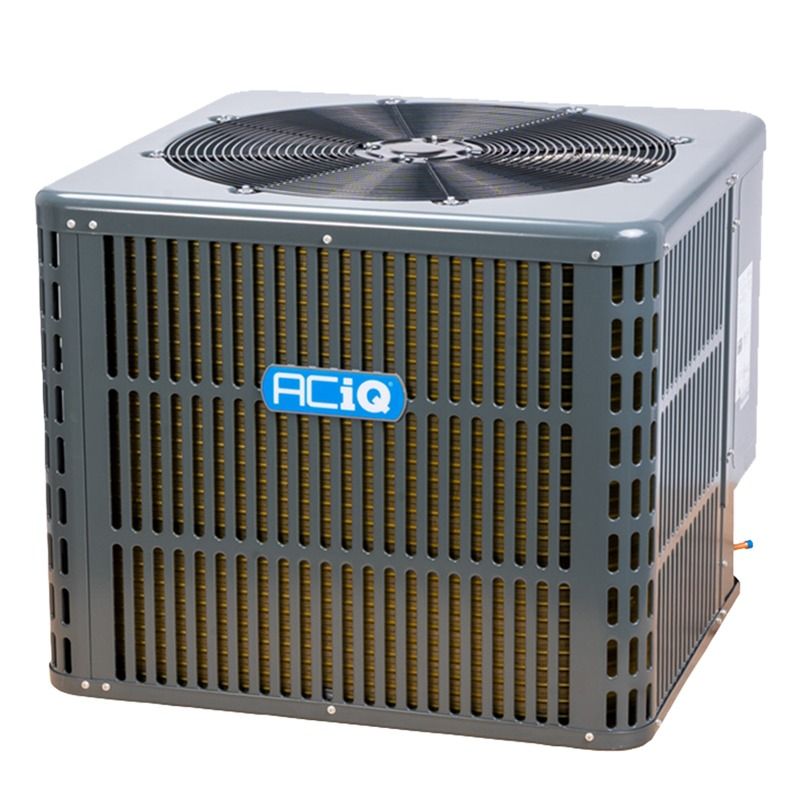

• Condenser pre-charged with 75.84 oz R32 refrigerant; condenser electrical: 208/230 V 1Ph, max breaker 25 A; noise 59 dBA
• Furnace multi-positional (upflow/downflow/horizontal) with multi-speed ECM blower, single-stage burner, field-convertible to propane

Product Highlights

Matched 2.5 ton R32 system with 14.3 SEER2 condenser, cased A-coil with factory TXV, and 96% AFUE multi-positional furnace; condenser charge 75.84 oz R32.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0401712A

Technical Specifications

• Brand: Aciq
• Model / Combined MPNs: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0401712A
• System Tonnage: 2.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Cooling BTU: 30,000 BTU
• Refrigerant Type: R32 (pre-charged)
• Condenser Refrigerant Charge: 75.84 oz
• Compressor Type: Rotary
• Condenser Noise Level: 59 dBA
• Input Voltage (Condenser): 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 25 Amps
• Condenser Min Breaker Size: 17 Amps

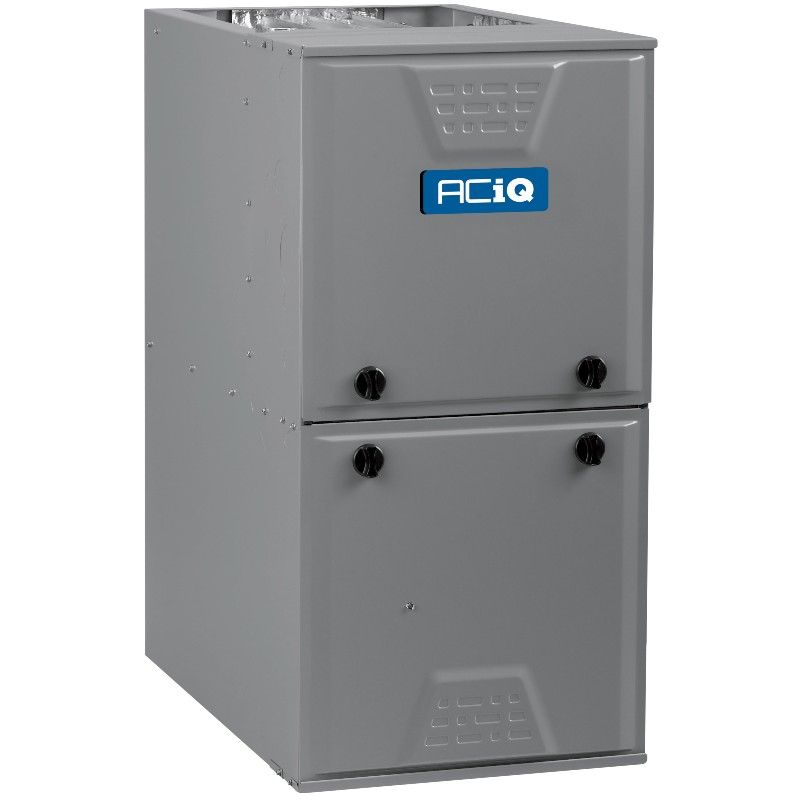

• Furnace Heating Input BTU: 40,000 BTU
• Furnace Output BTU (approx.): 32,000 BTU
• Furnace AFUE: 96%
• Input Voltage (Furnace): 120 V, 1 Phase, 60 Hz
• Furnace Configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace Blower Motor: Multi-speed ECM
• Furnace Burner Stages: Single stage
• Fuel Type (Furnace): Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Exhaust Flue Requirement: Plastic / PVC

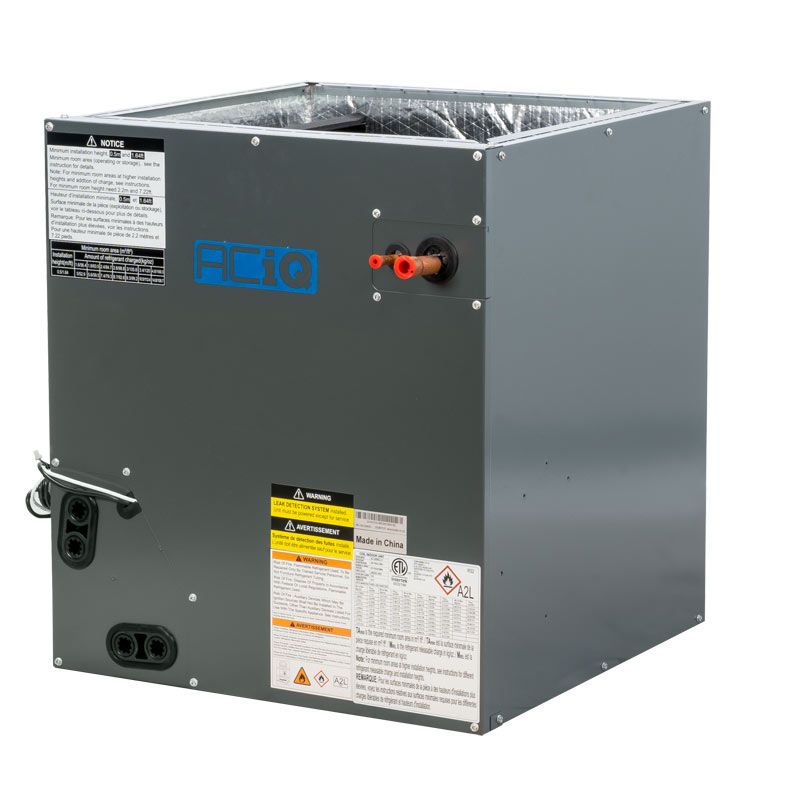

• Evaporator Coil Style: Cased A-coil, multi-positional
• Evaporator Coil Material: All-aluminum
• Evaporator Coil Cabinet Width: 17.5 in
• Evaporator Coil Feature: Factory-installed TXV
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Maximum CFM: 1010
• AHRI Certificate Number: 213148758
