Aciq AC-I-30AC14 2.5 Ton 14.3 SEER2 80% AFUE (Multi-Positional) Replaces N80ESN0451712A

Product Description

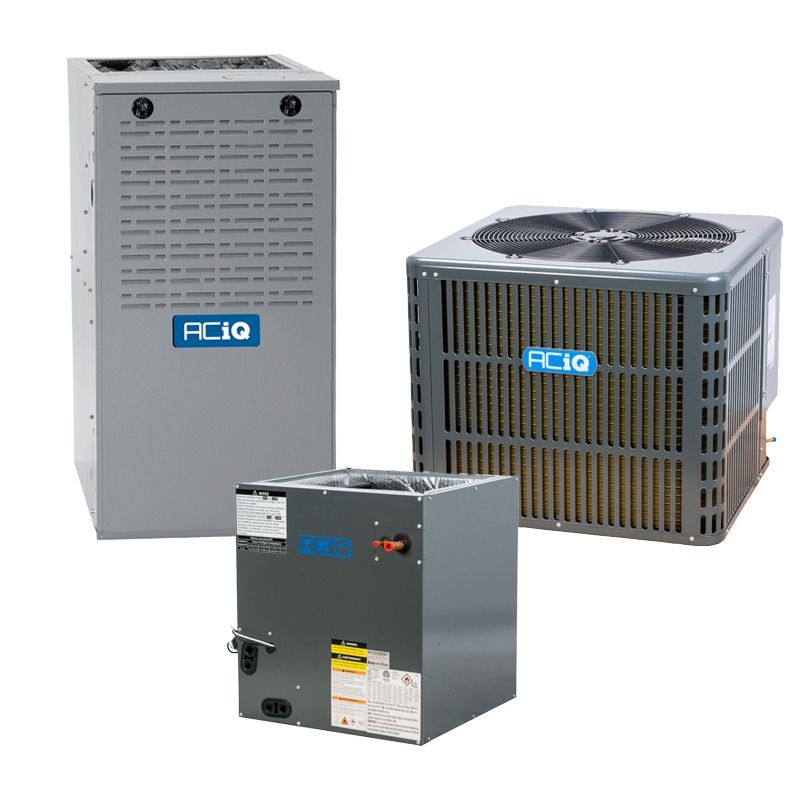

AciQ AC-I-30AC14 / AC-I-3036ACL-17 / N80MSN0451714A is a matched HVAC system that combines a 2.5 ton 14.3 SEER2 R32 condenser, a 44,000 BTU input 80% AFUE multi-positional furnace, and a 2.5–3 ton cased evaporator coil. The system is pre-charged with R32 refrigerant, supports upflow/downflow/horizontal installation, and features a multi-speed ECM blower and direct ignition with a silicon nitride hot surface ignitor.

• Condenser: 30,000 BTU (2.5 ton), 14.3 SEER2, 11.7 EER2, R32 pre-charged, rotary compressor, 208/230V input
• Furnace: 44,000 BTU input, 80% AFUE, multi-speed ECM blower, single-stage burner, direct silicon nitride hot surface ignition, 115V
• Coil and installation: 2.5–3 ton cased A-coil, multi-positional (upflow/downflow/horizontal); liquid/suction line sizes 3/8" and 3/4"; furnace requires metal flue venting

Product Highlights

Matched 2.5 ton R32 system with multi-positional furnace and cased coil; pre-charged R32 refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / N80MSN0451714A

Technical Specifications

• System models/MPN: AC-I-30AC14 / AC-I-3036ACL-17 / N80MSN0451714A
• Furnace SKU: N80MSN0451714A
• Furnace input BTU: 44,000 BTU (input)
• Furnace output BTU (approx.): 35,200 BTU (approx.)
• Furnace AFUE: 80%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Multi-speed ECM
• Furnace maximum CFM: 1215
• Furnace burner stages: Single stage
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace input voltage: 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Furnace dimensions (H x W x D): 33.33" x 17.5" x 29"
• Furnace weight: 119 lbs
• Furnace exhaust flue requirement: Metal
• Condenser SKU: AC-I-30AC14
• Condenser cooling BTU: 30,000 BTU (2.5 ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser decibel level: 59 dBA (approx.)
• Condenser refrigerant: R32 (pre-charged)
• Condenser compressor type: Rotary
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 25 Amps
• Condenser min breaker size: 17 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser weight: 148 lbs
• Coil SKU: AC-I-3036ACL-17
• Coil tonnage: 2.5 to 3 Ton
• Coil style: Cased A-coil, multi-positional
• Coil refrigerant: R32
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil dimensions (H x W x D): 23.58" x 17.5" x 21.02"
• Coil weight: 60 lbs
• Furnace equivalent models: Replaces N80ESN0451712A; Carrier equivalent 58SB0A045E17--12; Tempstar equivalent TN80ESN0451712A; Bryant equivalent 810SA36045E17
