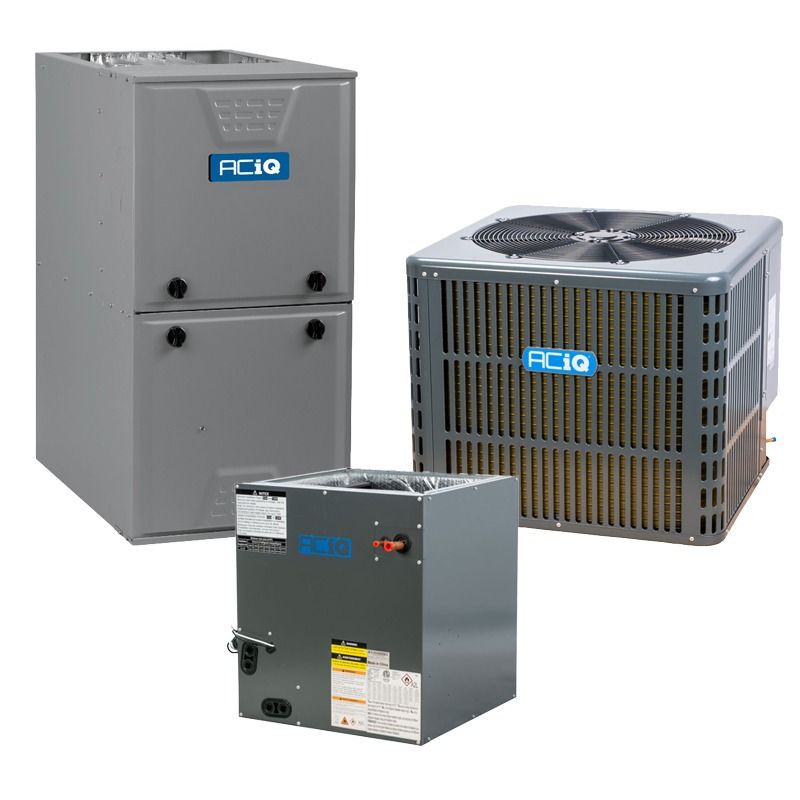

Aciq AC-I-30AC14 2.5 Ton 14.3 SEER2 80,000 BTU furnace and AC system (2.5 Ton / 17.5 in coil) G96CTN0801714

Product Description

Aciq AC-I-30AC14 is a matched HVAC system that combines a 2.5 ton 14.3 SEER2 R32 outdoor condenser, a 96% AFUE 80,000 BTU two-stage multi-positional gas furnace, and a 17.5 in multi-positional cased evaporator coil. The condenser operates on 208/230 V single-phase power, is pre-charged with R32 refrigerant and includes a refrigerant leak mitigation kit; the furnace features a variable-speed ECM blower and supports upflow, downflow, or horizontal installation.

• Matched system: 2.5 ton condenser (14.3 SEER2), 80,000 BTU two-stage furnace (96% AFUE), and 17.5 in cased evaporator coil.
• Condenser pre-charged with R32 refrigerant, rotary single-stage compressor, 208/230 V 1-phase electrical, and ~59 dBA operating noise.
• Furnace has variable-speed constant torque ECM blower, up to 1945 CFM, multi-positional cabinet, plastic/PVC venting, and convertible fuel option.

Product Highlights

Matched 2.5 ton R32 system with 14.3 SEER2 condenser, 96% AFUE two-stage furnace, 17.5 in multi-positional coil, and multi-year component warranties.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / G96CTN0801714

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / G96CTN0801714
• System Cooling Capacity: 2.5 Ton (30,000 BTU)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant: R32 (pre-charged, 75.84 oz.)
• Condenser Noise Level: 59 dBA
• Condenser Compressor Type: Rotary (single stage)
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Min Breaker Size: 17 Amps
• Condenser Max Breaker Size: 25 Amps
• Furnace Heating Capacity: 80,000 BTU
• Furnace Efficiency (AFUE): 96%
• Furnace Stages: Two-stage
• Furnace Fuel Type: Natural Gas (convertible to Propane with kit)
• Furnace Blower Motor: Variable speed, constant torque ECM
• Furnace Max CFM: 1945
• Furnace Configuration: Multi-positional: Upflow / Downflow / Horizontal
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Evaporator Coil Type: Cased evaporator coil, multi-positional
• Evaporator Coil Width: 17.5 in
• Coil Compatible Tonnage: 2.5 to 3 Ton
• Coil Refrigerant: R32
• AHRI Certificate Number (Furnace): 213148725
• Furnace Weight: 171.50 lbs
• Condenser Weight: 148.00 lbs
• Coil Weight: 60.00 lbs
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Condenser Dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Coil Dimensions (H x W x D): 23.58 in x 17.5 in x 21.02 in
• Notes / Requirements: Pre-charged with R32 refrigerant; includes R32 leak mitigation kit; designed for multi-positional installation; R32 (A2L) refrigerant safety considerations; condenser requires pairing with compatible indoor equipment and R32 air handler/coil with leak detection.
