Aciq AC-I-30AC14 2.5 Ton 14.3 SEER2 80,000 BTU Furnace and AC System (17.5 in) N96MSN0801716A

Product Description

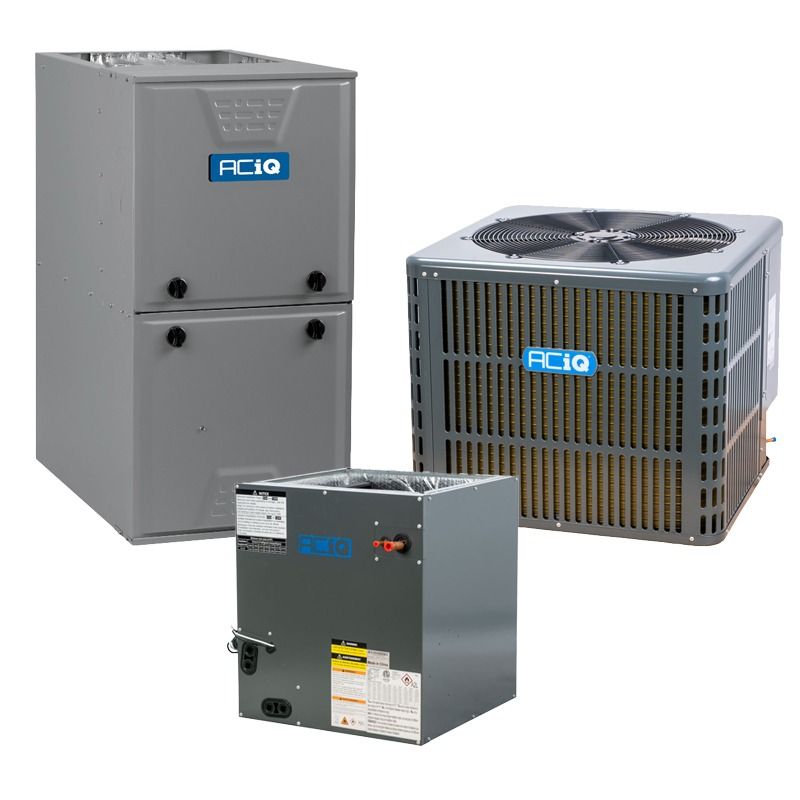

The Aciq AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0801716A is a matched 2.5 ton HVAC system combining a 14.3 SEER2 R32 outdoor condenser, a 96% AFUE 80,000 BTU multi-positional gas furnace, and a 17.5 in cased evaporator coil. The condenser is pre-charged with R32, runs on 208/230V 1-phase 60 Hz with a rotary compressor and ~59 dBA sound level. The furnace uses an ECM blower, delivers up to 1665 CFM, and the coil includes a factory TXV for 2.5–3 ton installations.

• Matched system with 14.3 SEER2 R32 condenser (30,000 BTU), rotary compressor, pre-charged refrigerant, 208/230V 1-phase 60 Hz, and ~59 dBA sound level
• 96% AFUE multi-positional natural gas furnace with ECM blower, single-stage burners, 80,000 BTU output, and maximum 1665 CFM
• 17.5 in cased A-coil evaporator for 2.5–3 ton systems with factory-installed TXV and included R32 refrigerant leak mitigation kit

Product Highlights

Matched 2.5 ton R32 HVAC system with 14.3 SEER2 condenser, 96% AFUE multi-positional furnace, and 17.5 in cased evaporator coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0801716A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-30AC14 / AC-I-3036ACL-17 / N96MSN0801716A
• Product ID: 225428
• System Tonnage: 2.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Cooling BTU: 30,000 BTU
• Refrigerant: R32 (pre-charged)
• Noise Level: 59 dBA
• Input Voltage: 208/230V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 25 Amps
• Condenser Min Breaker Size: 17 Amps
• Condenser Compressor Type: Rotary
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Furnace Heating BTU: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: ECM
• Furnace Burner Stages: Single
• Furnace Maximum CFM: 1665
• Furnace Dimensions: Width 17.5 in x Height 35 in x Depth 29.5 in
• Evaporator Coil Dimensions: Width 17.5 in x Height 23.58 in x Depth 21.02 in
• Evaporator Coil Style: Cased A-Coil
• Evaporator Coil Tonnage: 2.5 to 3 Ton
• Coil Features: Factory-installed TXV
• Includes R32 Leak Mitigation Kit: Yes
• AHRI Certificate Number (Furnace): 213148760
• Equivalents: Carrier 59SC5B080E17--16; Tempstar TN95ESN0801716A; Bryant 915SB48080E17
