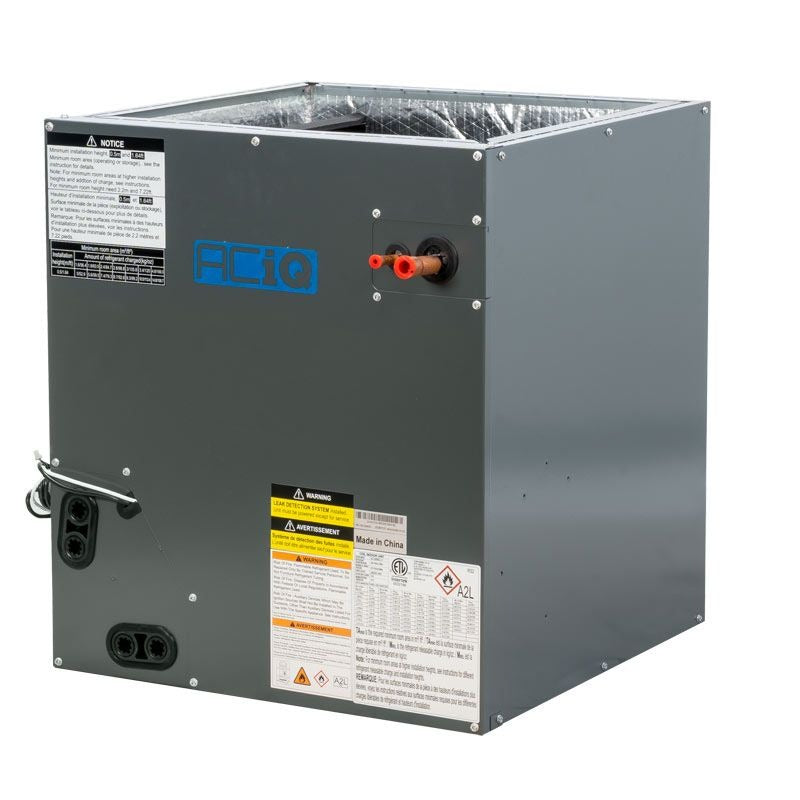

Aciq AC-I-3036ACL-17 Cased A-coil 2.5-3 Ton R32

Product Description

The ACIQ AC-I-3036ACL-17 is a cased A-coil evaporator coil rated for 2.5 to 3 tons, designed for use with R32 refrigerant systems. It is built with all-aluminum construction to reduce the risk of formicary corrosion that occurs with traditional copper coils. A factory-installed Thermal Expansion Valve (TXV) provides precise refrigerant metering without requiring a field-supplied metering device. At 17.5 inches wide, the cabinet aligns with standard residential furnace widths. The coil ships with a leak mitigation control kit for R32 handling. Licensed HVAC technicians install this coil as part of a split-system air conditioning or heat pump application.

This coil is suited for residential and light-commercial split systems using R32 refrigerant. Its multi-position design supports upflow, downflow, and horizontal orientations, making it adaptable to a range of ductwork configurations. The 17.5-inch cabinet width fits common residential air handler and furnace cabinets. The unit is AHRI certified when paired with compatible ACIQ outdoor equipment. It is intended to work as the indoor section of an air conditioning or heat pump system where R32 refrigerant is specified.

Key Features

• Multi-position design supports upflow, downflow, and horizontal installation orientations
• All-aluminum coil construction reduces formicary corrosion risk versus copper coil alternatives
• Factory-installed TXV eliminates the need for a field-supplied metering device
• Compatible with R32 refrigerant and includes a leak mitigation control kit
• 17.5-inch cabinet width matches standard residential furnace and air handler sizes
• AHRI certified for performance when matched with compatible ACIQ equipment

Compatibility

Designed as an OEM-style replacement or new-installation cased evaporator coil for residential split-system air conditioning and heat pump applications using R32 refrigerant. AHRI certified when paired with compatible ACIQ outdoor units. Refer to ACIQ submittal documents AC-I-30AC14 and AC-I-36AC14 for matched-system performance data.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable state and local codes. Power down the air handler or furnace and recover any residual refrigerant before disconnecting existing coil connections. R32 is an A2L mildly flammable refrigerant and requires handling per applicable safety codes and manufacturer leak mitigation guidelines. Register the unit with ACIQ online within the required period to activate the full warranty term.

Technical Specifications

• Tonnage: 2.5 to 3 Ton
• Refrigerant: R32
• Style: A-Coil
• Cabinet Width: 17.5 inches
• Height: 23.58 inches
• Depth: 21.02 inches
• Liquid Line: 3/8 inch
• Suction Line: 3/4 inch
• Weight: 60 pounds
• Warranty: 10 Years with Online Registration
• Certification: AHRI Certified

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-3036ACL-17
