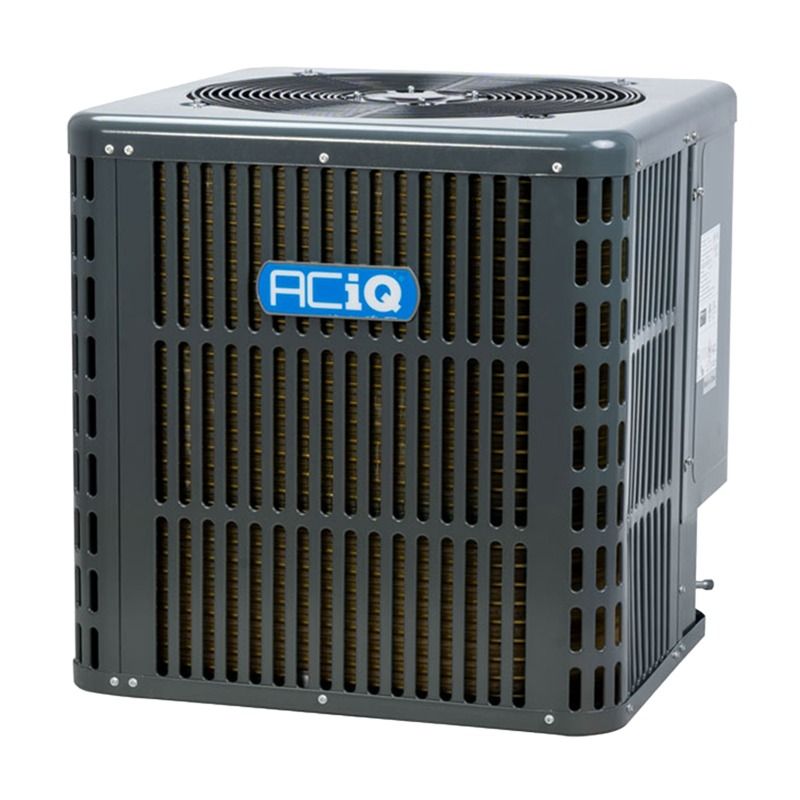

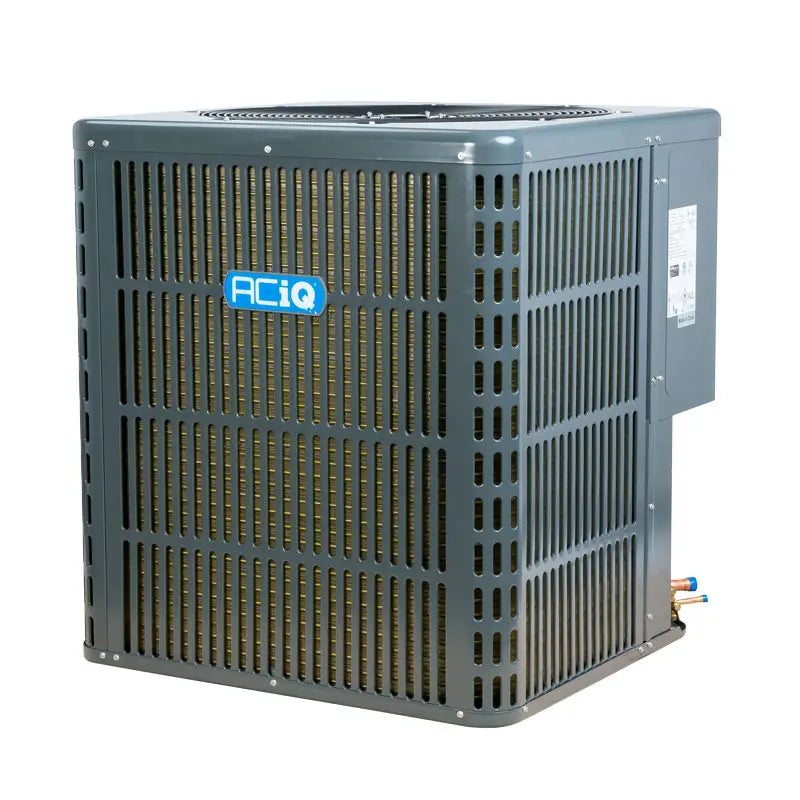

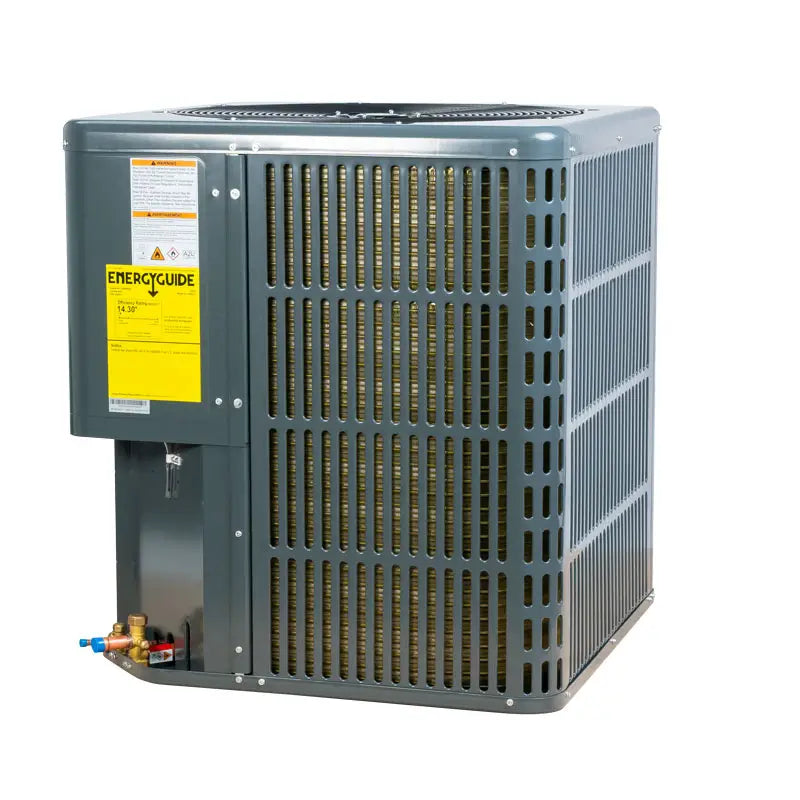

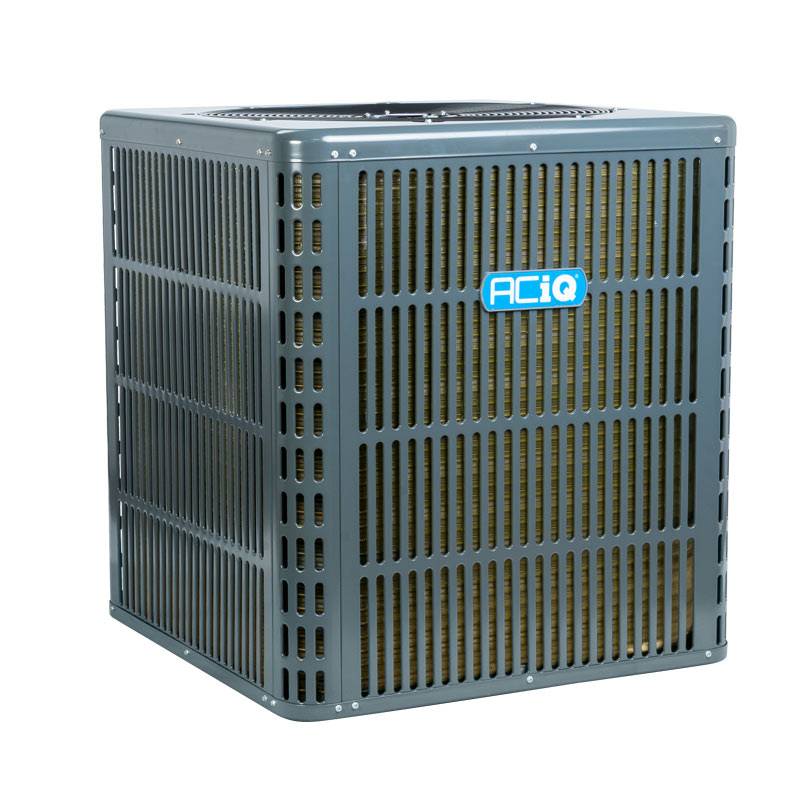

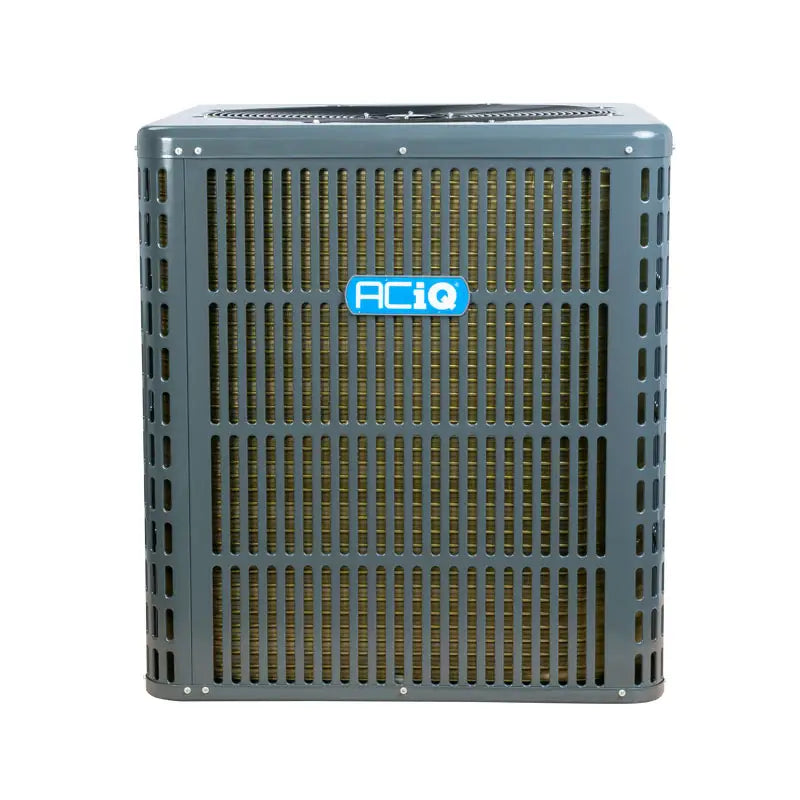

Aciq AC-I-24AC14 Central air conditioner condenser 24,000 BTU (2 Ton)

Product Description

The Aciq AC-I-24AC14 is a 2 ton (24,000 BTU) outdoor central air conditioner condenser rated 14.3 SEER2 and pre-charged with R32A refrigerant. It employs a rotary compressor with single-stage operation and requires a 208–230 V, 1 phase, 60 Hz electrical supply. The top-discharge cabinet is corrosion-resistant, offers TXV support for A-coils, and has a measured outdoor sound level of 58 dB(A) for residential use.

• 2 ton (24,000 BTU) capacity with 14.3 SEER2 efficiency and 11.7 EER2
• Rotary compressor, single-stage operation; electrical: 208–230 V / 1 Phase / 60 Hz
• Pre-charged with R32A refrigerant (52.91 oz.), corrosion-resistant top-discharge cabinet, 58 dB(A) sound level

Product Highlights

Outdoor top-discharge condenser for residential central air systems; TXV support for A-coils.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14

Technical Specifications

• Brand: Aciq
• Model: AC-I-24AC14
• Tonnage: 2 Ton
• Cooling Capacity: 24,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Compressor Type: Rotary
• Condenser Stages: Single stage
• Refrigerant: R32A
• Refrigerant Charge: 52.91 oz.
• Pre-charged: Yes
• Input Voltage: 208-230 V / 1 Phase / 60 Hz
• Max Breaker Size: 20 Amps
• Min Breaker Size: 13 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 23.62" x 23.62" x 25.00"
• Coil Control: TXV-controlled A-coil support
• Mounting Type: Outdoor top-discharge
