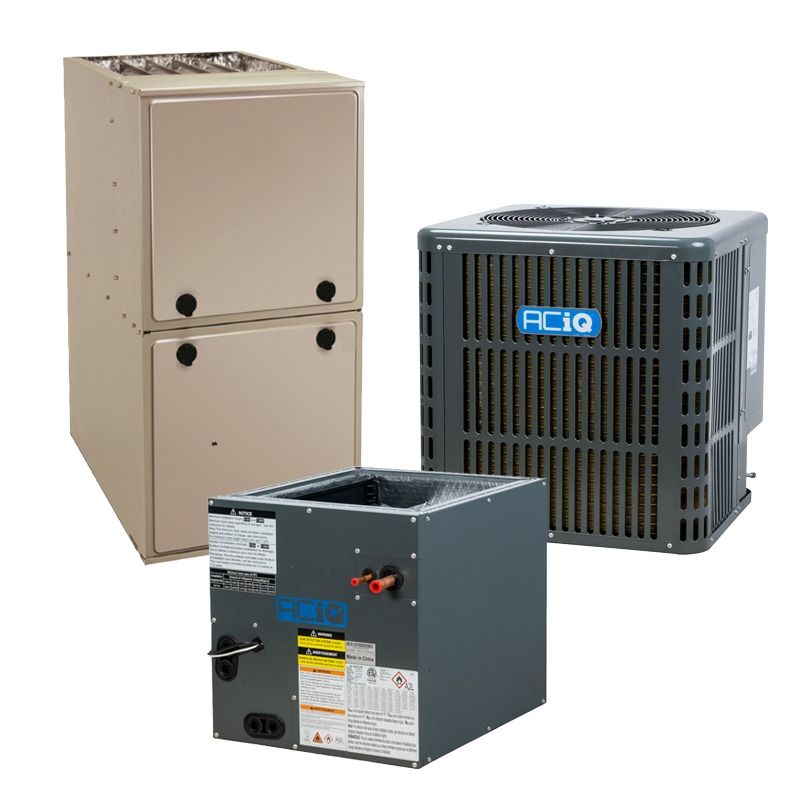

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / R92MSN0601714A 2 Ton 14.3 SEER2 92% AFUE 60,000 BTU Furnace and AC System (Multi-Positional)

Product Description

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / R92MSN0601714A is a matched HVAC package combining a 2 ton 14.3 SEER2 R32 condenser, a 60,000 BTU 92% AFUE single-stage gas furnace, and a multi-positional cased A-coil with factory-installed TXV. The system supports upflow, downflow, or horizontal coil placement, uses R32 refrigerant with leak mitigation, and specifies electrical and venting requirements for each component.

• Condenser pre-charged for R32 refrigerant; 2 ton capacity, 14.3 SEER2, rotary compressor, ~58 dBA sound level
• Furnace: 60,000 BTU, 92% AFUE, single-stage natural gas, multi-speed ECM blower, silicon nitride hot surface ignitor, requires plastic/PVC flue
• Evaporator coil: cased multi-positional A-coil, all-aluminum construction, factory-installed TXV, includes leak mitigation kit for R32

Product Highlights

Matched 2 ton R32 system: 14.3 SEER2 condenser, 92% AFUE 60,000 BTU furnace, multi-positional A-coil with TXV and R32 compatibility

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / R92MSN0601714A

Technical Specifications

• Brand: Aciq
• MPN: AC-I-24AC14 / AC-I-1824ACL-17 / R92MSN0601714A
• System type: Matched condenser, furnace, and evaporator coil
• Condenser model: AC-I-24AC14
• Condenser cooling capacity: 24,000 BTU
• Condenser tonnage: 2 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser sound level: 58 dBA
• Condenser refrigerant: R32 (A2L)
• Condenser compressor type: Rotary
• Condenser electrical (input voltage): 208/230V 1 Phase 60 Hz
• Condenser breaker requirements: 20 Amp circuit recommended (verify local code and unit data plate)
• Furnace model: R92MSN0601714A
• Furnace heating capacity: 60,000 BTU
• Furnace AFUE: 92%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Multi-speed ECM
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace exhaust flue requirement: Plastic / PVC
• Furnace electrical (input voltage): 115V 1 Phase 60 Hz
• Furnace burner stages: Single
• Evaporator coil model: AC-I-1824ACL-17
• Coil tonnage range: 1.5 to 2 Ton
• Coil configuration: Multi-positional cased A-coil
• Coil refrigerant compatibility: R32
• Coil features: All-aluminum construction, factory-installed TXV, leak mitigation kit for R32
• Furnace weight: 136.00 lbs
• Condenser weight: 126.00 lbs
• Coil weight: 43.00 lbs
• Refrigerant charge: Condenser contains 52.91 oz. R32
• Notes on refrigerant: R32 is an A2L refrigerant and requires leak detection and pairing with compatible indoor equipment per product notice
