Aciq AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0401712A 2 Ton 14.3 SEER2 40,000 BTU furnace and AC system (Multi-Positional)

Product Description

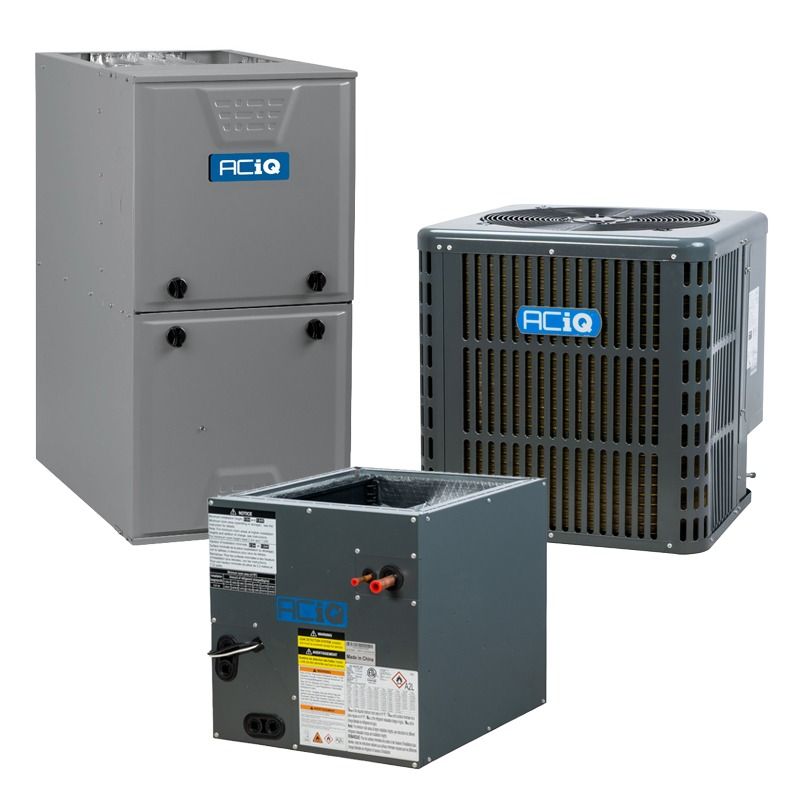

ACiQ AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0401712A is a matched central HVAC system combining a 2-ton 14.3 SEER2 R32 condenser, a 40,000 BTU 96% AFUE multi-positional gas furnace, and a 1.5–2 ton cased multi-positional evaporator coil. The system is pre-charged with R32 refrigerant, supports upflow/downflow/horizontal installation, and supplies forced-air heating with a multi-speed ECM blower rated up to 1010 CFM.

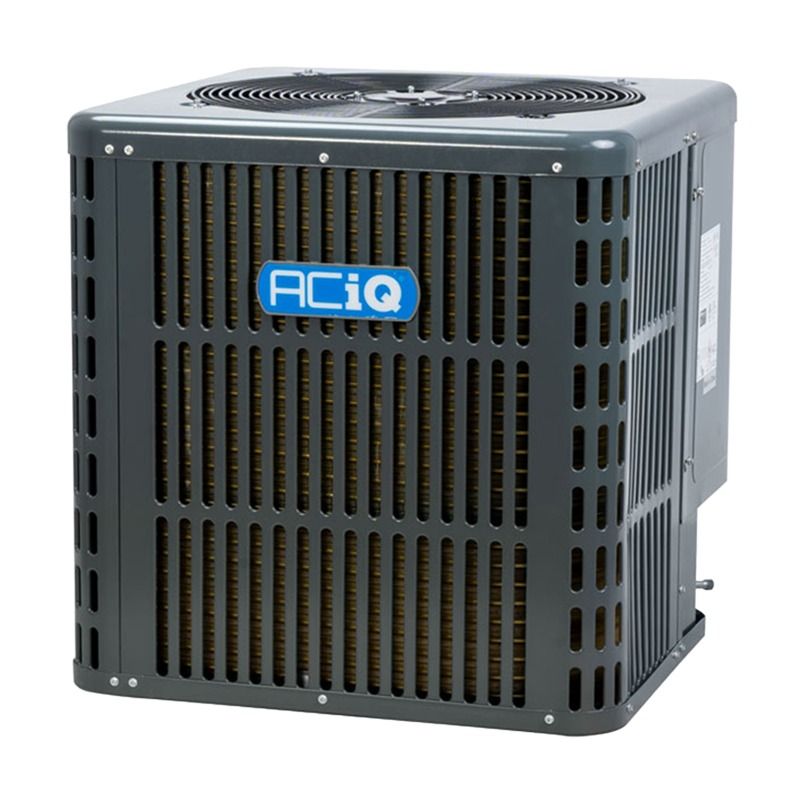

• Condenser: 2 Ton (24,000 BTU), 14.3 SEER2, rotary compressor, pre-charged for R32, 208/230V 1Ph electrical

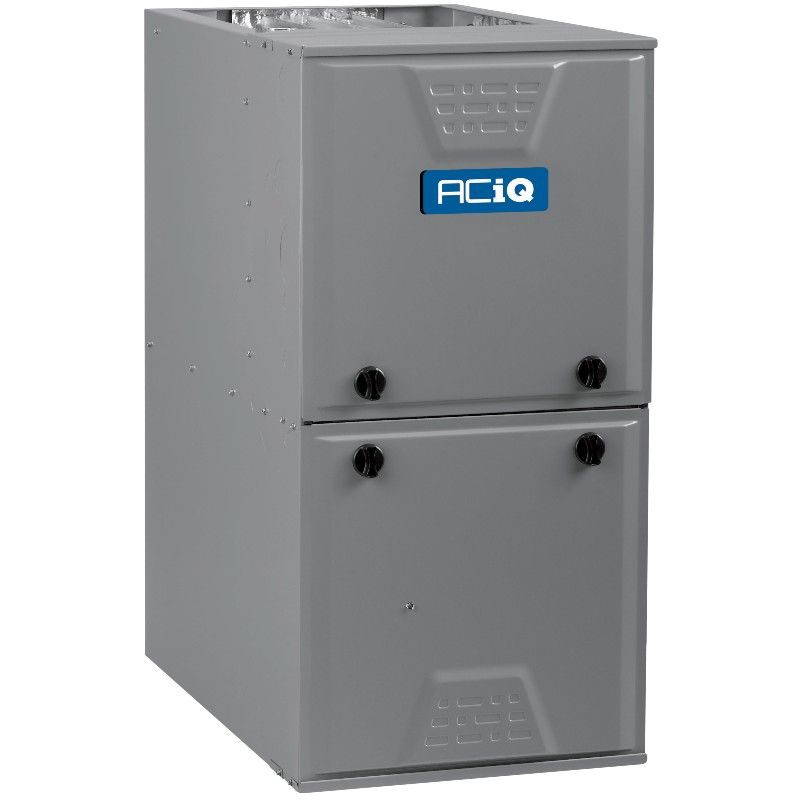

• Furnace: 40,000 BTU input, 96% AFUE, single-stage burner, multi-speed ECM blower, 120V power, field-convertible to propane

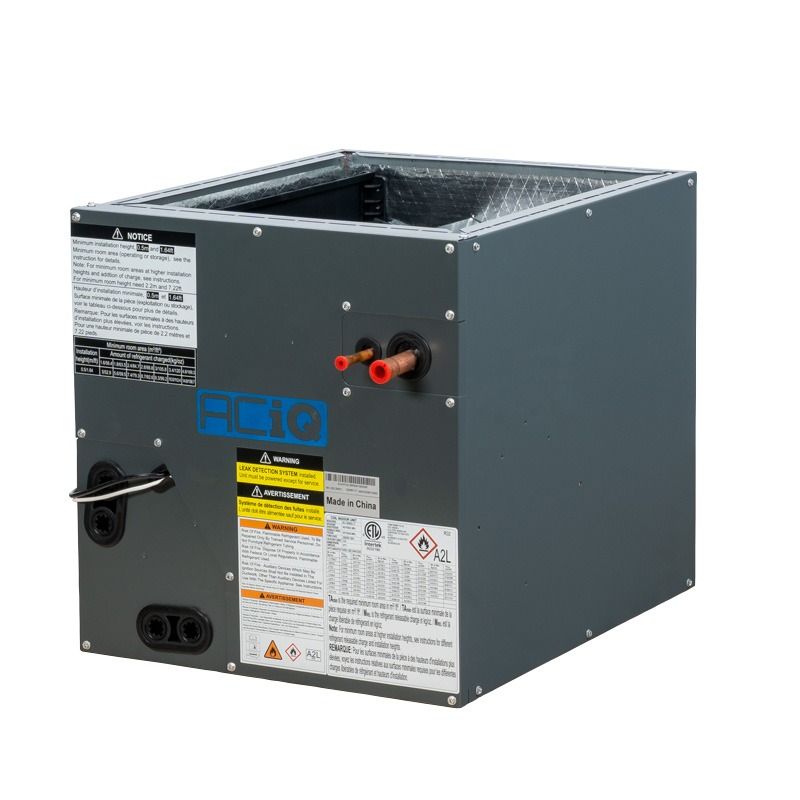

• Evaporator coil: cased A-coil, multi-positional, compatible with 1.5–2 Ton systems, 3/8" liquid and 3/4" suction connections

Product Highlights

Matched R32-charged 2-ton condenser, 40,000 BTU 96% AFUE multi-positional furnace, and 1.5–2 ton cased evaporator coil with multi-speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0401712A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0401712A
• System Cooling Capacity: 24,000 BTU (2 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant Type: R32 (A2L, pre-charged)
• Condenser Sound Level: 58 dBA (approx.)
• Condenser Compressor Type: Rotary
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size Min: 13 Amps
• Condenser Breaker Size Max: 20 Amps
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Refrigerant Charge: 52.91 oz
• Condenser Dimensions: Height 25" x Width 23.62" x Depth 23.62"
• Condenser Weight: 126 lb
• Furnace Input BTU: 40,000 BTU
• Furnace AFUE: 96%
• Furnace Output BTU: 38,400 BTU (estimated from 96% AFUE)
• Furnace Configuration: Multi-positional (upflow / downflow / horizontal)
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 1010
• Furnace Electrical: 120V 1 Phase 60 Hz
• Furnace Burner Stages: Single
• Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Exhaust Flue Requirement: Plastic / PVC (condensing furnace)
• Furnace AHRI Certificate: 213148758
• Evaporator Coil SKU: AC-I-1824ACL-17
• Coil Configuration: Multi-positional, cased A-coil
• Coil Tonnage Compatibility: 1.5 to 2 Ton
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Cabinet Width: 17.5"
• Coil Dimensions: Height 18" x Width 17.5" x Depth 21.02"
• Certifications: AHRI certificate 213148758; Furnace ENERGY STAR (as stated)
