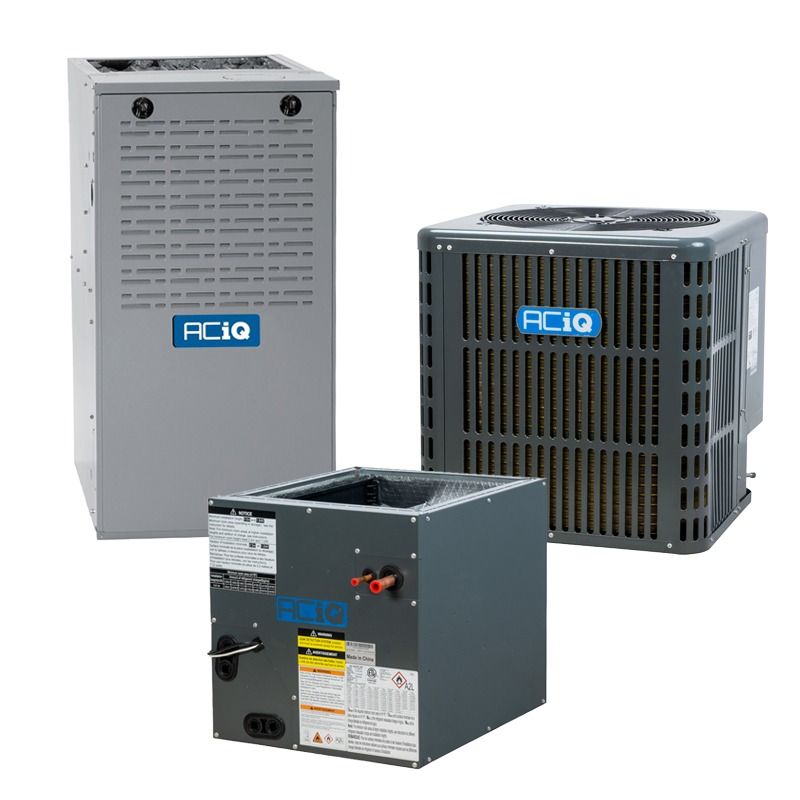

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0901714A 2 Ton 14.3 SEER2 88,000 BTU Furnace and AC System (Multi-Positional)

Product Description

The ACiQ AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0901714A is a matched HVAC system that combines a 2 ton 14.3 SEER2 R32 outdoor condenser, an 88,000 BTU 80% AFUE multi-positional gas furnace, and a 1.5–2 ton cased evaporator coil. The condenser is pre-charged for R32 with a rotary compressor; the furnace is single-stage with a multi-speed ECM blower and direct ignition; the coil includes a factory-installed TXV and all-aluminum construction.

• Condenser: 24,000 BTU, SEER2 14.3, R32 refrigerant, rotary compressor, ~58 dBA sound level
• Furnace: 88,000 BTU, 80% AFUE, multi-positional, 115 V 1-phase 60 Hz, multi-speed ECM blower, direct ignition
• Coil: cased A-coil, compatible with 1.5–2 ton systems, factory TXV, 3/8" liquid and 3/4" suction line connections

Product Highlights

Matched 2 ton R32 system with multi-positional 88,000 BTU furnace, cased A-coil with TXV, and condenser pre-charged for R32.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0901714A

Technical Specifications

• System Components: Condenser (AC-I-24AC14), Evaporator Coil (AC-I-1824ACL-17), Furnace (N80MSN0901714A)
• Condenser Model: AC-I-24AC14
• Condenser Cooling Capacity: 24,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 52.91 oz.
• Condenser Compressor Type: Rotary
• Condenser Stages: Single stage
• Condenser Sound Level: ~58 dBA
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 13 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Furnace Model: N80MSN0901714A
• Furnace Heating Capacity: 88,000 BTU
• Furnace AFUE: 80%
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Maximum CFM: 1210
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical / Input Voltage: 115 V, 1 Phase, 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Exhaust Flue Requirement: Metal
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Furnace Weight: 131 lbs
• Furnace AHRI Certificate Number: 213146139
• Coil Model: AC-I-1824ACL-17
• Coil Type / Style: A-Coil (cased), multi-positional
• Coil Compatibility (Tonnage): 1.5 to 2 Ton
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil Weight: 43 lbs
• Coil Features: Factory-installed TXV, all-aluminum construction
