Aciq AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0451714A 2 Ton 14.3 SEER2 80% AFUE Furnace and AC System (Multi-Positional) Replaces N80ESN0451712A

Product Description

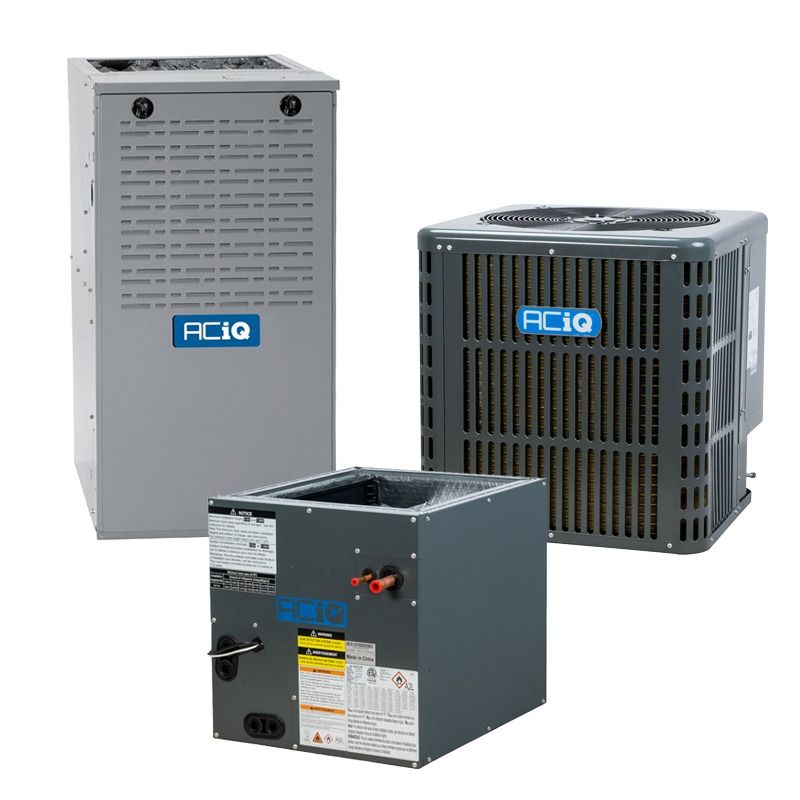

ACiQ AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0451714A is a 2 ton split heating and cooling system combining a 14.3 SEER2 R32 outdoor condenser, a 44,000 BTU input 80% AFUE multi-positional furnace, and a 1.5–2 ton 17.5" cased evaporator coil with factory-installed TXV. The condenser is pre-charged with 52.91 oz R32 and operates on 208/230V 1 phase; the furnace uses 115V with a multi-speed ECM blower and silicon nitride hot surface ignition.

• Condenser: 2 ton cooling capacity, 14.3 SEER2, 11.7 EER2, rotary compressor, pre-charged R32 (52.91 oz), ~58 dBA, 208/230V 1 phase
• Furnace: 44,000 BTU input (35,200 BTU output), 80% AFUE, multi-positional (upflow/downflow/horizontal), multi-speed ECM blower, 115V, direct silicon nitride ignition
• Evaporator coil: 1.5–2 ton cased coil, 17.5" width, all-aluminum construction, factory-installed TXV; compatibility notes include R32 leak mitigation kit and specified metal flue exhaust

Product Highlights

2 ton R32 split system with 14.3 SEER2 condenser, 44,000 BTU 80% AFUE multi-positional furnace, 17.5" cased evaporator coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0451714A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0451714A
• Product ID: 225292
• System Cooling Capacity: 24,000 BTU (2 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant: R32
• Refrigerant Charge: 52.91 oz
• Condenser Sound Level: 58 dBA
• Condenser Compressor Type: Rotary
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 20 Amps
• Furnace Heating Capacity (Input): 44,000 BTU
• Furnace Heating Capacity (Output): 35,200 BTU
• Furnace AFUE: 80%
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Configuration: Multi-positional (Upflow / Downflow / Horizontal)
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Evaporator Coil Tonnage: 1.5 to 2 Ton
• Evaporator Coil Width: 17.5 inches
• Evaporator Coil Construction: All-aluminum, cased, factory-installed TXV
• Exhaust Flue Requirement: Metal
• Number of Compressors: 1
• Number of Fan Motors: 1
• Cooling Stage: Single-stage
• Heating Stage: Single-stage
• Power Phase: 1 Phase
• Country of Origin: China
• Replacement / Equivalent SKU: N80MSN0451714A replaces N80ESN0451712A; Carrier equivalent: 58SB0A045E17--12
