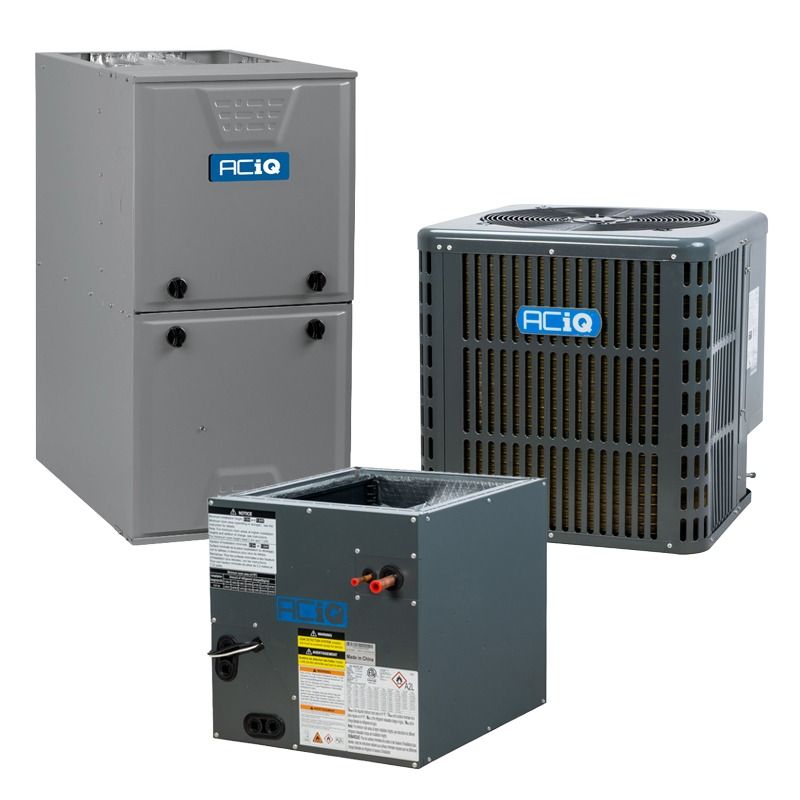

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0801716 2 Ton 14.3 SEER2 96% AFUE 80,000 BTU Multi-Positional (Replacement MPN 59TP6B080V17)

Product Description

The AciQ AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0801716 is a bundled HVAC system that includes a 2 ton 14.3 SEER2 R32 condenser, a 96% AFUE 80,000 BTU two-stage gas furnace with variable speed blower, and a 1.5–2 ton multi-positional evaporator coil. The condenser is pre-charged with R32 refrigerant and rated at approximately 58 dBA. The system supports upflow, downflow, and horizontal installations and requires a plastic/PVC flue for the high-efficiency furnace.

• Condenser: 24,000 BTU (2 ton), 14.3 SEER2, 11.7 EER2, pre-charged R32, rotary compressor, approx. 58 dBA
• Furnace: 80,000 BTU, 96% AFUE, two-stage burner, variable speed blower, 120 V 1 phase 60 Hz, multi-positional
• Evaporator Coil: 1.5–2 ton multi-positional cased coil (17.5 in cabinet width), compatible with R32 and includes leak mitigation kit

Product Highlights

Bundled 2-ton R32 condenser, 96% AFUE two-stage furnace with variable speed blower, and multi-positional 1.5–2 ton evaporator coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0801716

Technical Specifications

• Brand: AciQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0801716
• Bundle Components: AC-I-24AC14 condenser, AC-I-1824ACL-17 evaporator coil, G96VTN0801716 furnace
• Furnace Heating Capacity: 80,000 BTU
• Furnace Efficiency (AFUE): 96%
• Furnace Blower Motor: Variable speed
• Furnace Maximum CFM: 1655
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Burner Stages: Two
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical (Voltage): 120 V, 1 phase, 60 Hz
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace Weight: 147 lb
• Condenser Cooling Capacity: 24,000 BTU (2 ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Decibel Level: Approximately 58 dBA
• Condenser Compressor Type: Rotary
• Condenser Electrical (Voltage): 208/230 V, 1 phase, 60 Hz
• Condenser Breaker Size (Minimum): 13 Amps
• Condenser Breaker Size (Maximum): 20 Amps
• Condenser Dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Condenser Weight: 126 lb
• Coil Tonnage Range: 1.5 to 2 ton
• Coil Configuration: Multi-positional (upflow/downflow/horizontal)
• Coil Cabinet Width: 17.5 in
• Coil Dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Coil Weight: 43 lb
• Coil Refrigerant Compatibility: R32 (includes leak mitigation control kit)
• Refrigerant Charge (Condenser): 52.91 oz
• AHRI Certificate Number (Furnace): 213148554
• Exhaust Flue Requirement (Furnace): Plastic / PVC
• Equivalent Models / Replacement MPNs: Carrier 59TP6B080V17--16, Tempstar F96VTN0801716A, Bryant 926TB48080V17
