Description

Product Description

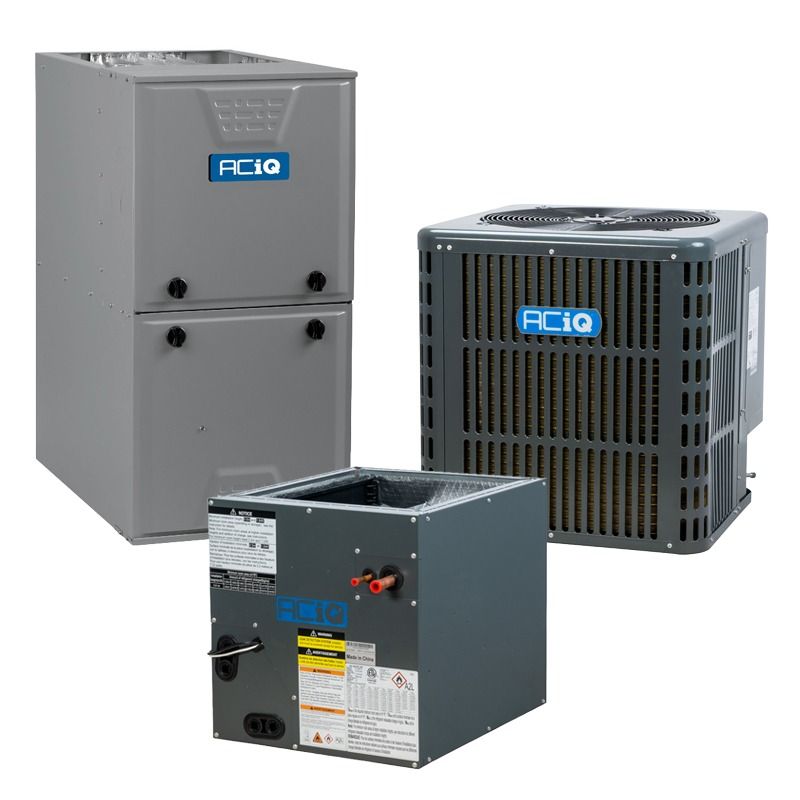

ACiQ AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0601716 is a matched 2 ton HVAC system that combines a 14.3 SEER2 R32 outdoor condenser, a 60,000 BTU 96% AFUE multi-positional two-stage gas furnace, and a 1.5-2 ton 17.5 inch cased evaporator coil. The condenser is pre-charged with 52.91 oz R32, requires 208/230V 1 phase 60 Hz power, and is rated about 58 dBA. The furnace uses a variable speed blower and is field convertible to propane.

  • Matched system: outdoor condenser, 1.5-2 ton cased evaporator coil, and 60,000 BTU two-stage furnace
  • Condenser: 14.3 SEER2, R32 refrigerant (52.91 oz), ~58 dBA, 208/230V 1Ph 60 Hz, max 20A breaker
  • Furnace: 60,000 BTU input, 96% AFUE, variable speed blower, two-stage burner, multi-positional and field-convertible to propane

Product Highlights

Matched 2-ton R32 HVAC system with 14.3 SEER2 condenser, 96% AFUE two-stage furnace, multi-positional installation

Product Information

Standard Information

  • Brand: ACIQ
  • Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0601716

Technical Specifications

  • Brand: ACiQ
  • MPN: AC-I-24AC14 / AC-I-1824ACL-17 / G96VTN0601716
  • System Cooling Capacity: 2 Ton (24,000 BTU)
  • Condenser SEER2: 14.3
  • Condenser EER2: 11.7
  • Condenser Refrigerant: R32
  • Condenser Refrigerant Charge: 52.91 oz
  • Condenser Sound Level: 58 dBA (approx.)
  • Condenser Electrical: 208/230V 1 Phase 60 Hz
  • Condenser Max Breaker: 20 Amps (max)
  • Condenser Liquid Valve Size: 3/8 inch
  • Condenser Suction Valve Size: 3/4 inch
  • Coil Lines: Liquid 3/8 inch / Suction 3/4 inch
  • Coil Configuration: Multi-positional cased evaporator coil (1.5-2 Ton)
  • Coil Cabinet Width: 17.5 inches
  • Furnace Input BTU: 60,000 BTU (input)
  • Furnace AFUE: 96%
  • Furnace Blower Motor: Variable speed
  • Furnace Burner Stages: Two-stage
  • Furnace Fuel Type: Natural Gas (field-convertible to Propane with kit)
  • Furnace Electrical: 120V 1 Phase 60 Hz
  • Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
  • Exhaust Flue Requirement: Plastic / PVC
  • AHRI Certificate Number: 213148548
  • Included Items: Outdoor condenser, evaporator coil, 60,000 BTU furnace
  • Equivalent Models: Carrier 59TP6B060V17--14; Tempstar F96VTN0601714A; Bryant 926TB42060V17
  • Requires: Compatible indoor equipment for condenser; plastic/PVC flue venting for 96% furnaces; professional installation
