Aciq AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0901716 2 Ton 14.3 SEER2 80% AFUE 80,000 BTU Furnace and AC System (Multi-Positional)

Product Description

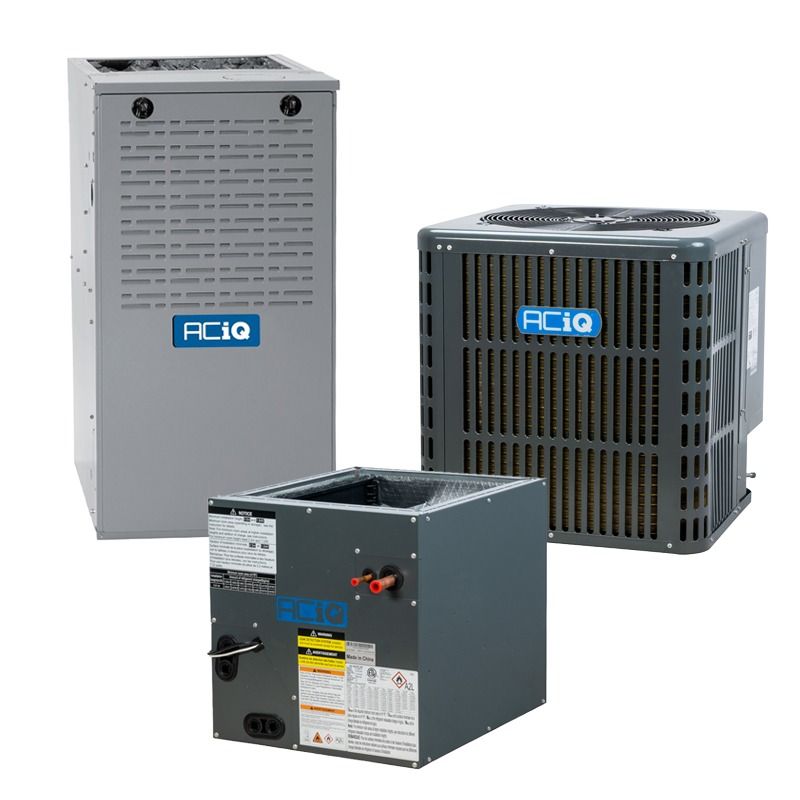

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0901716 is a packaged HVAC system combining a 2-ton 14.3 SEER2 R32 condenser, a 1.5–2 ton cased evaporator coil, and an 80% AFUE two-stage gas furnace. The condenser is pre-charged with R32 and uses a rotary compressor with a 58 dBA outdoor sound rating. The furnace features a variable speed ECM blower, two-stage burner, and silicon nitride hot surface ignitor for direct ignition; the coil includes a factory-installed TXV and supports multi-positional installation.

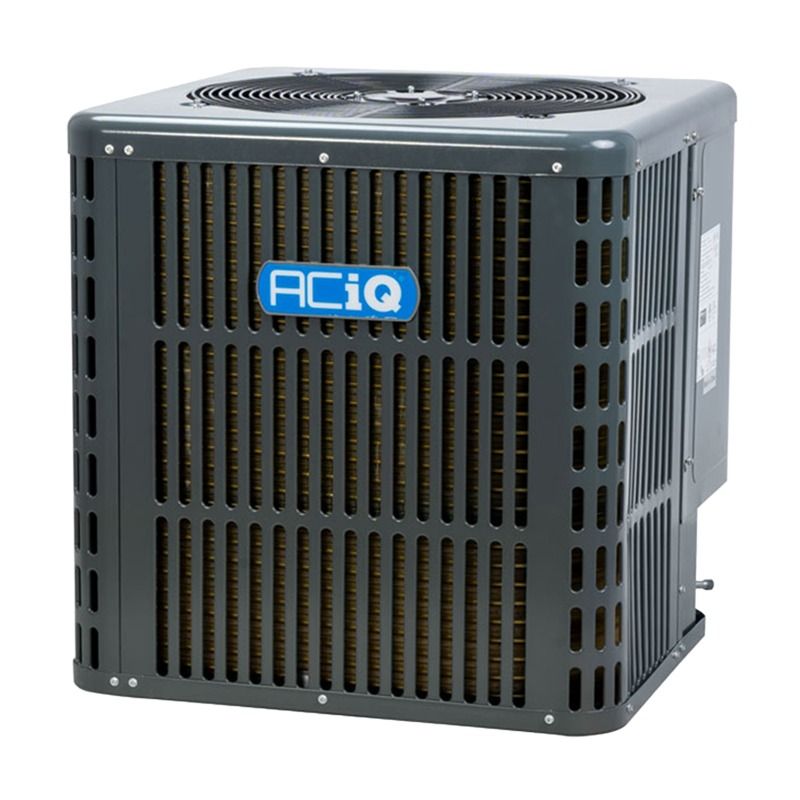

• Condenser: 24,000 BTU (2 ton), 14.3 SEER2, R32 refrigerant, rotary compressor, 52.91 oz charge, ~58 dBA

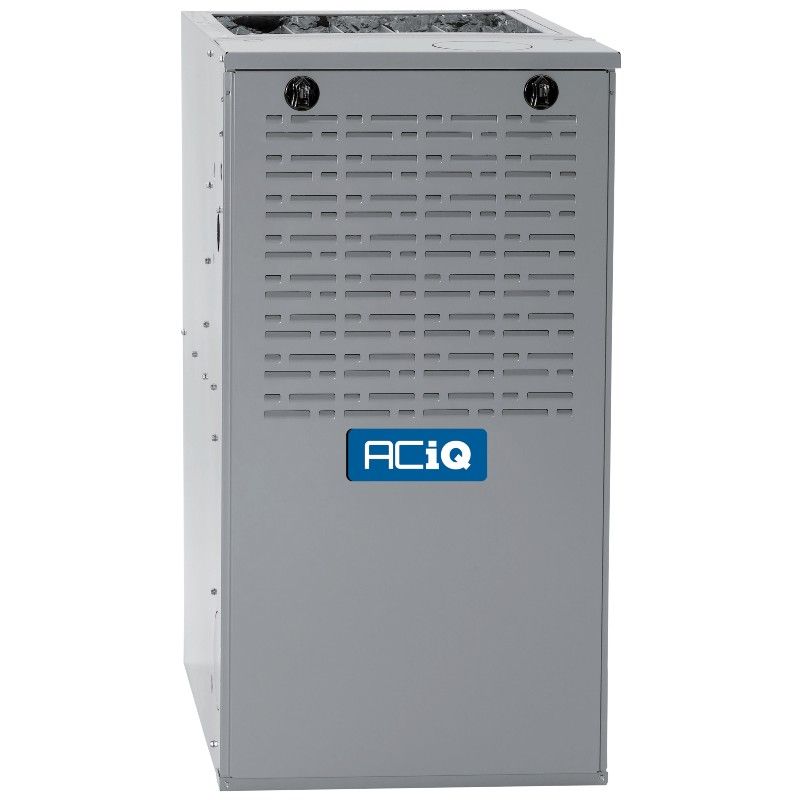

• Furnace: 88,000 BTU input / ~71,000 BTU output, 80% AFUE, two-stage burner, variable speed ECM blower, direct ignition with silicon nitride ignitor

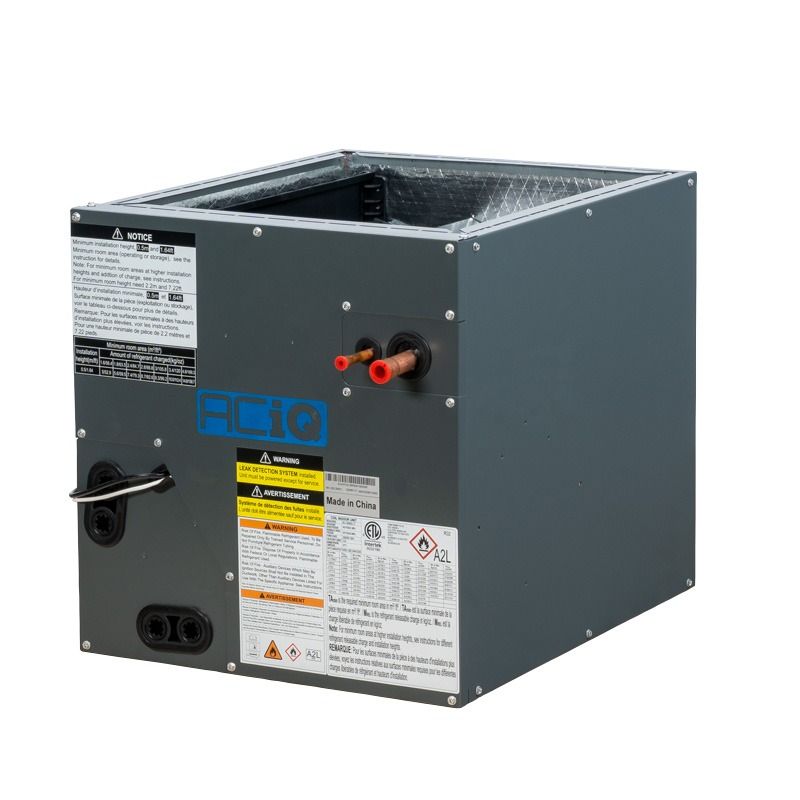

• Evaporator coil: multi-positional cased A-coil (17.5" cabinet width), compatible with 1.5–2 ton systems, factory-installed TXV; multi-positional installation (upflow/downflow/horizontal)

Product Highlights

2 ton R32 14.3 SEER2 condenser paired with an 80% AFUE two-stage gas furnace and multi-positional 1.5–2 ton cased coil; factory TXV and variable speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0901716

Technical Specifications

• Brand: Aciq
• MPN: AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0901716
• Cooling Capacity: 24,000 BTU (2 Ton)
• SEER2 Rating: 14.3
• EER2 Rating: 11.7
• Refrigerant Type: R32 (A2L refrigerant)
• Condenser Refrigerant Charge: 52.91 oz
• Condenser Sound Level: 58 dBA
• Condenser Compressor Type: Rotary
• Condenser Stages: Single stage
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size Min: 13 Amps
• Condenser Breaker Size Max: 20 Amps
• Furnace Input BTU: 88,000 BTU
• Furnace Output BTU: 71,000 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Fuel Type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Blower Motor: Variable speed ECM
• Furnace Maximum CFM: 1595
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Exhaust Flue Requirement: Metal
• Coil Configuration: Multi-positional cased A-coil
• Coil Tonnage Compatibility: 1.5 to 2 Ton
• Coil Cabinet Width: 17.5"
• Coil Pre-Installed Component: TXV (Thermal Expansion Valve)
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Construction Material: All-aluminum (as specified)
• Installation Orientation: Upflow, Downflow, Horizontal (multi-positional)
• AHRI Certificate Number: 213148663
• Compliance: California Low NOx compliant (per manufacturer)
