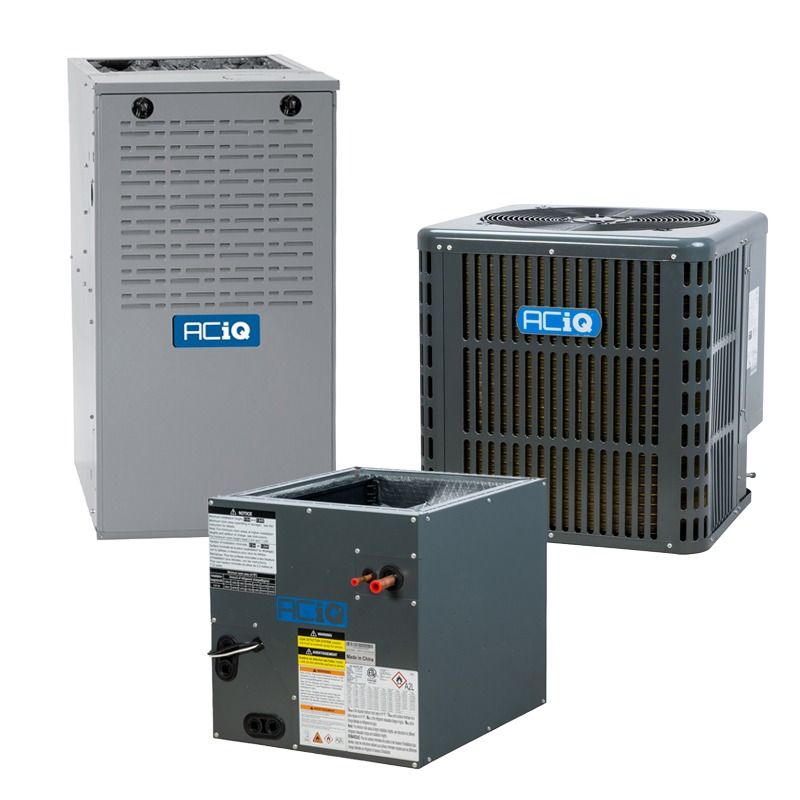

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0451712 2 Ton 14.3 SEER2 40,000 BTU Furnace & AC System (Multi-positional)

Product Description

The ACIQ AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0451712 is a combined central heating and cooling system that pairs a 14.3 SEER2 R32 condenser, a multi-positional evaporator coil, and an 80% AFUE gas furnace. The condenser is pre-charged with R32 (52.91 oz) and uses a rotary compressor on 208/230 V single-phase power; the furnace includes a variable-speed ECM blower, two-stage burner, and 115 V electrical supply. The coil is all-aluminum with a factory-installed TXV and supports upflow, downflow, and horizontal installations.

• Condenser: 24,000 BTU (2 ton), 14.3 SEER2, rotary compressor, pre-charged R32 (52.91 oz), approx. 58 dBA
• Furnace: 80% AFUE, 44,000 BTU input (approx. 35,000 BTU output), variable-speed ECM blower, two-stage burner, 115 V
• Evaporator coil: multi-positional all-aluminum construction, factory-installed thermal expansion valve, fits 1.5 to 2 ton systems

Product Highlights

Complete 2 ton R32 system with multi-positional coil, variable-speed furnace blower, and extended component warranties

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0451712

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G80CTL0451712
• System Type: Central heating and cooling system (condenser, evaporator coil, furnace)
• Cooling Capacity: 24,000 BTU (2 ton)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 52.91 oz
• Compressor Type: Rotary
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 13 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Condenser Noise Level: Approximately 58 dBA
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace AFUE: 80%
• Furnace Input BTU: 44,000 BTU (input)
• Furnace Output BTU: Approximately 35,000 BTU (output at 80% AFUE)
• Furnace Blower Motor: Variable speed ECM
• Furnace Maximum CFM: 1345
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Electrical: 115 V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Dimensions (H x W x D): 33.33 in x 17.50 in x 29.00 in
• Evaporator Coil Model: AC-I-1824ACL-17
• Coil Configuration: Multi-positional (upflow/downflow/horizontal)
• Coil Material: All-aluminum construction
• Coil Pre-Installed TXV: Yes (factory-installed thermal expansion valve)
• Coil Tonnage Range: 1.5 to 2 ton
• Coil Dimensions (H x W x D): 18.00 in x 17.50 in x 21.02 in
• AHRI Certificate Number (furnace): 213148658
