Aciq AC-I-24AC14 / AC-I-1824ACL-17 2 Ton 14.3 SEER2 Air Conditioner 17.5 in Multi-Positional Cased Coil AC-I-1824ACL-17

Product Description

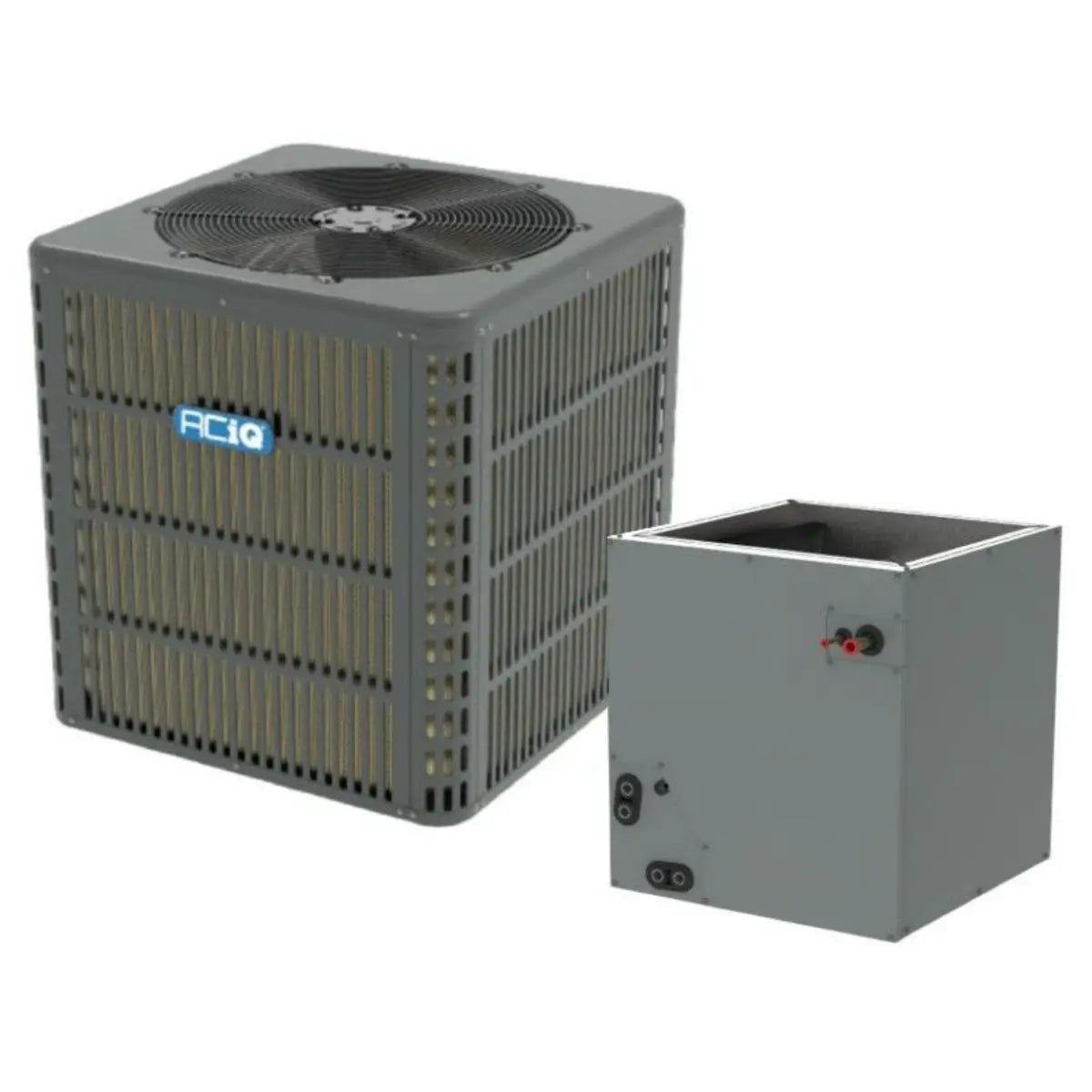

The Aciq AC-I-24AC14 / AC-I-1824ACL-17 is a matched 2 ton outdoor condenser and 17.5 in multi-positional cased evaporator coil. The condenser delivers 24,000 BTU cooling at 14.3 SEER2 with a single-stage rotary compressor pre-charged for R32 refrigerant and requires 208/230V 1 phase 60 Hz power. The 17.5 in all-aluminum coil supports 1.5–2 ton systems, includes a factory-installed TXV and an R32 leak mitigation kit.

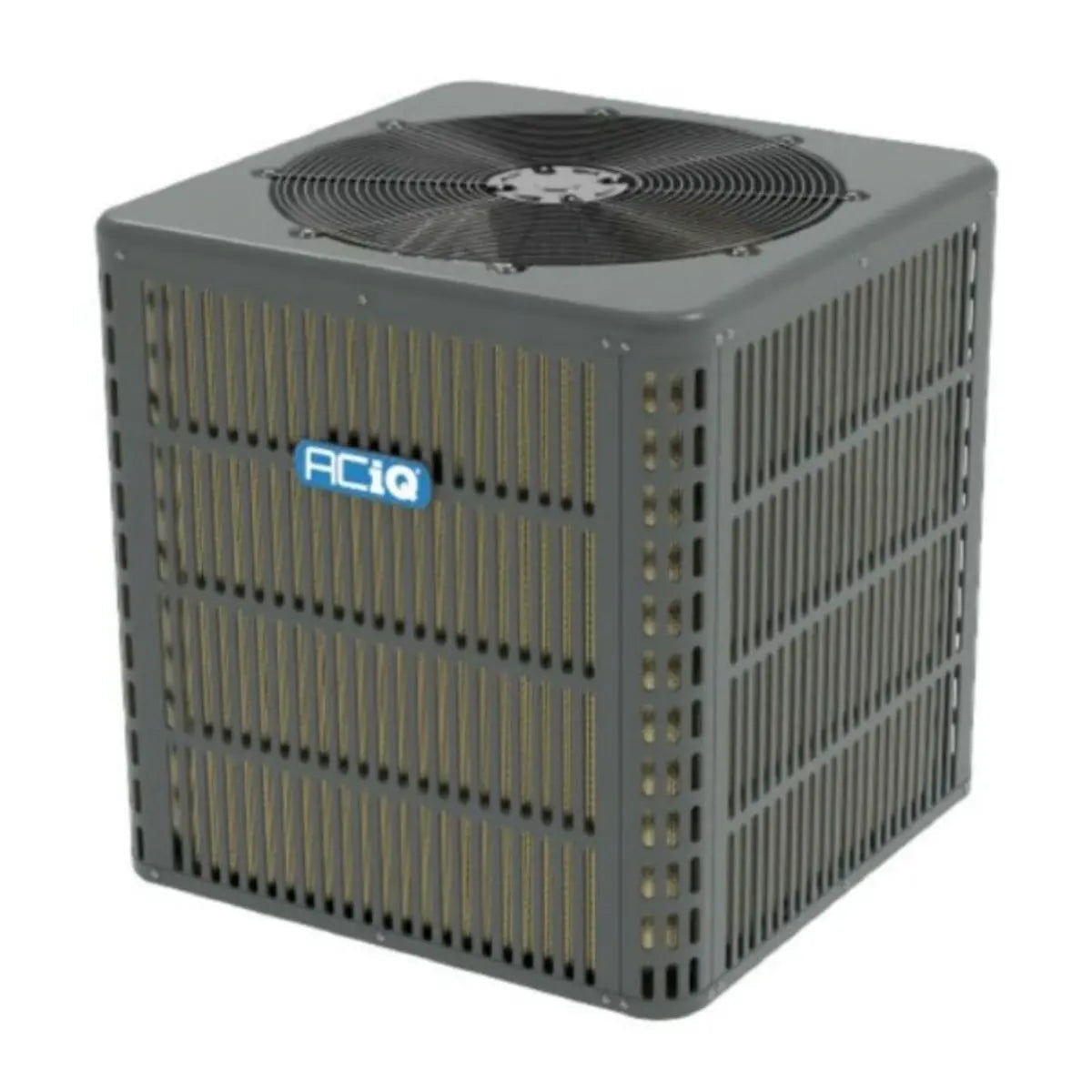

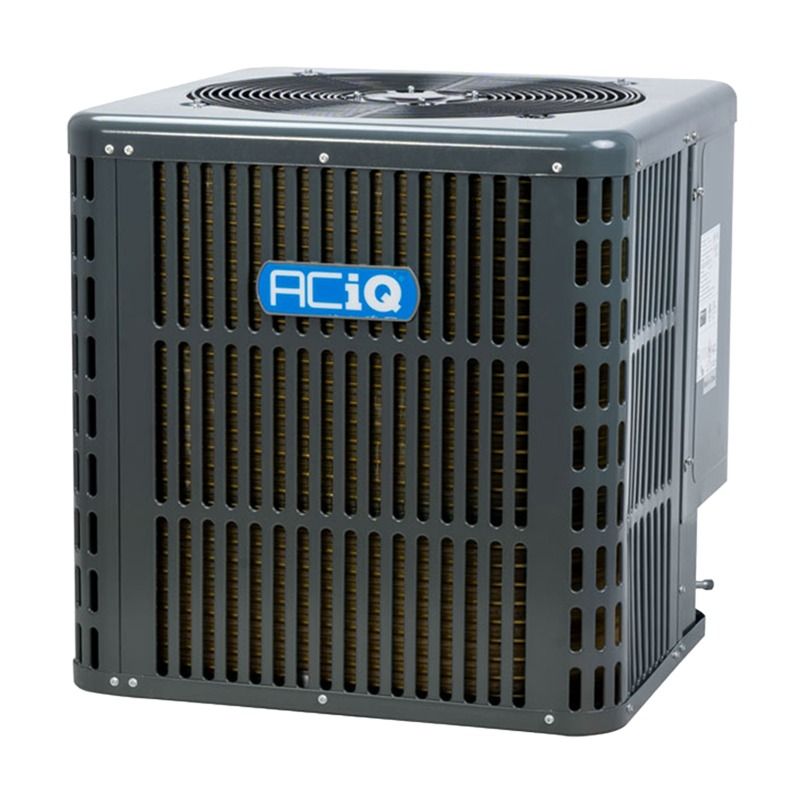

• Condenser: 2 ton (24,000 BTU), 14.3 SEER2, single-stage rotary compressor, pre-charged with R32

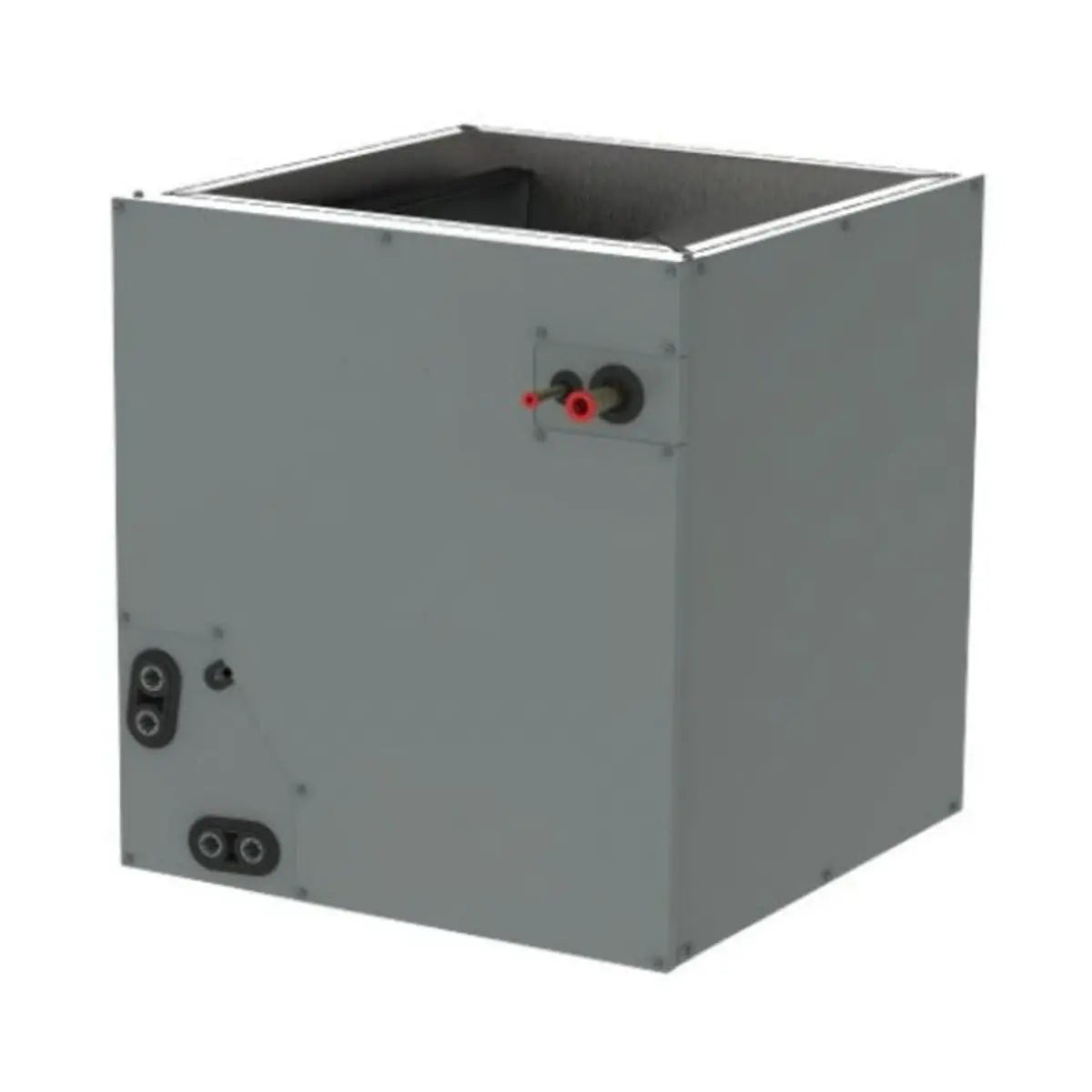

• Evaporator coil: 17.5 in cased, multi-positional (upflow, downflow, horizontal), all-aluminum construction with factory-installed TXV
• Electrical and installation notes: condenser requires 208/230V 1Ø 60 Hz and compatible indoor equipment

Product Highlights

Matched 2 ton condenser and 17.5 in multi-positional all-aluminum cased coil for 1.5–2 ton systems; pre-charged R32 refrigerant; factory TXV and R32 leak mitigation kit.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17
• Condenser SKU: AC-I-24AC14
• Coil SKU: AC-I-1824ACL-17
• Cooling Capacity: 24,000 BTU
• Tonnage (Condenser): 2 Ton
• Tonnage (Coil Range): 1.5 Ton to 2 Ton
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (pre-charged)
• Refrigerant Charge (Condenser): 52.91 oz.
• Compressor Type: Rotary
• Condenser Stages: Single Stage
• Liquid Valve Size: 3/8 in
• Suction Valve Size: 3/4 in
• Input Voltage: 208/230V
• Phase: 1 Phase
• Frequency: 60 Hz
• Max Breaker Size: 20 Amps
• Min Breaker Size: 13 Amps
• Sound Level: 58 dBA
• Condenser Height: 25 in
• Condenser Width: 23.62 in
• Condenser Depth: 23.62 in
• Condenser Weight: 126 lb
• Coil Height: 18 in
• Coil Width: 17.5 in
• Coil Depth: 21.02 in
• Coil Weight: 43 lb
• Coil Configuration: Multi-Positional (upflow, downflow, horizontal)
• Coil Construction: All-aluminum
• Factory-Installed TXV: Yes (coil)
• R32 Leak Mitigation Kit: Included with coil
• Compatibility/Notes: Condenser requires compatible indoor coil or air handler; R32 (A2L) refrigerant requires pairing with R32-capable indoor equipment and leak detection
