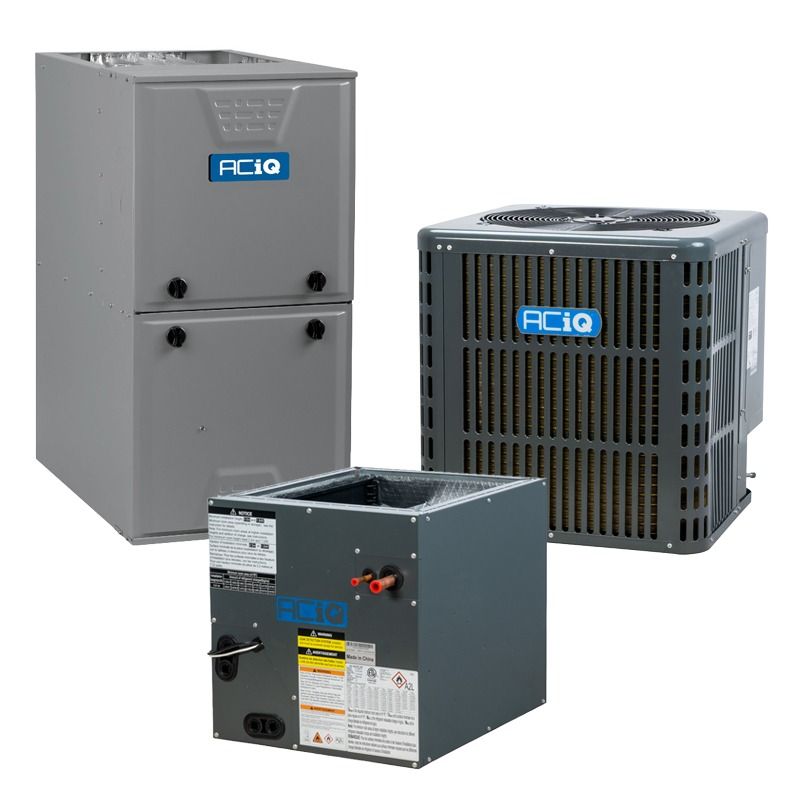

Aciq AC-I-24AC14 2 Ton 14.3 SEER2 96% AFUE 60,000 BTU System (Multi-Positional) AC-I-1824ACL-17 N96MSN0601716A

Product Description

Aciq AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0601716A is a matched HVAC system that pairs a 2 ton 14.3 SEER2 R32 condenser, a 1.5–2 ton multi-positional cased evaporator coil with factory-installed TXV, and a 60,000 BTU 96% AFUE multi-positional gas furnace. The furnace includes an ECM blower, single-stage burner and field-convertible propane option; the condenser is rated for 208/230V 1 Phase 60 Hz and ships pre-charged with R32.

• Condenser: 2 ton, 14.3 SEER2, 11.7 EER2, R32 refrigerant, 52.91 oz charge, 208/230V 1 Phase 60 Hz, approx. 58 dBA
• Furnace: 60,000 BTU, 96% AFUE, single-stage gas burner, ECM blower, multi-positional (upflow/downflow/horizontal), field-convertible to propane
• Evaporator coil: 1.5–2 ton cased A-coil, all-aluminum construction, factory-installed TXV, liquid line 3/8 in, suction line 3/4 in

Product Highlights

Matched 2 ton R32 system with multi-positional furnace and coil; AHRI-rated components.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0601716A

Technical Specifications

• Model / MPN: AC-I-24AC14 / AC-I-1824ACL-17 / N96MSN0601716A
• System components: AC-I-24AC14 condenser, AC-I-1824ACL-17 evaporator coil, N96MSN0601716A furnace
• Condenser SKU: AC-I-24AC14
• Condenser refrigerant: R32
• Condenser refrigerant charge: 52.91 oz
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser cooling BTU: 24,000 BTU
• Condenser tonnage: 2 Ton
• Condenser compressor type: Rotary
• Condenser stages: Single Stage
• Condenser decibel level: 58 dBA (approx.)
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser electrical / Input Voltage: 208/230V, 1 Phase, 60 Hz
• Condenser max breaker size: 20 Amps
• Condenser min breaker size: 13 Amps
• Condenser weight: 126.00 lbs
• Condenser dimensions (H x W x D): 25" x 23.62" x 23.62"
• Coil SKU: AC-I-1824ACL-17
• Coil type / Style: Cased A-coil (evaporator), all-aluminum
• Coil tonnage: 1.5 to 2 Ton
• Coil configuration: Multi-Positional (upflow, downflow, horizontal)
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil refrigerant: R32
• Coil weight: 43.00 lbs
• Furnace SKU: N96MSN0601716A
• Furnace heating BTU: 60,000
• Furnace efficiency / AFUE: 96%
• Furnace blower motor: ECM
• Furnace maximum CFM: 1330
• Furnace configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace burner stages: Single
• Fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace weight: 138.00 lbs
• Furnace dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace AHRI Certificate Number: 213148506
• Furnace energy star: Yes
• AHRI / Certification: AHRI-rated combinations available; coil AHRI certified
• Required accessories / notes: Requires compatible R32 evaporator coil or air handler with leak detection; plastic/PVC flue vent piping required for 96% furnace; professional installation recommended
