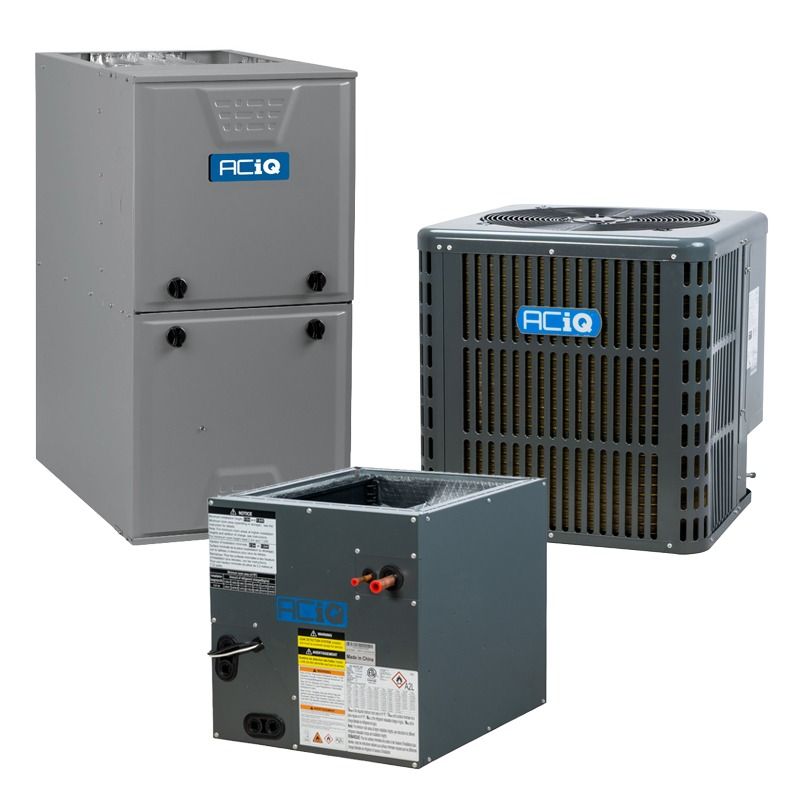

Aciq AC-I-24AC14 2 Ton 14.3 SEER2 96% AFUE 60,000 BTU furnace & AC system (multi-positional) G96CTN0601714

Product Description

The Aciq AC-I-24AC14 / AC-I-1824ACL-17 / G96CTN0601714 is a matched split HVAC system that includes a 2 ton 14.3 SEER2 R32 condenser, a 1.5–2 ton multi-positional all-aluminum evaporator coil, and a 60,000 BTU two-stage 96% AFUE gas furnace. The condenser is pre-charged with 52.91 oz R32 refrigerant and rated at approximately 58 dBA; the furnace features a variable-speed ECM blower and supports upflow, downflow, or horizontal installation.

• Condenser: 2 ton, 14.3 SEER2, R32 pre-charged (52.91 oz), rotary compressor, ~58 dBA, 208/230V 1 phase
• Furnace: 60,000 BTU, 96% AFUE, two-stage gas burner, variable-speed ECM blower, 120V electrical, multi-positional cabinet
• Coil: 1.5–2 ton compatible, all-aluminum construction, factory-installed TXV, multi-positional, AHRI-certifiable when paired correctly

Product Highlights

Matched 2-ton R32 split system with 60,000 BTU two-stage 96% AFUE furnace, pre-charged condenser, and multi-positional all-aluminum evaporator coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / G96CTN0601714
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-24AC14 / AC-I-1824ACL-17 / G96CTN0601714
• System Type: Split system (condenser, evaporator coil, furnace)
• Tonnage: 2 Ton (condenser); coil compatible 1.5 to 2 Ton
• Cooling Capacity: 24,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Precharge: 52.91 oz
• Compressor Type: Rotary
• Condenser Sound Level: Approximately 58 dBA
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Max Breaker: 20 Amps
• Condenser Min Breaker: 13 Amps
• Condenser Dimensions: Height 25", Width 23.62", Depth 23.62"
• Furnace Heating Capacity: 60,000 BTU
• Furnace AFUE: 96%
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Blower Motor: Variable speed, ECM
• Furnace Maximum CFM: 1280
• Furnace Burner Stages: Two
• Furnace Fuel Type: Natural Gas (convertible to propane with optional kit)
• Furnace Dimensions: Height 35", Width 17.5", Depth 29.5"
• Exhaust Flue Requirement: Plastic / PVC
• Coil MPN: AC-I-1824ACL-17
• Coil Material: All-aluminum construction
• Coil Dimensions: Width 17.5", Height 18", Depth 21.02"
• Coil Features: Factory-installed TXV, multi-positional, R32 compatible with leak mitigation kit
• System Configuration: Multi-positional (upflow, downflow, horizontal)
• AHRI Certificate Number: 213148724
• Country of Origin: China
