Aciq AC-I-24AC14 2 Ton 14.3 SEER2 80% AFUE Furnace and AC System Multi-Positional (AC-I-1824ACL-17 / N80MSN0701712A)

Product Description

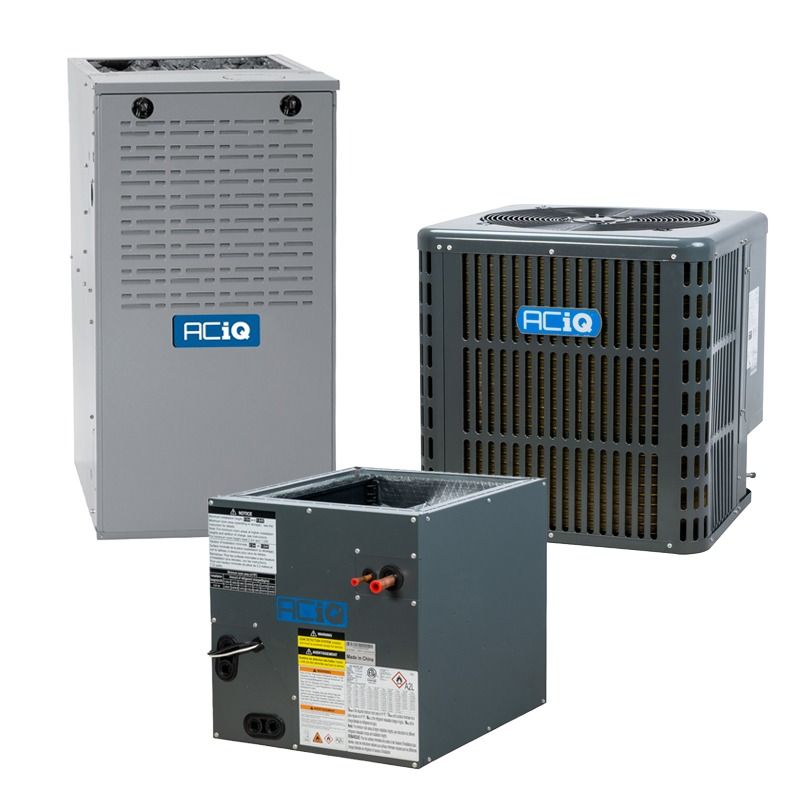

The ACIQ AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0701712A is a matched split system including a 24,000 BTU (2 ton) R32 outdoor condenser, a 1.5–2 ton multi-positional cased evaporator coil, and a 66,000 BTU 80% AFUE multi-positional gas furnace. The condenser is pre-charged with R32 refrigerant and rated at 14.3 SEER2; the coil features a factory-installed TXV and the furnace uses a multi-speed ECM blower with direct ignition.

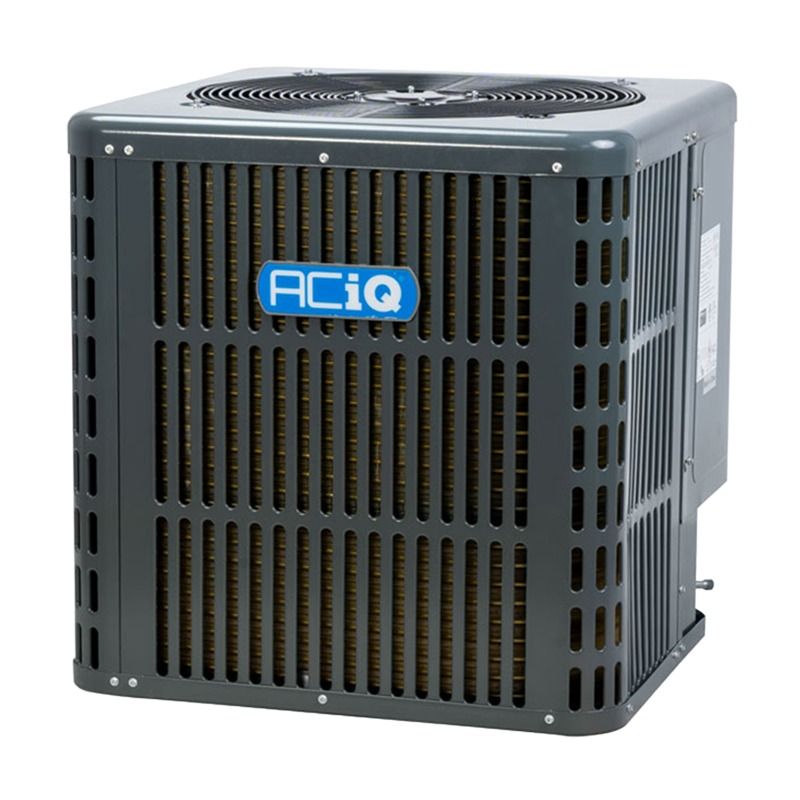

• Condenser: 24,000 BTU (2 ton), 14.3 SEER2, rotary compressor, pre-charged with R32 (52.91 oz), 208/230V 1Ø

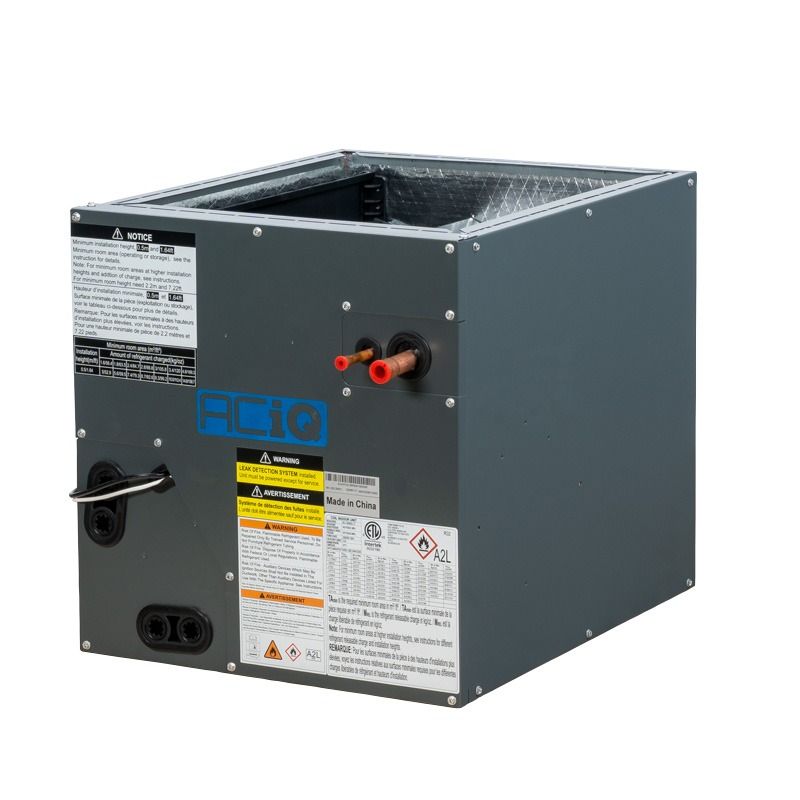

• Coil: 1.5–2 ton multi-positional cased A-coil with factory TXV, 3/8" liquid line and 3/4" suction line, 17.5" cabinet width
• Furnace: 66,000 BTU input (52,800 BTU output), 80% AFUE, single-stage burner, multi-speed ECM blower, 115V 1Ø electrical

Product Highlights

Matched split system for replacement or matched-system installations; multi-positional furnace and coil; condenser uses A2L R32 refrigerant and requires leak mitigation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0701712A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-24AC14 / AC-I-1824ACL-17 / N80MSN0701712A
• System Type: Matched furnace, evaporator coil and outdoor condenser (split system)
• Condenser Cooling Capacity: 24,000 BTU (2 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant Type: R32 (A2L)
• Refrigerant Charge: 52.91 oz
• Condenser Compressor Type: Rotary
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size (Min/Max): 13 Amps / 20 Amps
• Condenser Dimensions (H x W x D): 25" x 23.62" x 23.62"
• Condenser Decibel Level: 58 dBA (approx.)
• Coil Model: AC-I-1824ACL-17
• Coil Tonnage Range: 1.5 to 2 Ton
• Coil Configuration: Multi-positional (upflow / downflow / horizontal)
• Coil Style: Cased A-coil with factory-installed TXV
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Cabinet Width: 17.5 inches
• Coil Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil Refrigerant Compatibility: R32
• Furnace Model: N80MSN0701712A
• Furnace Input (Heating BTU): 66,000 BTU
• Furnace Output (Approx.): 52,800 BTU
• Furnace Efficiency: 80% AFUE
• Furnace Burner Stages: Single stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 1005
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Fuel Type: Natural gas (field convertible to propane with optional LP kit)
• Furnace Configuration: Multi-positional (upflow / downflow / horizontal)
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• AHRI Certificate Number: 213146136
• Exhaust Flue Requirement: Metal venting required for 80% AFUE furnace
• Safety / Compliance Notes: Condenser uses A2L R32 refrigerant and requires refrigerant leak mitigation/detection; furnace not Low NOx
