Aciq AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0801716A 1.5 Ton 14.3 SEER2 92% AFUE 80,000 BTU Furnace and AC System (Multi-positional) R92MSN0801716A

Product Description

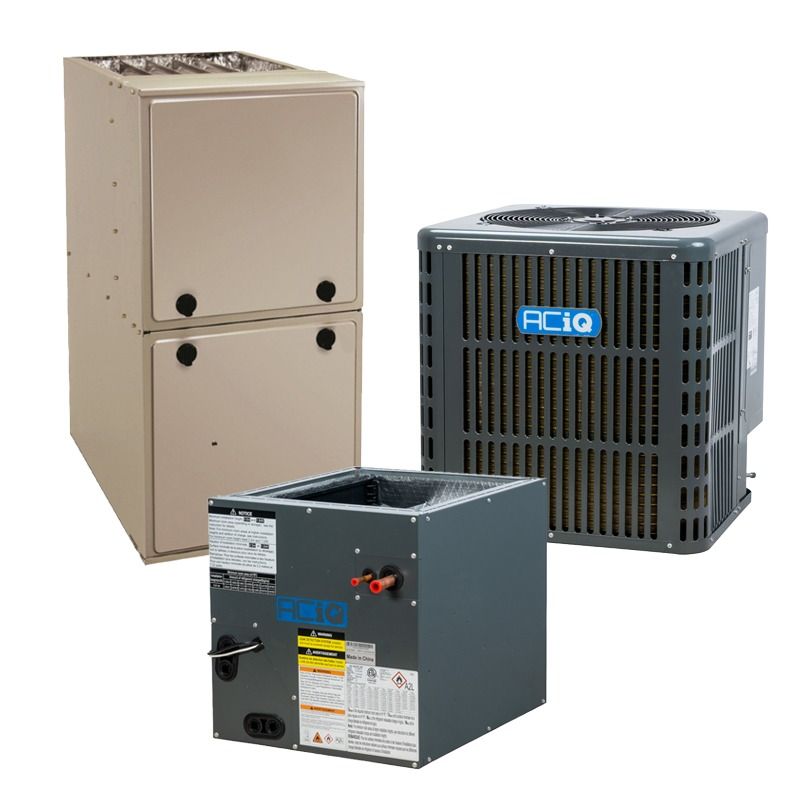

The Aciq AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0801716A is a matched 1.5 ton split system that combines an 18,000 BTU 14.3 SEER2 R32 condenser, a 1.5 to 2 ton multi-positional cased evaporator coil, and an 80,000 BTU 92% AFUE single-stage gas furnace. The condenser is pre-charged with 45.86 oz of R32 and operates on 208/230V 1 phase; the furnace uses 115V and features a multi-speed ECM blower and direct ignition.

• Matched components: AC-I-18AC14 condenser, AC-I-1824ACL-17 cased evaporator coil, R92MSN0801716A furnace
• Refrigerant and controls: R32 refrigerant, 45.86 oz charge, factory-installed TXV on A-coil
• Furnace and installation: 92% AFUE, multi-positional (upflow/downflow/horizontal), field-convertible to propane, plastic/PVC flue

Product Highlights

Matched 1.5 ton R32 split system with 14.3 SEER2 cooling and 92% AFUE heating, multi-positional installation, factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0801716A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0801716A
• System Components: AC-I-18AC14 condenser; AC-I-1824ACL-17 cased evaporator coil; R92MSN0801716A furnace
• System Type: Split central air conditioner and gas furnace system

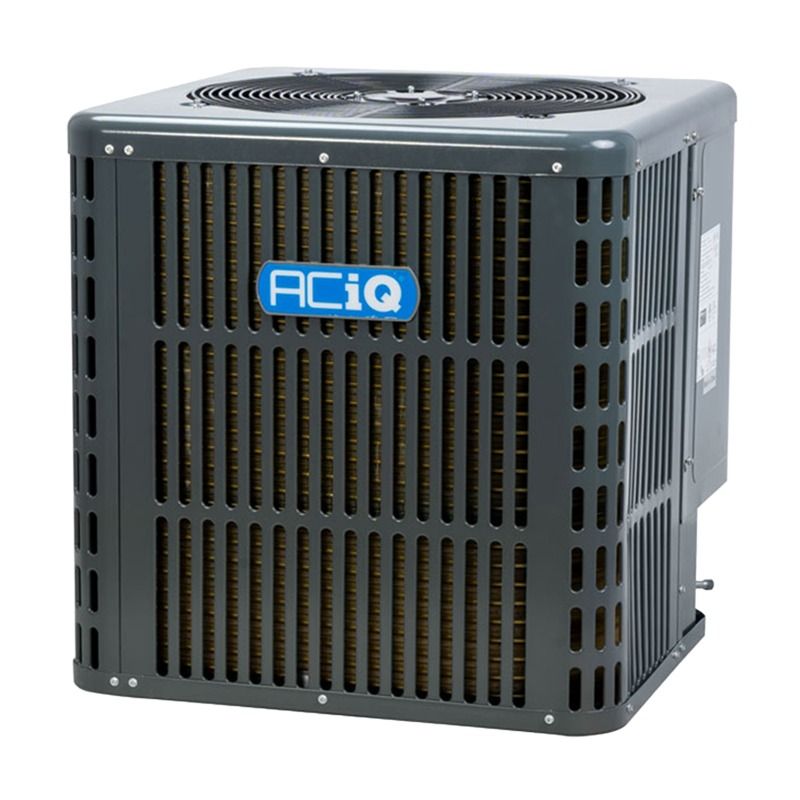

• AC Cooling Capacity: 18,000 BTU (1.5 Ton)
• SEER2: 14.3
• EER2: 12.2
• Refrigerant Type: R32 (A2L)
• Refrigerant Charge: 45.86 oz.
• Compressor Type: Rotary
• AC Stages: Single stage
• AC Input Voltage: 208/230V 1 Phase 60 Hz
• AC Breaker Minimum Amps: 11 Amps
• AC Breaker Maximum Amps: 15 Amps
• AC Dimensions (H x W x D): 25" x 23.62" x 23.62"
• AC Weight (lbs): 123.00
• AC Sound Level (dBA): 58

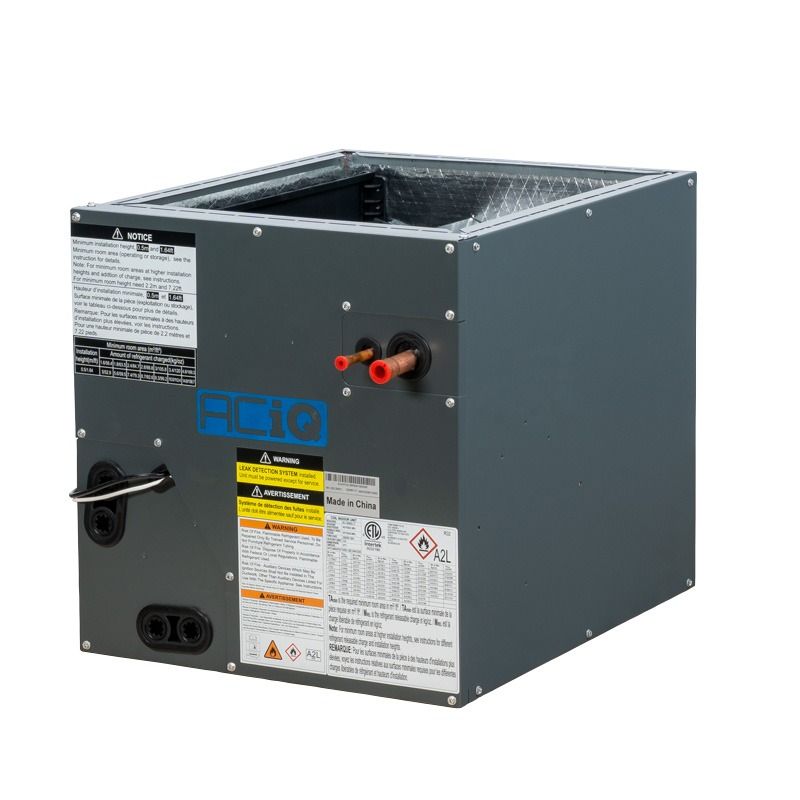

• Coil SKU: AC-I-1824ACL-17
• Coil Configuration: Multi-positional, cased A-coil
• Coil Compatible Tonnage: 1.5 to 2 Ton
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil Weight (lbs): 43.00
• Coil Features: Factory-installed TXV, all-aluminum construction

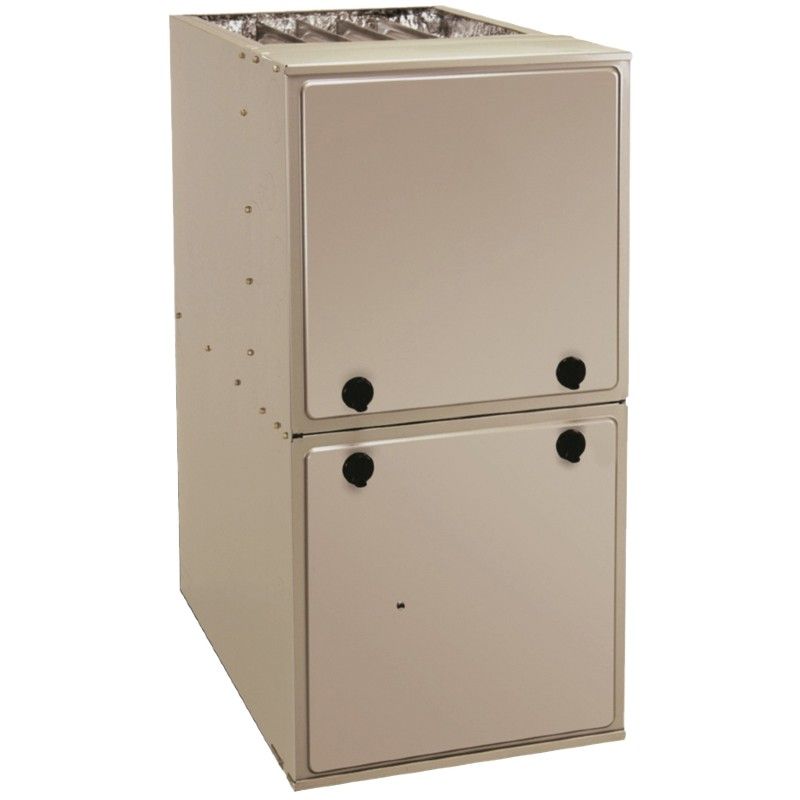

• Furnace SKU: R92MSN0801716A
• Furnace Heating Capacity (BTU): 80,000 BTU
• Furnace Efficiency (AFUE): 92%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT)
• Furnace Maximum CFM: 1600
• Furnace Motor RPM: 1200
• Furnace Horsepower: 0.5 HP
• Furnace Burner Stages: Single stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane)
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Weight (lbs): 142.00
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Fan Motors: 1
• Country of Origin: China
• Notes (safety/regulatory): Furnace not Ultra Low NOx compliant; shipments to California may be subject to mitigation requirements
