Aciq AC-I-18AC14 AC-I-1824ACL-17 R92MSN0601714A 1.5 Ton 14.3 SEER2 92% AFUE 60,000 BTU multi-positional system

Product Description

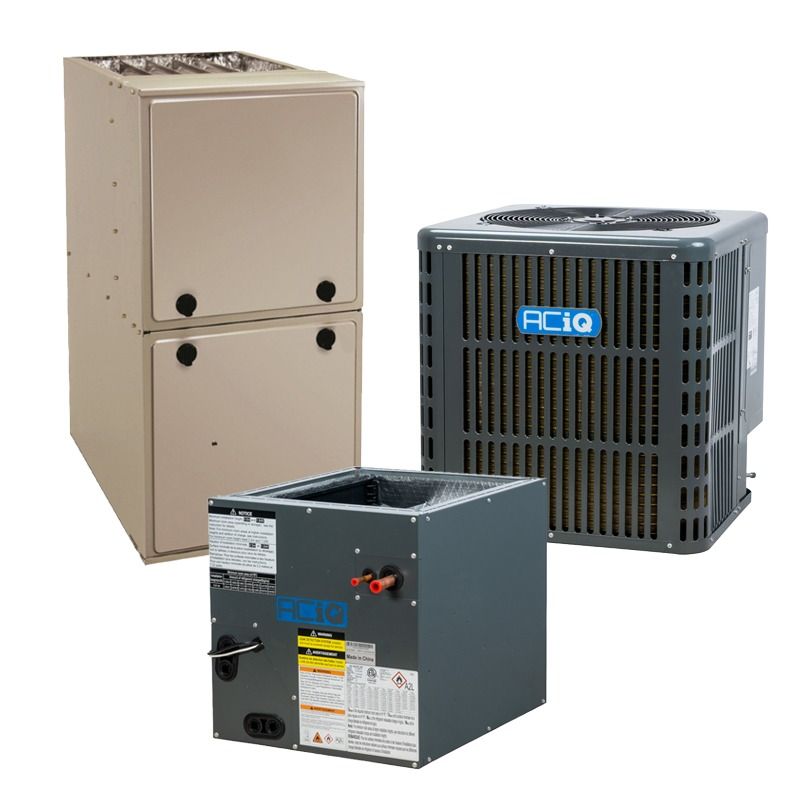

ACiQ AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0601714A is a matched residential HVAC system that combines a 1.5 ton R32 condenser, a 1.5–2.0 ton cased multi-positional evaporator coil, and a 60,000 BTU 92% AFUE multi-positional gas furnace. The system is pre-charged for R32 refrigerant and designed for upflow, downflow, or horizontal installations, with multi-speed ECM blower and factory-installed TXV on the coil.

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, R32 refrigerant, rotary compressor, approx. 58 dBA, 208/230V electrical
• Furnace: 60,000 BTU input, 92% AFUE, single-stage burner, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, 115V electrical
• Coil: 1.5–2.0 ton cased A-coil, multi-positional, all-aluminum construction, factory-installed TXV, liquid line 3/8 in, suction line 3/4 in

Product Highlights

Matched 1.5 ton R32 condenser, 60,000 BTU 92% AFUE multi-positional gas furnace, and cased multi-positional evaporator coil; condenser pre-charged for R32 and requires refrigerant leak mitigation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0601714A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / R92MSN0601714A
• System components: Condenser (AC-I-18AC14), Evaporator coil (AC-I-1824ACL-17), Furnace (R92MSN0601714A)

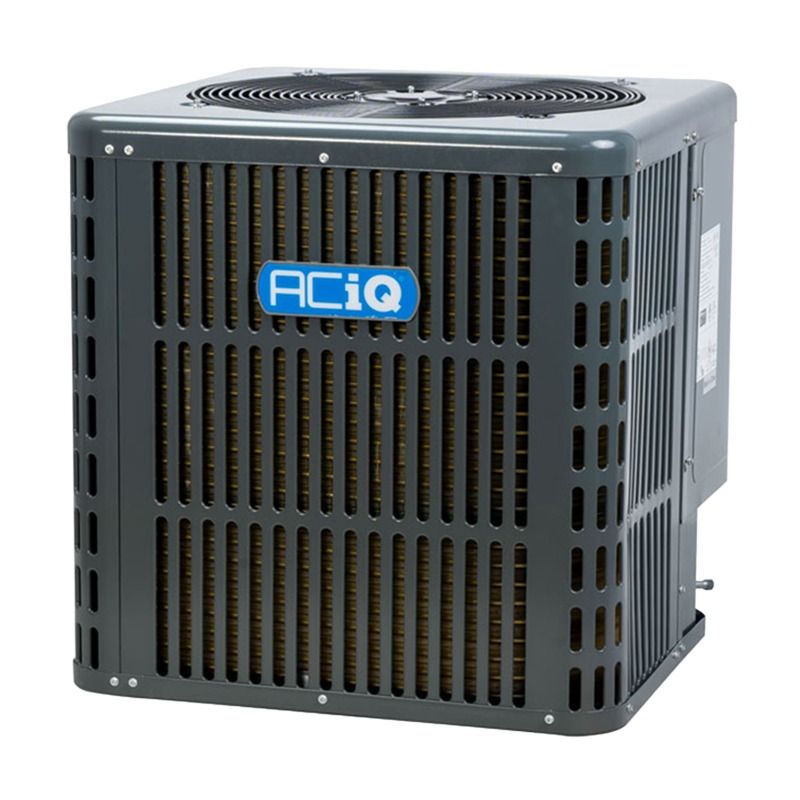

• Condenser model: AC-I-18AC14
• Condenser cooling capacity: 18,000 BTU (1.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser compressor type: Rotary
• Condenser refrigerant: R32 (A2L)
• Condenser refrigerant charge: 45.86 oz
• Condenser sound level (dBA): 58
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser min breaker size: 11 Amps
• Condenser max breaker size: 15 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser dimensions (H x W x D): 25" x 23.62" x 23.62"
• Condenser weight: 123 lbs

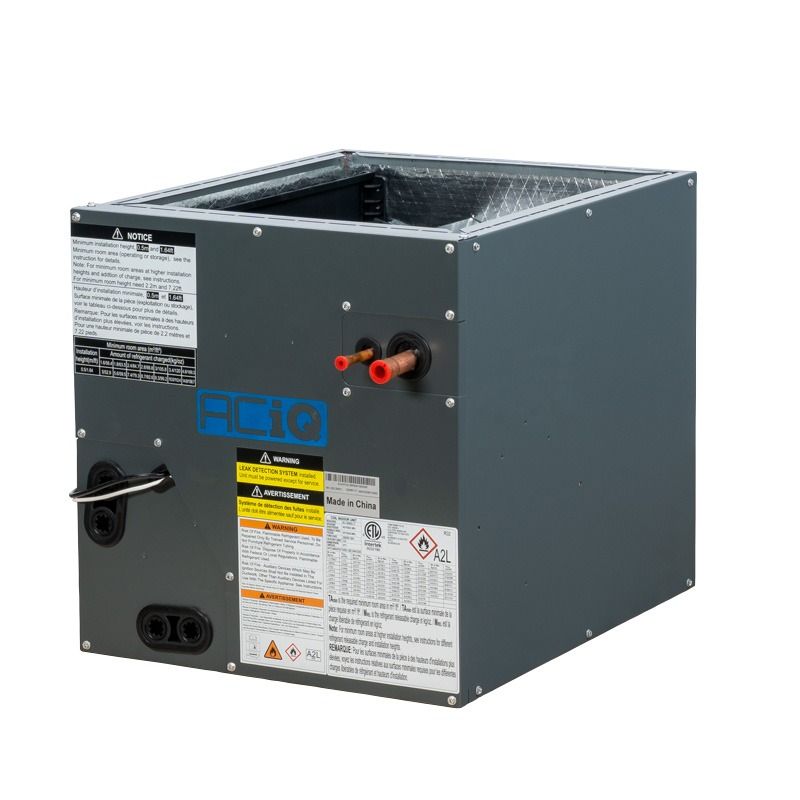

• Coil model: AC-I-1824ACL-17
• Coil type: Cased A-coil (evaporator)
• Coil tonnage range: 1.5 to 2.0 Ton
• Coil configuration: Multi-positional (upflow/downflow/horizontal)
• Coil material: All-aluminum construction
• Coil factory TXV: Factory-installed TXV
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil weight: 43 lbs

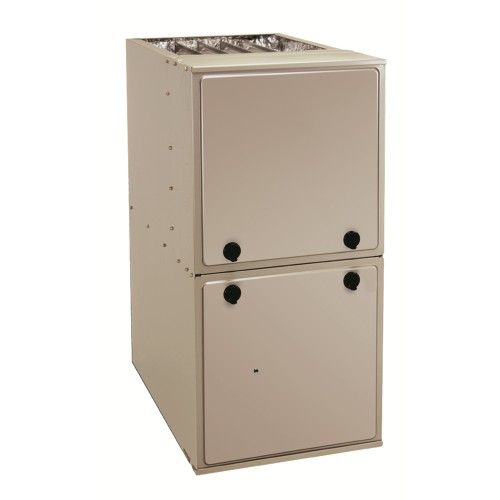

• Furnace model: R92MSN0601714A
• Furnace heating capacity: 60,000 BTU input
• Furnace AFUE: 92%
• Furnace blower motor: Multi-speed ECM
• Furnace maximum CFM: 1400
• Furnace configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace input voltage: 115V 1 Phase 60 Hz
• Furnace burner stages: Single stage
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace weight: 136 lbs
• Furnace exhaust flue requirement: Plastic / PVC
• Additional features: System pre-charged for R32 and includes refrigerant leak mitigation kit; field-convertible furnace to propane with optional LP kit; onboard furnace self-diagnostics
• Certifications: AHRI (coil listing noted)
• Region approved: Northern and Southern States
