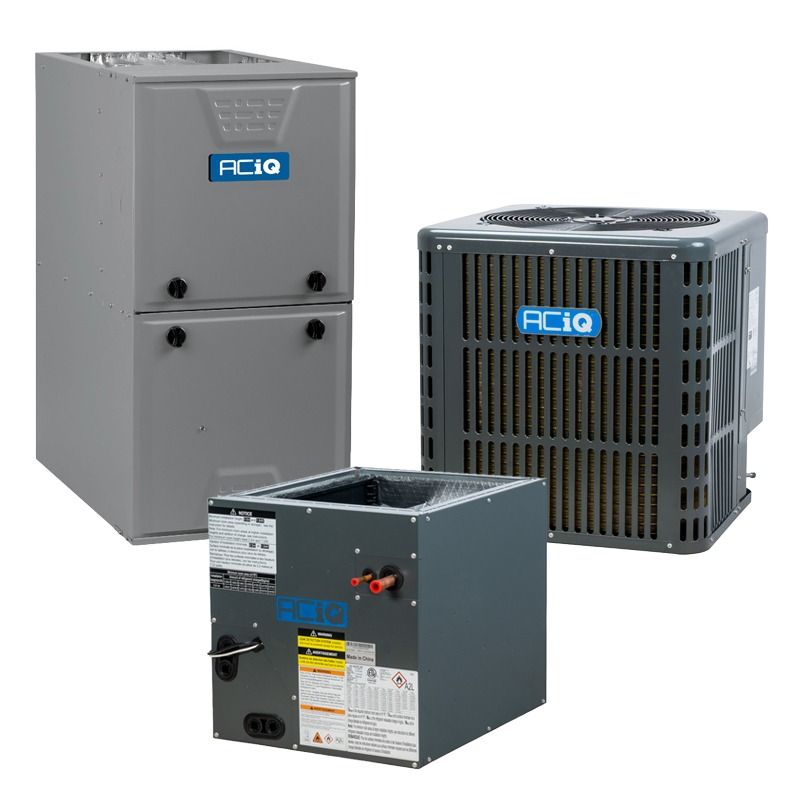

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0601716A 60,000 BTU 1.5 Ton 14.3 SEER2 Furnace and AC System (Multi-Positional)

Product Description

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0601716A is a matched HVAC system that combines a 1.5 ton 14.3 SEER2 R32 condenser, a 60,000 BTU 96% AFUE multi-positional gas furnace, and a 1.5–2 ton cased evaporator coil. The condenser is pre-charged with R32 refrigerant, operates on 208/230V 1-phase 60 Hz, and the furnace includes an ECM blower motor and on-board diagnostics for system control and airflow up to 1330 CFM.

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, R32 refrigerant, 45.86 oz charge, ~58 dBA, 208/230V 1Ph 60Hz
• Furnace: 60,000 BTU, 96% AFUE, single-stage, ECM blower, multi-positional (upflow/downflow/horizontal), max 1330 CFM
• Evaporator coil: 1.5–2 ton cased A-coil, all-aluminum with factory TXV, liquid line 3/8 in, suction line 3/4 in

Product Highlights

Matched 1.5 ton R32 condenser, 60,000 BTU 96% AFUE furnace, and 1.5–2 ton multi-positional cased coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0601716A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0601716A
• System Tonnage: 1.5 Ton
• Condenser Model: AC-I-18AC14
• Condenser Cooling Capacity: 18,000 BTU (1.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Refrigerant: R32
• Refrigerant Charge: 45.86 oz
• Condenser Noise Level: 58 dBA
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Breaker Minimum: 11 Amps
• Condenser Breaker Maximum: 15 Amps
• Condenser Dimensions (H x W x D): 25" x 23.62" x 23.62"
• Condenser Weight: 123 lbs
• Furnace Model: N96MSN0601716A
• Furnace Heating Capacity: 60,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 1330
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Energy Star: Yes
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• Furnace Weight: 138 lbs
• Evaporator Coil Model: AC-I-1824ACL-17
• Evaporator Coil Type: Cased A-coil, multi-positional
• Evaporator Coil Refrigerant: R32
• Evaporator Liquid Line Size: 3/8"
• Evaporator Suction Line Size: 3/4"
• Evaporator Tonnage Range: 1.5 Ton to 2 Ton
• Evaporator Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Evaporator Weight: 43 lbs
• AHRI Certificate Number (Furnace): 213148506
