Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0401712A 1.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU Furnace & AC System (Multi-positional)

Product Description

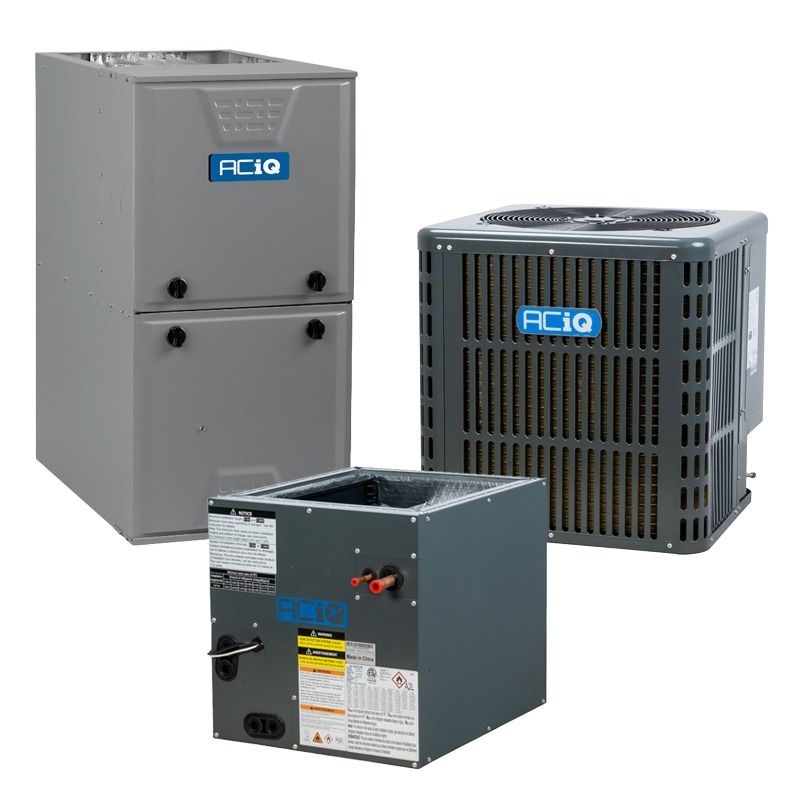

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0401712A is a matched 1.5 ton HVAC system combining a 14.3 SEER2 R32 condenser, a 40,000 BTU 96% AFUE multi-positional gas furnace, and a 1.5–2.0 ton cased evaporator coil with factory-installed TXV. The condenser is pre-charged with R32 (A2L) and uses a rotary compressor; the furnace features a multi-speed ECM blower, single-stage burner, and is field-convertible to propane. Coil line sizes are 3/8 in liquid and 3/4 in suction.

• Matched system: 1.5 ton (18,000 BTU) condenser (14.3 SEER2, 12.2 EER2) paired with a 40,000 BTU 96% AFUE multi-positional furnace and 1.5–2.0 ton A-coil.
• Refrigerant and controls: condenser pre-charged with R32 (A2L) and requires leak mitigation; evaporator coil includes factory-installed TXV for improved humidity control.
• Furnace features: multi-speed ECM blower, single-stage burner, 120V electrical, upflow/downflow/horizontal installation, field-convertible to propane with optional LP kit.

Product Highlights

Matched 1.5 ton R32 condenser, 40,000 BTU 96% AFUE multi-positional furnace, and 1.5–2.0 ton cased A-coil with factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0401712A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0401712A
• System type: Matched condenser, furnace, and evaporator coil system
• Cooling capacity: 18,000 BTU (1.5 Ton)
• SEER2: 14.3
• EER2: 12.2

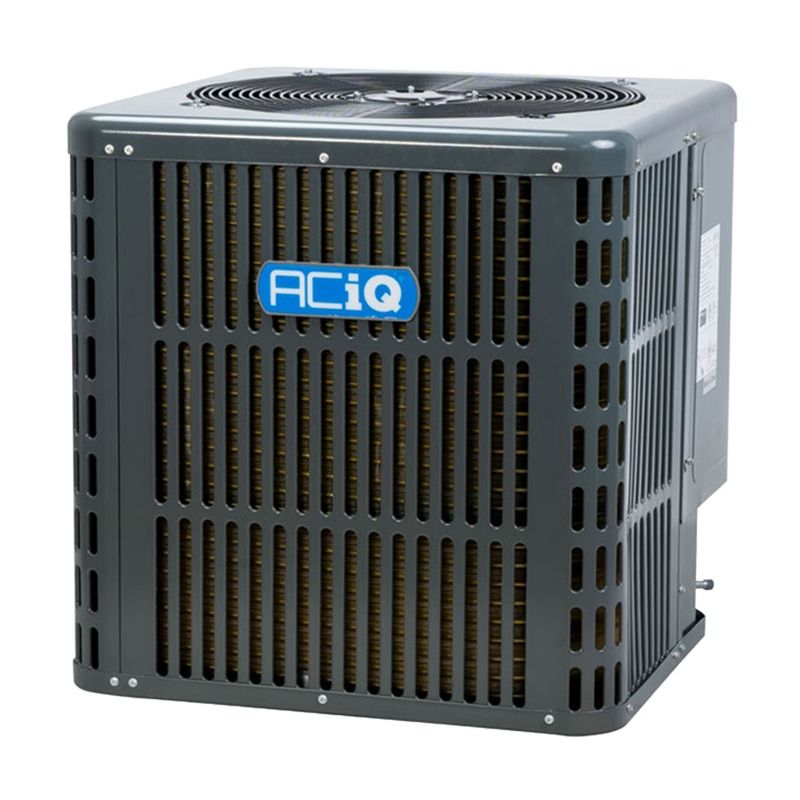

• Refrigerant type: R32 (A2L), condenser pre-charged
• Condenser refrigerant charge: 45.86 oz.
• Condenser compressor type: Rotary
• Condenser decibel level: 58 dBA
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser min breaker: 11 A
• Condenser max breaker: 15 A
• Condenser dimensions (H x W x D): 25 x 23.62 x 23.62 in
• Condenser weight: 123 lb

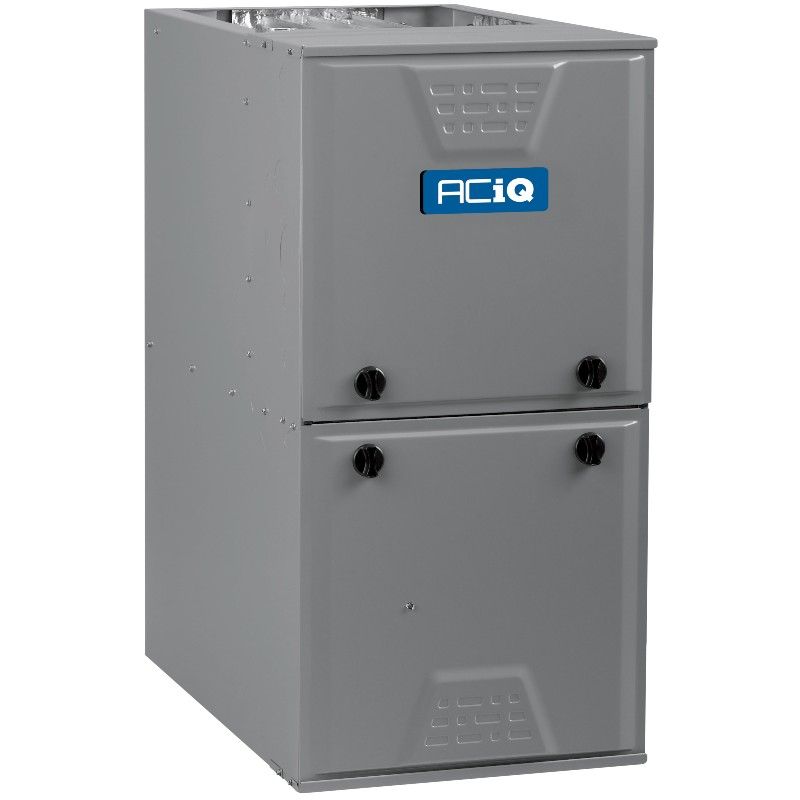

• Furnace model: N96MSN0401712A
• Furnace input: 40,000 BTU
• Furnace output: 32,000 BTU
• Furnace AFUE: 96%
• Furnace configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace blower motor: Multi-speed ECM
• Furnace maximum CFM: 1010
• Furnace electrical: 120V 1 Phase 60 Hz
• Furnace burner stages: Single stage
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace dimensions (H x W x D): 35 x 17.5 x 29.5 in
• Furnace weight: 126.58 lb
• Furnace exhaust flue requirement: Plastic / PVC

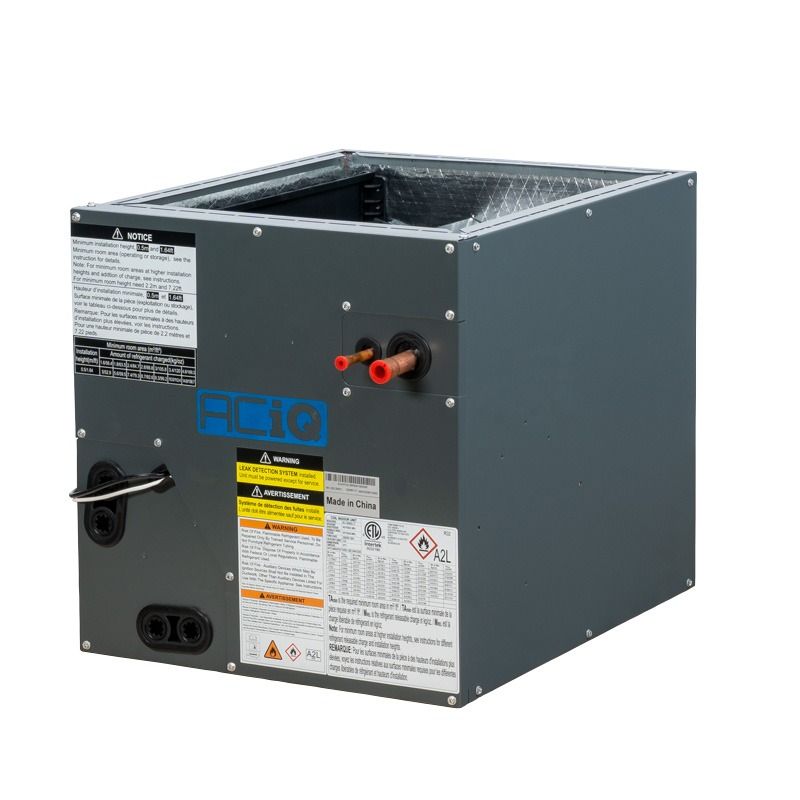

• Evaporator coil model: AC-I-1824ACL-17
• Evaporator coil tonnage: 1.5 to 2.0 Ton
• Evaporator coil configuration: Multi-positional cased A-coil; factory-installed TXV
• Evaporator coil refrigerant compatibility: R32
• Coil liquid line size: 3/8 in
• Coil suction line size: 3/4 in
• Coil dimensions (H x W x D): 18 x 17.5 x 21.02 in
• Coil weight: 43 lb
• AHRI certificate (furnace): 213148758
• Energy Star (furnace): Yes
• Regulatory note: Condenser uses A2L R32 refrigerant and requires compatible indoor equipment and refrigerant leak detection; furnace is not Low NOx/Ultra Low NOx compliant
