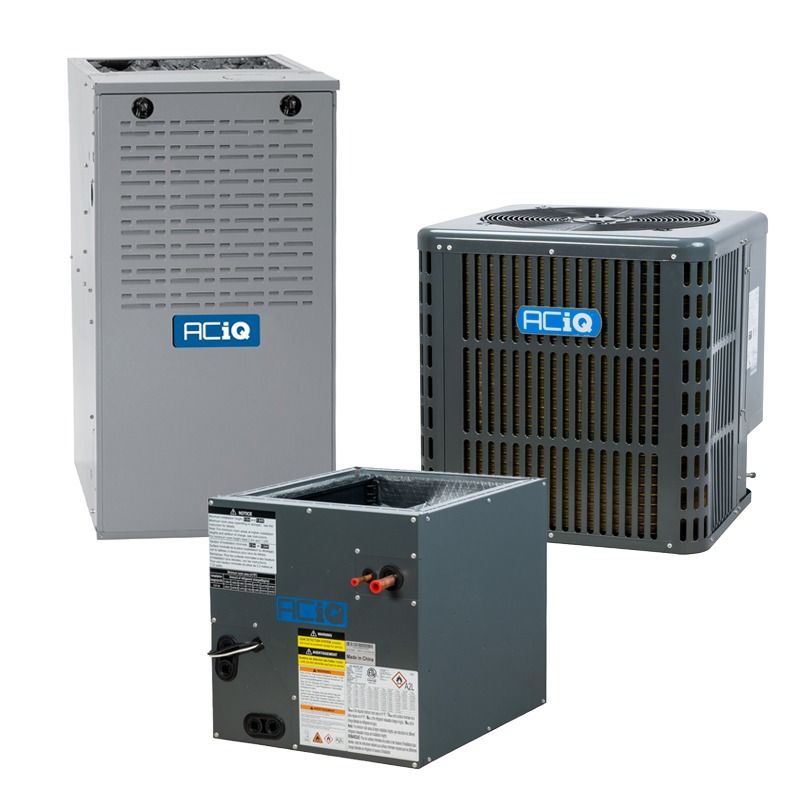

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0901714A 1.5 Ton 14.3 SEER2 80% AFUE Furnace and AC System (Multi-Positional)

Product Description

The Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0901714A is a complete 1.5 ton HVAC system that pairs a 14.3 SEER2 R32 condenser with a multi-positional evaporator coil and an 80% AFUE single-stage 80,000 BTU furnace. The condenser uses a rotary compressor, is factory charged with 45.86 oz R32, and requires 208/230V 1Ph 60 Hz. The furnace features a multi-speed ECM blower, silicon nitride hot surface ignitor, and 115V 1Ph 60 Hz electrical.

• Condenser: 14.3 SEER2, 18,000 BTU cooling, rotary compressor, 45.86 oz R32 charge, requires 208/230V 1Ph 60 Hz, ~58 dBA
• Furnace: 80% AFUE, 88,000 BTU input (approx. 70,400 BTU output), single-stage burner, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, 115V 1Ph 60 Hz
• Evaporator coil: multi-positional cased A-coil for 1.5 to 2 ton systems, 3/8" liquid and 3/4" suction connections, factory-installed TXV

Product Highlights

Complete 1.5 ton split HVAC system with R32 condenser (14.3 SEER2), multi-positional A-coil, and 80% AFUE single-stage furnace

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0901714A

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0901714A
• System type: Complete furnace and air conditioner system (condenser, evaporator coil, furnace)
• Tonnage: 1.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser Cooling BTU: 18,000 BTU
• Condenser Refrigerant: R32 (A2L)
• Condenser Refrigerant Charge: 45.86 oz
• Condenser Compressor Type: Rotary
• Condenser Decibel Level: 58 dBA
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 15 Amps
• Condenser Min Breaker Size: 11 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Weight: 123 lbs
• Condenser Dimensions (H x W x D): 25" x 23.62" x 23.62"
• Furnace AFUE: 80%
• Furnace Heating BTU (input): 88,000 BTU
• Furnace Output BTU (approx.): 70,400 BTU
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 1210
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Weight: 131 lbs
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Evaporator Coil SKU: AC-I-1824ACL-17
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil Refrigerant: R32
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Tonnage: 1.5 to 2 Ton
• Coil Style: A-Coil (cased)
• Coil Weight: 43 lbs
• Coil Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil Features: All-aluminum construction with factory-installed TXV
• Furnace Exhaust Flue Requirement: Metal
• Furnace AHRI Certificate Number: 213146139
