Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0801716 1.5 Ton 14.3 SEER2 96% AFUE 80,000 BTU System (17.5 inch coil) Carrier 59TP6B080V17--16

Product Description

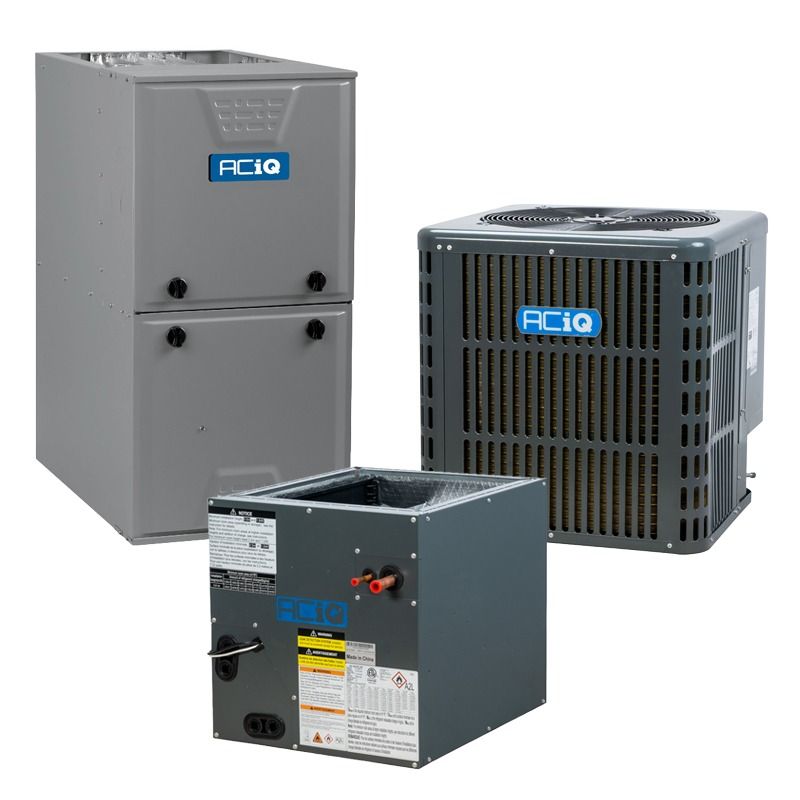

The ACiQ AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0801716 is a matched split HVAC system that combines a 1.5 ton 14.3 SEER2 R32 condenser, a 17.5 inch cased A-coil evaporator, and an 80,000 BTU input 96% AFUE two-stage gas furnace. The system supports multi-positional installation (upflow, downflow, horizontal), uses a variable speed ECM blower, and is pre-charged with R32 refrigerant for residential heating and cooling applications.

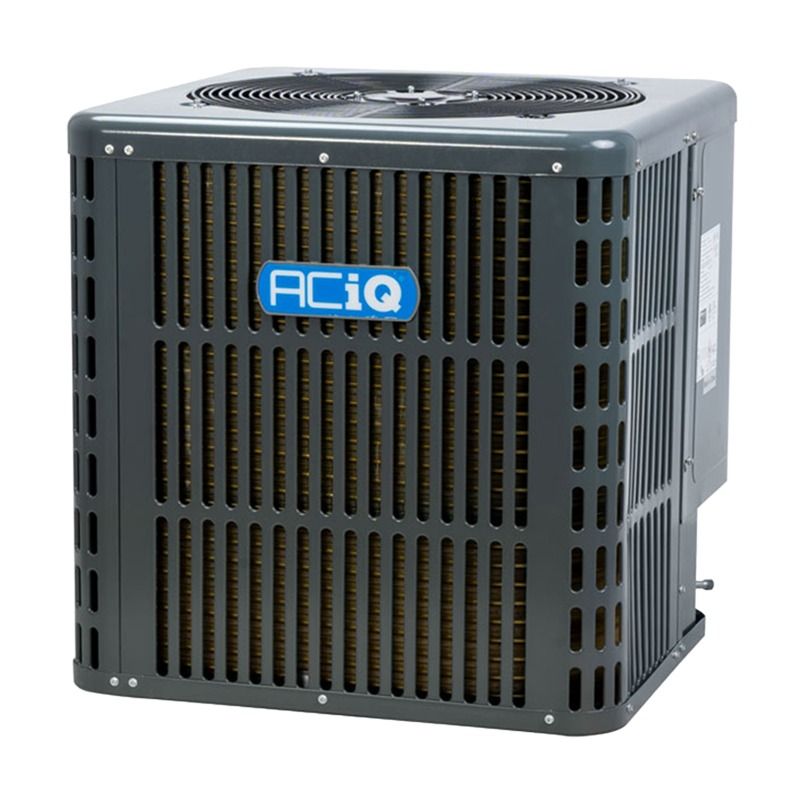

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, pre-charged R32 refrigerant, ~58 dBA, 208/230V 1Ø 60 Hz
• Furnace: 80,000 BTU input, 96% AFUE, two-stage burner, variable speed ECM blower, 120V 1Ø 60 Hz, multi-positional
• Coil: 17.5 inch cased A-coil, compatible with 1.5–2 ton systems, factory-installed TXV, 3/8 inch liquid / 3/4 inch suction line sizes

Product Highlights

Matched 1.5 ton condenser, cased multi-positional evaporator coil, and 96% AFUE multi-positional two-stage furnace pre-charged with R32; designed for flexible installation and quieter outdoor operation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0801716

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0801716
• System type: Matched condenser + coil + furnace split system
• Cooling capacity: 18,000 BTU (1.5 Ton)
• SEER2: 14.3
• EER2: 12.2
• Refrigerant type: R32 (A2L)
• Refrigerant charge: 45.86 oz (pre-charged)
• Condenser sound level: 58 dBA
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser minimum breaker: 11 Amps
• Condenser maximum breaker: 15 Amps
• Condenser compressor type: Rotary
• Condenser weight: 123 lb
• Evaporator coil SKU: AC-I-1824ACL-17

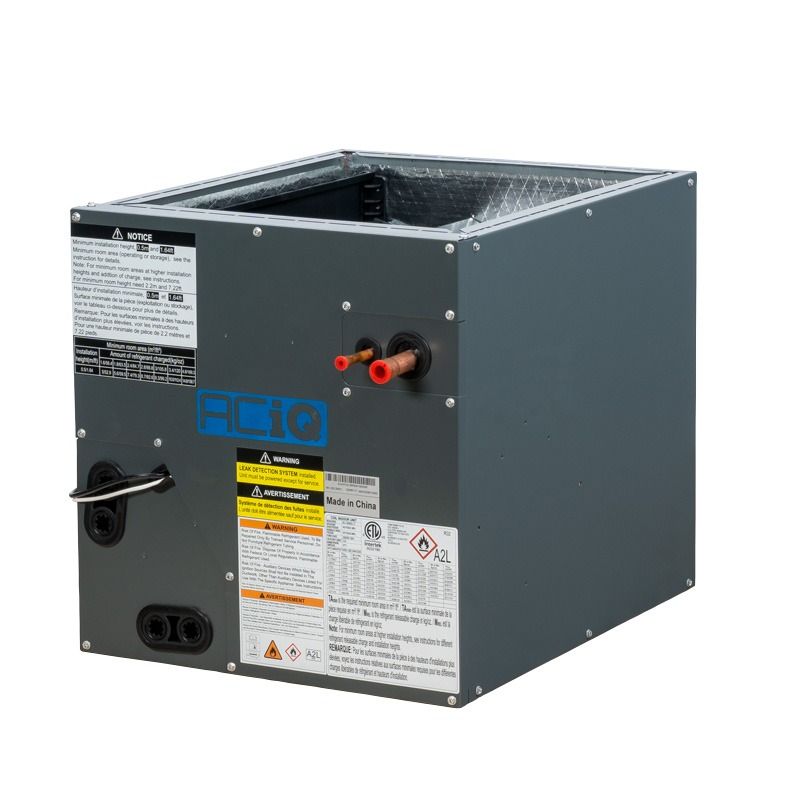

• Coil type: Cased evaporator coil (A-coil), factory-installed TXV
• Coil compatibility / tonnage range: 1.5 to 2 Ton
• Coil cabinet width: 17.5 inch
• Coil liquid line size: 3/8 inch
• Coil suction line size: 3/4 inch
• Coil weight: 43 lb
• Furnace SKU: G96VTN0801716
• Furnace input BTU: 80,000 BTU
• Furnace output BTU (approx.): 76,800 BTU
• Furnace AFUE: 96%
• Furnace configuration / mounting type: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Variable speed (ECM)
• Furnace maximum CFM: 1655
• Furnace burner stages: Two-stage
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace input voltage: 120 V 1 Phase 60 Hz
• Furnace exhaust flue requirement: Plastic / PVC
• AHRI certificate number (furnace): 213148554
• Equivalents / replacement MPNs: Carrier 59TP6B080V17--16; Tempstar F96VTN0801716A; Bryant 926TB48080V17
