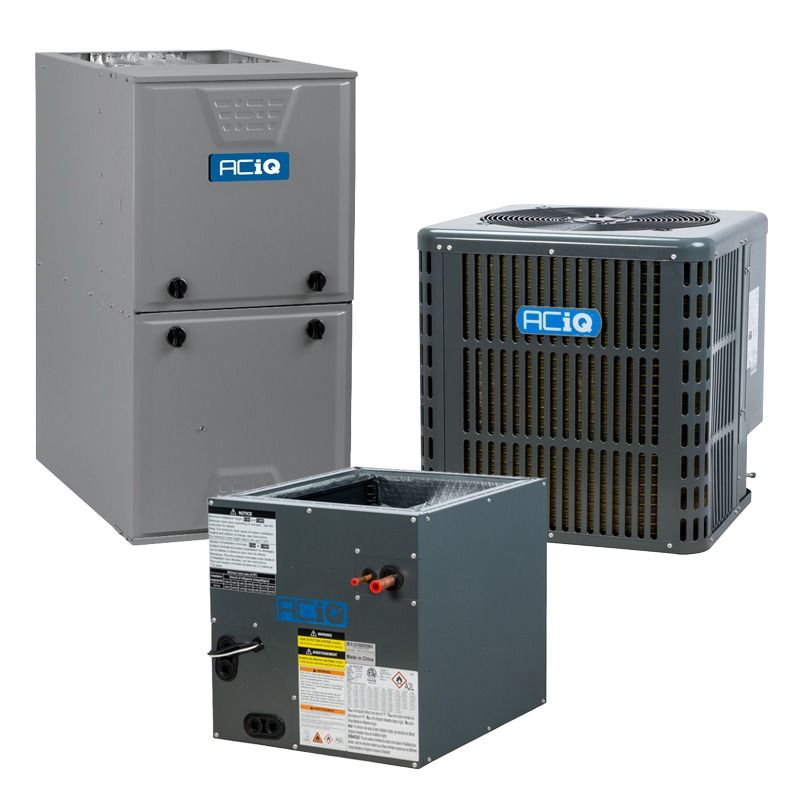

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0601716 1.5 Ton 14.3 SEER2 60,000 BTU furnace and AC system (multi-positional)

Product Description

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0601716 is a matched central HVAC system that pairs a 1.5 ton 14.3 SEER2 R32 outdoor condenser with a multi-positional 1.5–2 ton cased evaporator coil and a 60,000 BTU 96% AFUE two-stage gas furnace with variable-speed blower. The condenser is pre-charged with 45.86 oz R32 refrigerant and requires 208/230V power while the furnace operates on 120V.

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, R32 refrigerant, 45.86 oz charge, 58 dBA, 208/230V 1Ph 60Hz, rotary single-stage compressor
• Evaporator coil: AC-I-1824ACL-17 multi-positional cased A-coil, 1.5–2 ton range, 17.5 in width, factory-installed TXV, 3/8 in liquid line, 3/4 in suction line
• Furnace: G96VTN0601716 two-stage natural gas, 60,000 BTU input, 96% AFUE (~57,600 BTU output), variable-speed blower up to 1,475 CFM, 120V 1Ph 60Hz

Product Highlights

Matched 1.5 ton R32 condenser, multi-positional 1.5–2 ton cased coil with TXV, and 60,000 BTU 96% AFUE two-stage furnace; multi-positional installation options.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0601716

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0601716
• System Tonnage: 1.5 Ton
• Condenser MPN: AC-I-18AC14
• Condenser Cooling Capacity (BTU): 18,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 45.86 oz
• Condenser Sound Level: 58 dBA
• Condenser Input Voltage: 208/230V, 1 Phase, 60 Hz
• Condenser Dimensions (H x W x D): 25" x 23.62" x 23.62"
• Compressor Type: Rotary
• Compressor Stages: Single stage
• Evaporator Coil MPN: AC-I-1824ACL-17
• Coil Type/Configuration: Multi-positional
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Tonnage Range: 1.5 to 2 Ton
• Coil Style: A-coil (cased)
• Coil Dimensions (H x W x D): 18" x 17.5" x 21.02"
• Furnace MPN: G96VTN0601716
• Furnace Heat Input (BTU): 60,000 BTU
• Furnace AFUE: 96%
• Furnace Heat Output (approx.): 57,600 BTU
• Furnace Blower Motor: Variable speed
• Furnace Max CFM: 1,475
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Input Voltage: 120V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 35" x 17.5" x 29.5"
• AHRI Certificate Number: 213148548
• Exhaust Flue Requirement: Plastic / PVC
• Required Condenser Breaker: 15 Amps max / 11 Amps min
• Included Accessories: R32 refrigerant leak mitigation kit; recommended line set and condenser installation kit available
