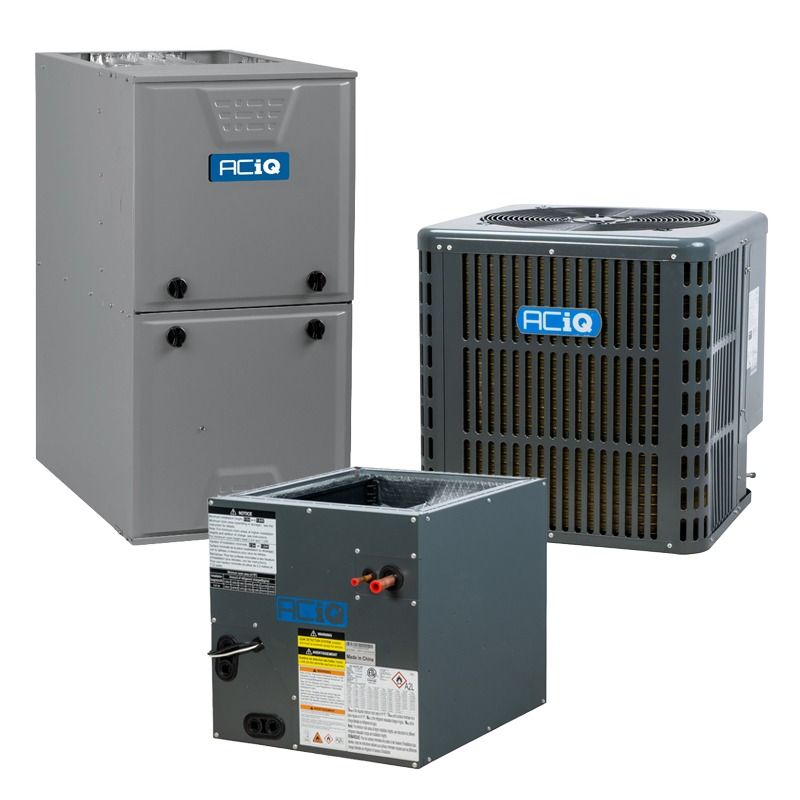

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0401712 1.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU Furnace and AC System (Multi-Positional)

Product Description

The AciQ AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0401712 is a matched HVAC system combining a 1.5 ton 14.3 SEER2 R32 outdoor condenser, a 40,000 BTU 96% AFUE multi-positional two-stage gas furnace, and a 1.5–2 ton cased evaporator coil. The system is pre-charged with R32 refrigerant and includes a factory-installed TXV on the coil, a variable-speed furnace blower, and multi-orientation installation capability for upflow, downflow, or horizontal placements.

• Outdoor condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, R32 refrigerant, 45.86 oz charge, rotary compressor
• Furnace: 40,000 BTU, 96% AFUE, two-stage gas burner, variable-speed blower, 120 V electrical
• Evaporator coil: 1.5–2 ton cased A-coil, factory-installed TXV, 3/8 in liquid and 3/4 in suction line connections

Product Highlights

Matched 1.5 ton HVAC system with R32 refrigerant, multi-positional furnace, factory TXV cased coil, and specified electrical and dimensional data

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0401712

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G96VTN0401712
• Furnace Heating BTU: 40,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed
• Furnace Burner Stages: Two
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical (Input Voltage): 120 V, 1 Phase, 60 Hz
• Furnace Maximum CFM: 1105
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Condenser Cooling BTU: 18,000 BTU (1.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser Sound Level: 58 dBA
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Refrigerant Charge: 45.86 oz
• Condenser Compressor Type: Rotary
• Condenser Electrical (Input Voltage): 208/230 V, 1 Phase, 60 Hz
• Condenser Breaker Size (Min): 11 Amps
• Condenser Breaker Size (Max): 15 Amps
• Condenser Dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Evaporator Coil SKU: AC-I-1824ACL-17
• Coil Configuration: Multi-positional (upflow / downflow / horizontal)
• Coil Refrigerant Compatibility: R32
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Tonnage Range: 1.5 to 2 Ton
• Coil Style: A-coil (cased)
• Coil Dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Required Electrical Supply (Condenser): 208/230 V, 1 Phase, 60 Hz
• AHRI Certificate Number (Furnace): 213148540
• Exhaust Flue Requirement: Plastic / PVC
• Equivalent Models: Carrier 59TP6B040V17--12; Tempstar F96VTN0401712A; Bryant 926TB36040V17
