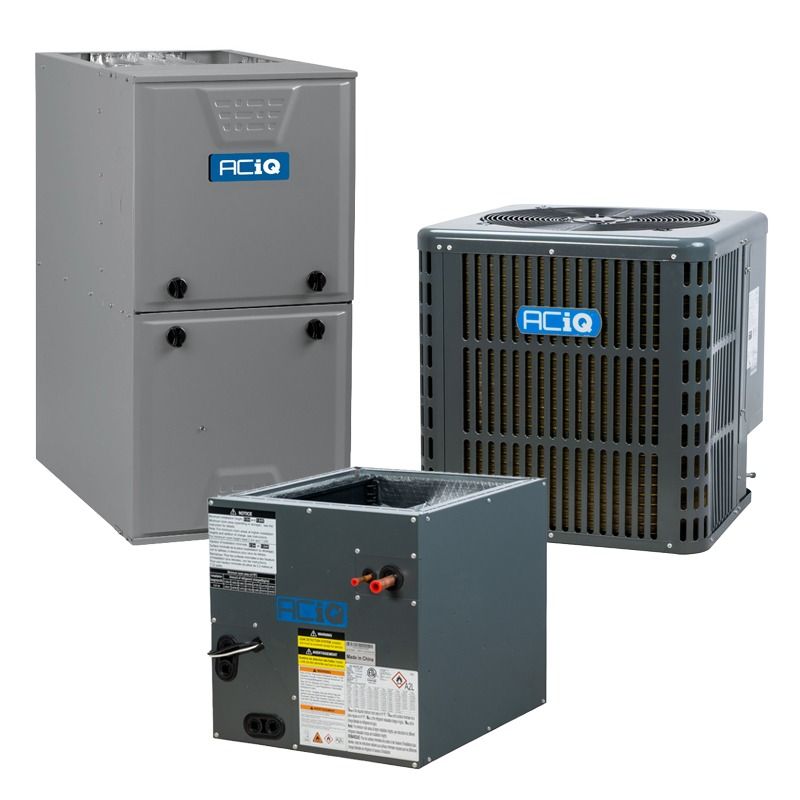

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0801714 1.5 Ton 14.3 SEER2 96% AFUE 80,000 BTU Furnace and AC System (Multi-positional) G96CTN0801714

Product Description

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0801714 is a matched 1.5 ton HVAC system package combining a 14.3 SEER2 R32 condenser, a multi-positional cased evaporator coil, and a 96% AFUE 80,000 BTU two-stage gas furnace. The condenser is pre-charged with R32 and includes an R32 refrigerant leak mitigation kit. Components support upflow, downflow, or horizontal installation and require compatible indoor equipment and professional installation.

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, rotary compressor, pre-charged with R32, 208/230 V 1 Phase 60 Hz
• Furnace: 96% AFUE, 80,000 BTU, two-stage burners, variable speed ECM blower, 120 V 1 Phase 60 Hz
• Evaporator coil: Multi-positional cased A-coil for 1.5–2 ton, factory-installed TXV, 3/8" liquid line and 3/4" suction line

Product Highlights

Matched 1.5 ton R32 HVAC package with 14.3 SEER2 condenser, 96% AFUE two-stage furnace, and multi-positional cased evaporator coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0801714

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0801714
• Package components: Condenser (AC-I-18AC14); Evaporator coil (AC-I-1824ACL-17); Furnace (G96CTN0801714)
• Cooling capacity: 18,000 BTU (1.5 ton)
• SEER2: 14.3
• EER2: 12.2
• Refrigerant type: R32 (A2L)
• Refrigerant charge (condenser): 45.86 oz
• Compressor type: Rotary
• Condenser input voltage: 208/230 V, 1 Phase, 60 Hz
• Condenser breaker size: Minimum 11 Amps, Maximum 15 Amps
• Condenser dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Condenser sound level: 58 dBA (approx.)
• Heating capacity (furnace): 80,000 BTU
• Furnace AFUE: 96%
• Furnace burner stages: Two-stage
• Furnace blower motor: Variable speed ECM, constant torque
• Furnace maximum CFM: 1945
• Furnace input voltage: 120 V, 1 Phase, 60 Hz
• Furnace fuel type: Natural gas (convertible to propane with optional kit)
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Heat exchanger: RPJ aluminized steel
• Furnace configuration: Multi-positional (upflow, downflow, horizontal)
• Coil SKU: AC-I-1824ACL-17
• Coil type: Cased A-coil, multi-positional
• Coil tonnage compatibility: 1.5 to 2 ton
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Factory-installed TXV: Yes
• AHRI certificate number: 213148725
• Requirements: Plastic/PVC flue vent piping required for furnace; condenser must be paired with compatible R32 evaporator coil or air handler and refrigerant leak detection for R32 A2L compliance
