Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0601714 1.5 Ton 14.3 SEER2 96% AFUE 60,000 BTU multi-positional system

Product Description

ACiQ AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0601714 is a matched split heating and cooling system combining a 1.5 ton 14.3 SEER2 R32 outdoor condenser, a 1.5–2.0 ton multi-positional cased evaporator coil, and a 60,000 BTU two-stage 96% AFUE gas furnace. The system is pre-charged with R32, includes an R32 refrigerant leak mitigation kit, and supports upflow, downflow, and horizontal installations.

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, rotary compressor, pre-charged with R32, 58 dBA
• Furnace: 60,000 BTU, 96% AFUE, two-stage gas burner, variable-speed ECM blower, max 1280 CFM
• Coil: 1.5–2.0 ton cased evaporator with factory TXV, multi-positional, liquid/suction lines 3/8" and 3/4"

Product Highlights

Matched ACiQ condenser, evaporator coil, and two-stage furnace bundle using R32 refrigerant with multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0601714
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G96CTN0601714
• Components: 60,000 BTU furnace (G96CTN0601714) + AC condenser (AC-I-18AC14) + evaporator coil (AC-I-1824ACL-17)

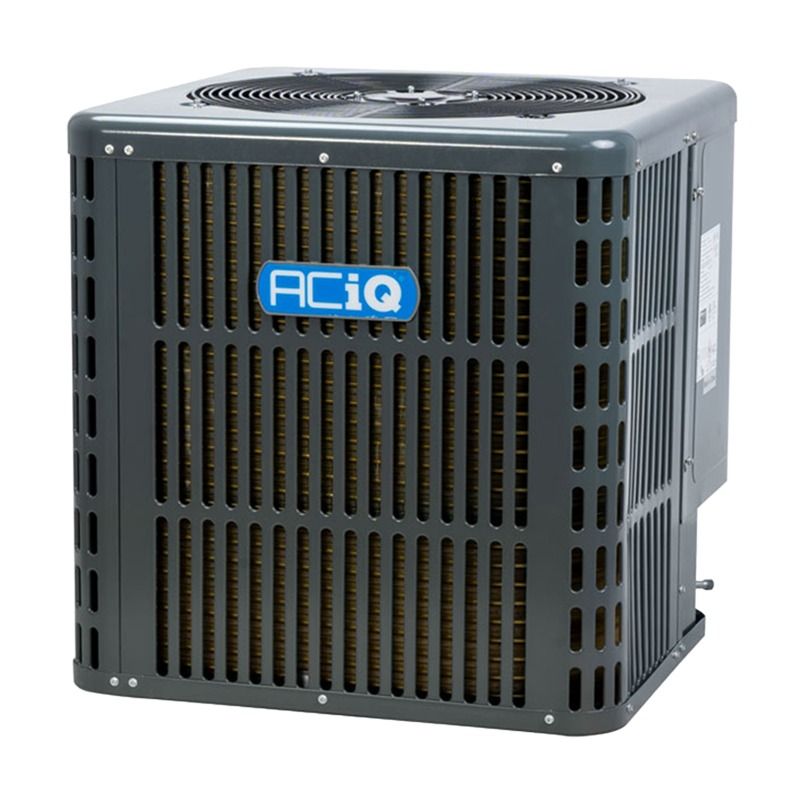

• Condenser cooling capacity: 18,000 BTU (1.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Refrigerant: R32 (pre-charged)
• Condenser compressor type: Rotary
• Condenser decibel level: 58 dBA
• Condenser liquid line size: 3/8"
• Condenser suction line size: 3/4"
• Condenser electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser max breaker size: 15 Amps
• Condenser min breaker size: 11 Amps
• Condenser dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Condenser weight: 123 lbs

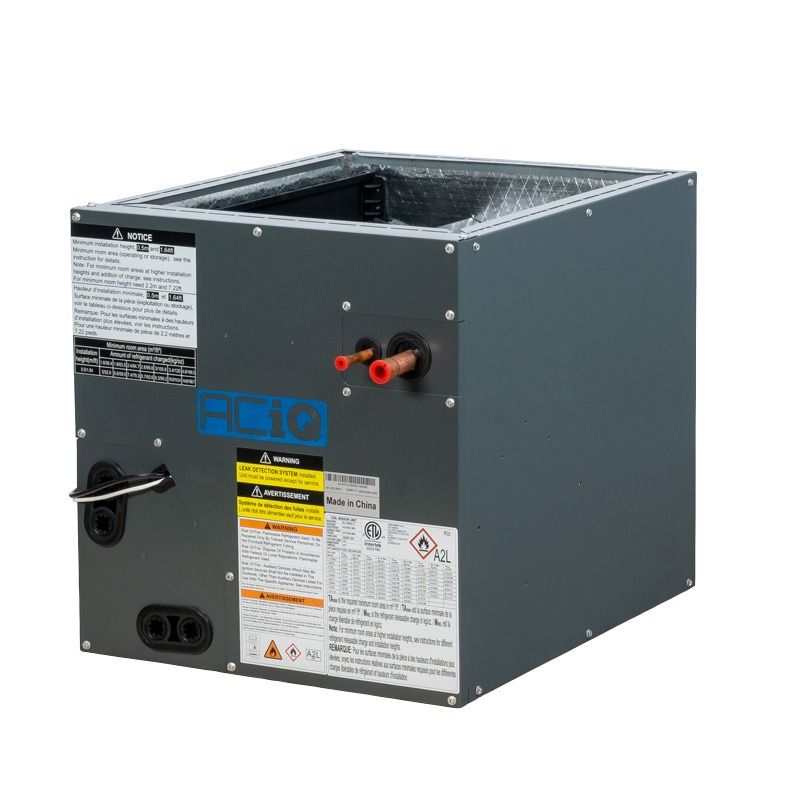

• Coil type: Cased evaporator coil (A-coil) with factory TXV
• Coil tonnage: 1.5 to 2.0 Ton
• Coil configuration: Multi-positional (upflow/downflow/horizontal)
• Coil refrigerant compatibility: R32
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Coil weight: 43 lbs

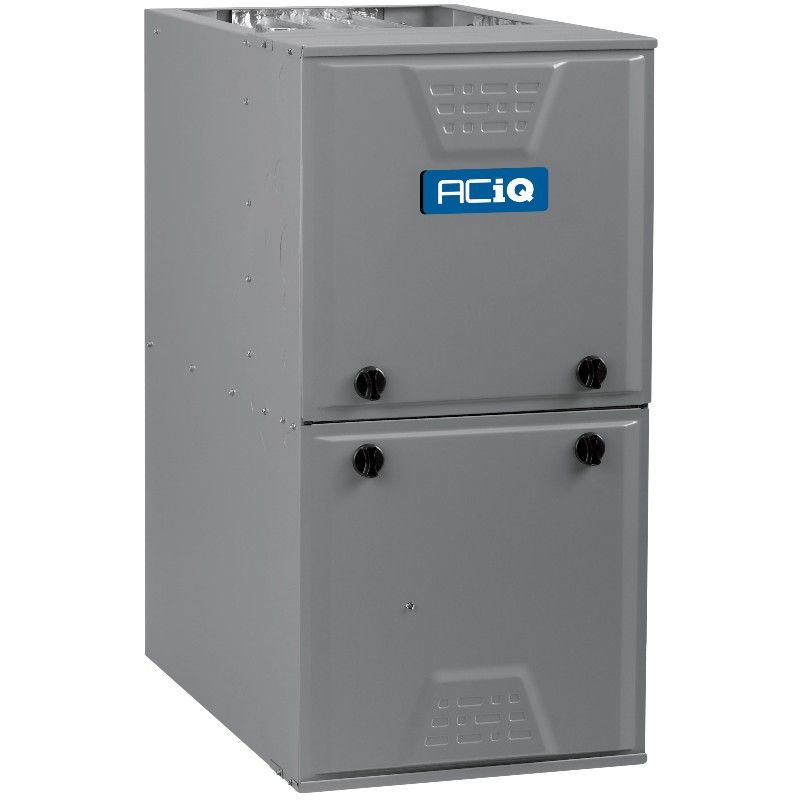

• Furnace type: Two-stage gas furnace (multi-positional)
• Furnace AFUE: 96%
• Furnace heating capacity: 60,000 BTU
• Furnace blower: Variable speed ECM (constant-torque)
• Furnace max CFM: 1280
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace electrical: 120 V, 1 Phase, 60 Hz
• Furnace burner stages: Two
• Furnace fuel type: Natural Gas (convertible to Propane with kit)
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace weight: 151 lbs
• Exhaust flue requirement (furnace): Plastic / PVC
• Installation note: Condenser must be paired with compatible indoor equipment; system includes R32 refrigerant leak mitigation kit
• Country of origin: China
• AHRI certificate number (furnace): 213148724
