Aciq AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0701716 1.5 ton 14.3 SEER2 80% AFUE 60,000 BTU furnace & AC system (Multi-positional)

Product Description

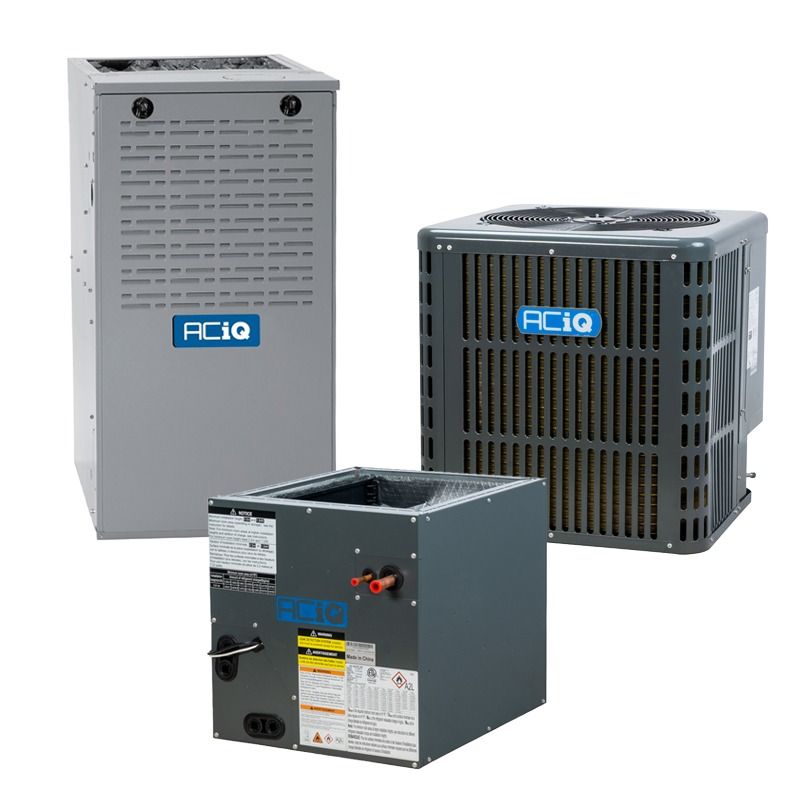

ACiQ AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0701716 is a split HVAC system bundle that includes a 1.5 ton 14.3 SEER2 R32 condenser, a multi-positional cased A-coil, and an 80% AFUE two-stage gas furnace. The condenser is pre-charged with R32 refrigerant and provides 18,000 BTU cooling at approximately 58 dBA. The evaporator coil is all-aluminum with a factory-installed TXV. The furnace delivers 66,000 BTU input with a communicating variable-speed ECM blower and supports upflow, downflow, or horizontal installation.

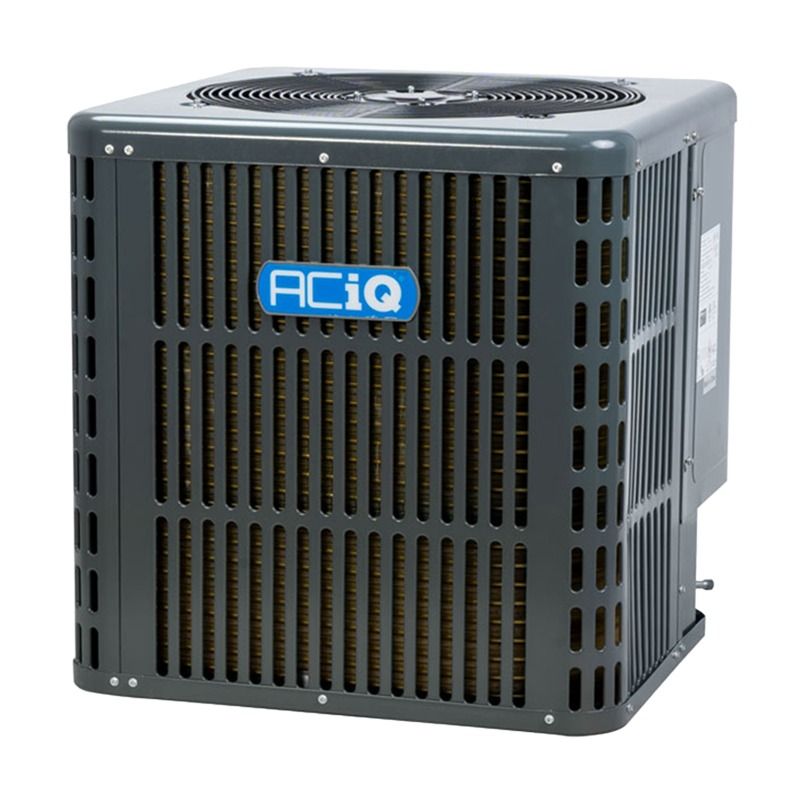

• Condenser: 1.5 ton (18,000 BTU), 14.3 SEER2, pre-charged with R32, ~58 dBA, rotary compressor
• Evaporator coil: multi-positional cased A-coil, all-aluminum construction, factory-installed TXV, 3/8" liquid and 3/4" suction connections
• Furnace: 66,000 BTU input, 80% AFUE, two-stage burner, communicating variable-speed ECM blower, multi-positional installation

Product Highlights

Complete split system with R32-charged condenser, all-aluminum TXV-equipped evaporator coil, and multi-positional two-stage gas furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0701716

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0701716
• System type: Split HVAC system (condenser, evaporator coil, furnace)
• Refrigerant: R32 (A2L)
• Cooling capacity: 18,000 BTU (1.5 Ton)
• SEER2: 14.3
• EER2: 12.2
• Condenser refrigerant charge: 45.86 oz
• Condenser decibel level: 58 dBA
• Condenser compressor type: Rotary
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser breaker requirements: Min 11 Amps / Max 15 Amps
• Condenser tonnage: 1.5 Ton
• Condenser dimensions (H x W x D): 25" x 23.62" x 23.62"
• Condenser weight: 123 lbs

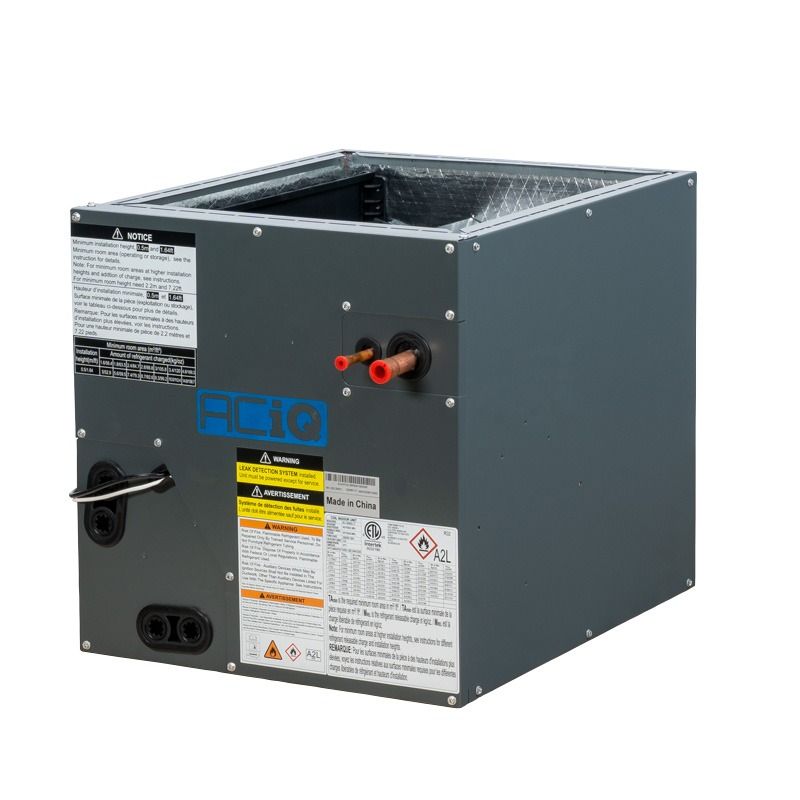

• Coil SKU: AC-I-1824ACL-17
• Coil type / style: A-coil, cased evaporator coil
• Coil configuration: Multi-positional (upflow/downflow/horizontal)
• Coil material: All-aluminum
• Coil liquid line: 3/8"
• Coil suction line: 3/4"
• Coil tonnage range: 1.5 to 2 Ton
• Coil dimensions (H x W x D): 18" x 17.5" x 21.02"
• Coil cabinet width: 17.5"
• Coil weight: 43 lbs
• Coil features: Factory-installed TXV

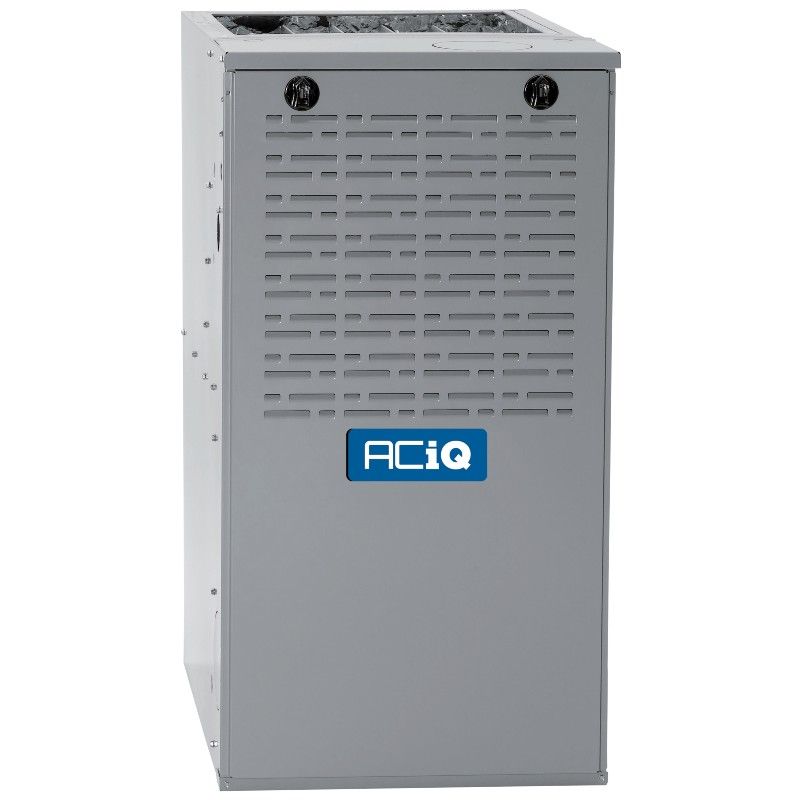

• Furnace SKU: G80CTL0701716
• Furnace efficiency (AFUE): 80%
• Furnace heating BTU (input): 66,000 BTU
• Furnace blower motor: Variable speed ECM (communicating)
• Furnace maximum CFM: 1375
• Furnace burner stages: Two
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural gas (field convertible to propane with optional LP kit)
• Furnace electrical: 115V 1 Phase 60 Hz
• Furnace dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Furnace weight: 126 lbs
• AHRI certificate number (furnace): 213148661
• System electrical requirements: 208/230V 1 Phase 60 Hz (condenser), 115V 1 Phase 60 Hz (furnace)
• System refrigerant compatibility notice: R32 (A2L) requires leak detection system and compatible indoor equipment; pairing with R32-compatible coil or air handler required
