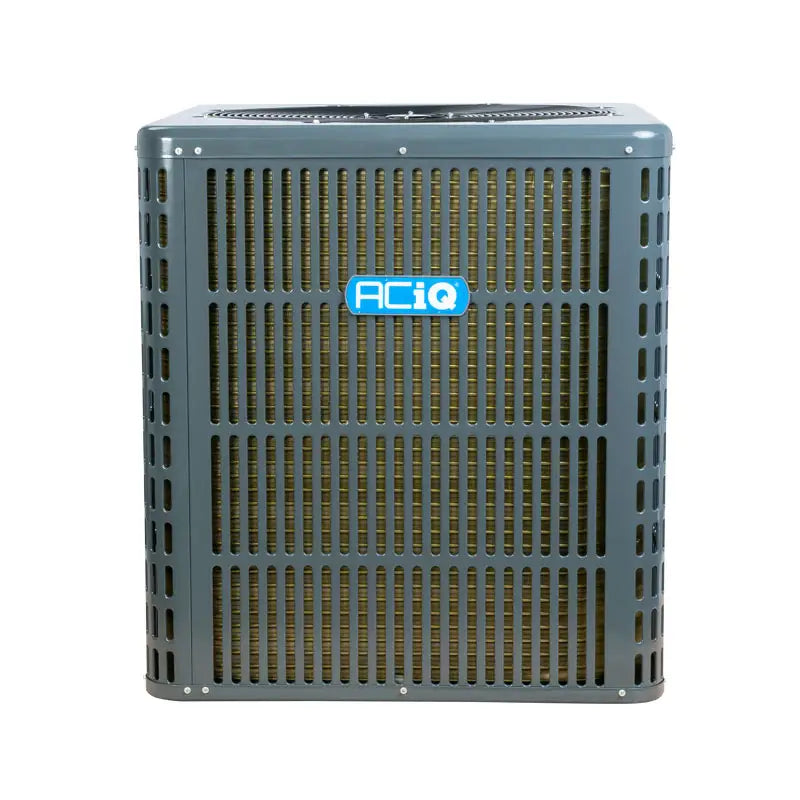

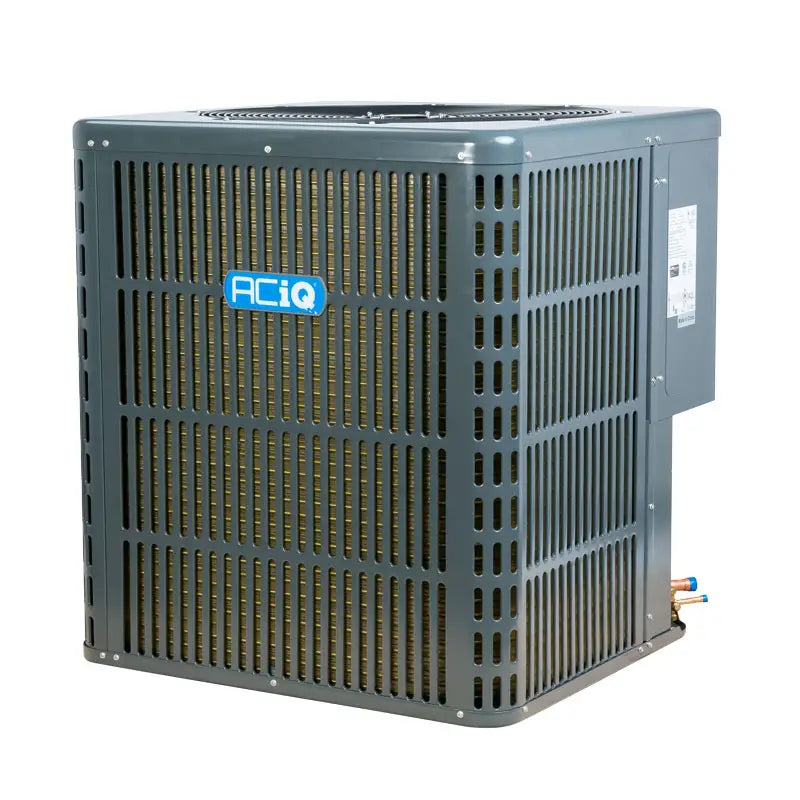

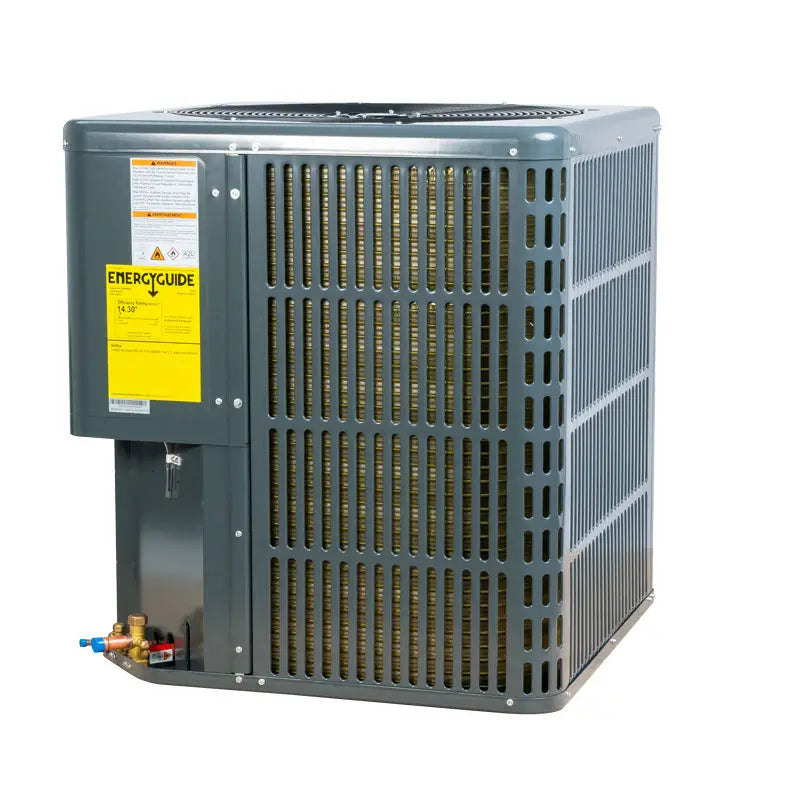

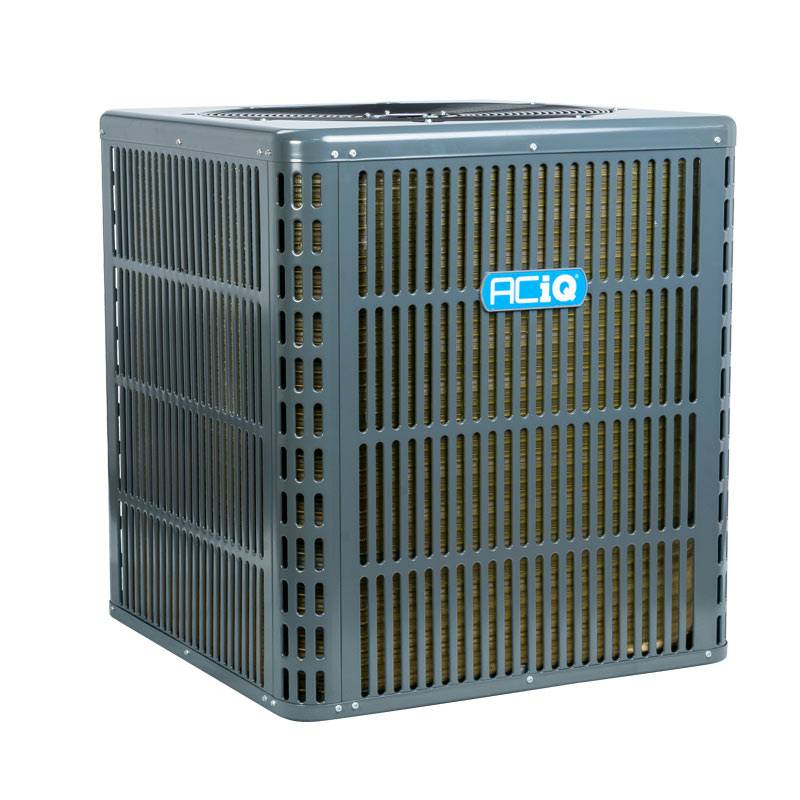

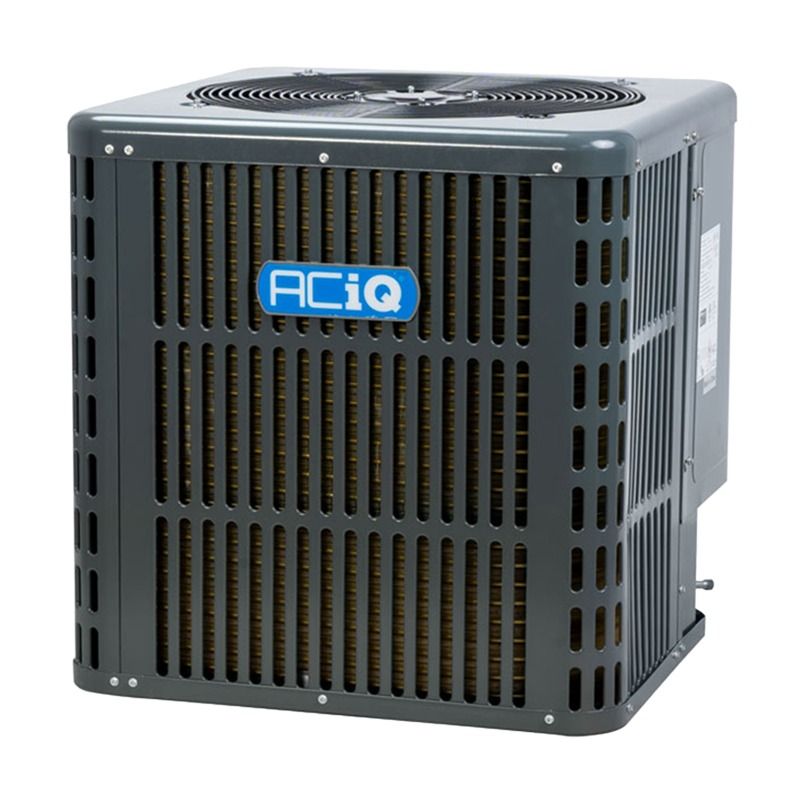

Aciq AC-I-18AC14 1.5 Ton 14.3 SEER2 central air conditioner condenser 18,000 BTU (1.5 Ton)

Product Description

Aciq AC-I-18AC14 is a 1.5 ton central air conditioner condenser rated at 14.3 SEER2 and provides 18,000 BTU of cooling capacity. It uses a rotary compressor, operates on 208–230V single-phase 60 Hz power, and is pre-charged with R32 refrigerant. The unit features a corrosion-resistant outdoor design, a reported sound level of 58 dB(A), and supports 3/8" liquid and 3/4" gas line connections for residential installation.

• 18,000 BTU cooling capacity, 1.5 ton with 14.3 SEER2 efficiency
• Rotary compressor, single-stage operation; electrical: 208–230V, 1 phase, 60 Hz
• Pre-charged with R32 refrigerant; liquid line 3/8" and gas line 3/4"; sound level 58 dB(A)

Product Highlights

1.5 ton outdoor condenser; 14.3 SEER2; R32 refrigerant

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14

Technical Specifications

• Brand: Aciq
• Model: AC-I-18AC14
• Manufacturer Part Number: AC-I-18AC14
• Tonnage: 1.5 Ton
• Cooling Capacity: 18,000 BTU
• SEER2 Rating: 14.3 SEER2
• Compressor Type: Rotary
• Compressor Stages: Single stage
• Refrigerant: R32
• Refrigerant Charge: 45.86 oz.
• Input Voltage: 208-230V
• Phase: 1 Phase
• Frequency: 60 Hz
• Sound Level: 58 dB(A)
• Liquid Line Size: 3/8"
• Gas/Suction Line Size: 3/4"
• Max Breaker Size: 15 Amps
• Min Breaker Size: 11 Amps
• Dimensions (W x D x H): 23.62" x 23.62" x 25.00"
• Weight: 117 lbs
• Operating Ambient Range: 5°F to 131°F
• Type: Air conditioner condenser (cooling-only)
