Aciq AC-I-18AC14 1.5 Ton 14.3 SEER2 Air Conditioner (17.5 in Multi-Positional Cased Coil) AC-I-1824ACL-17

Product Description

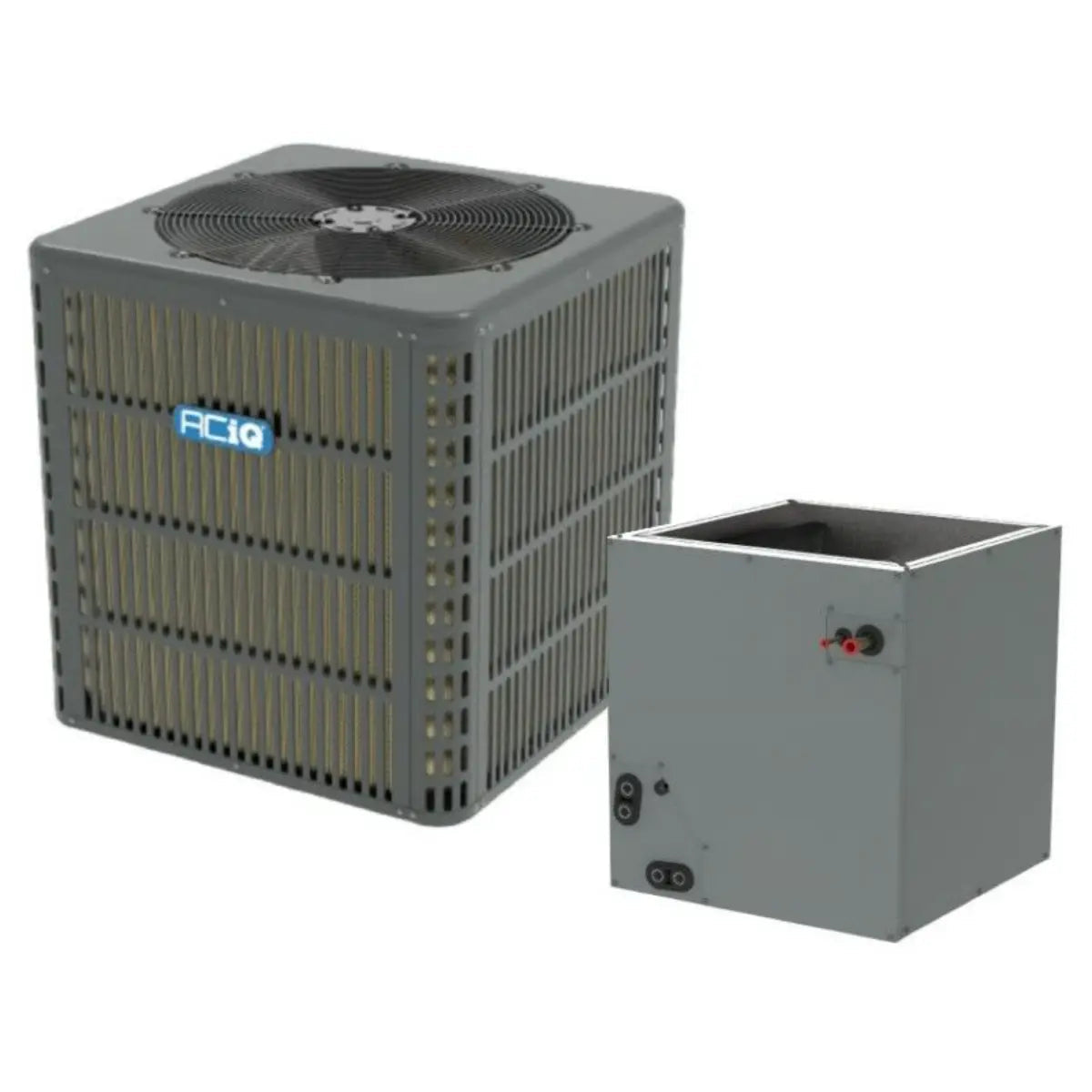

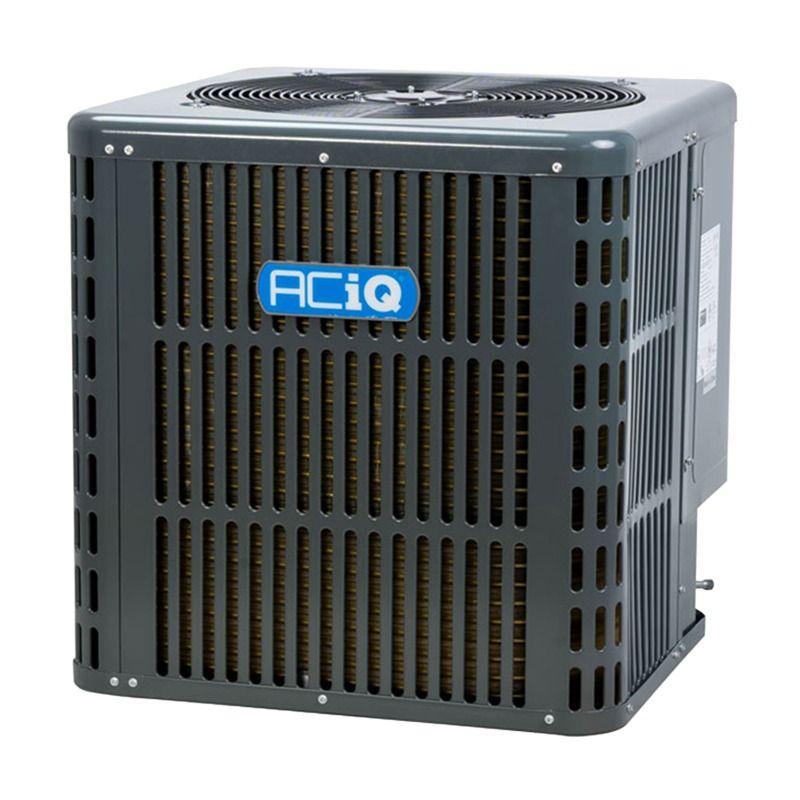

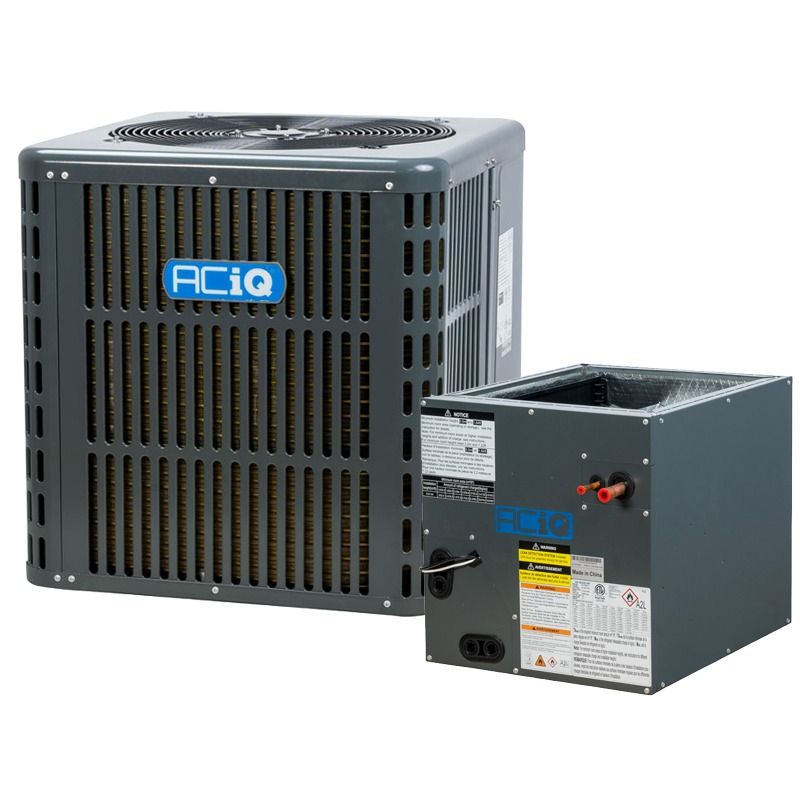

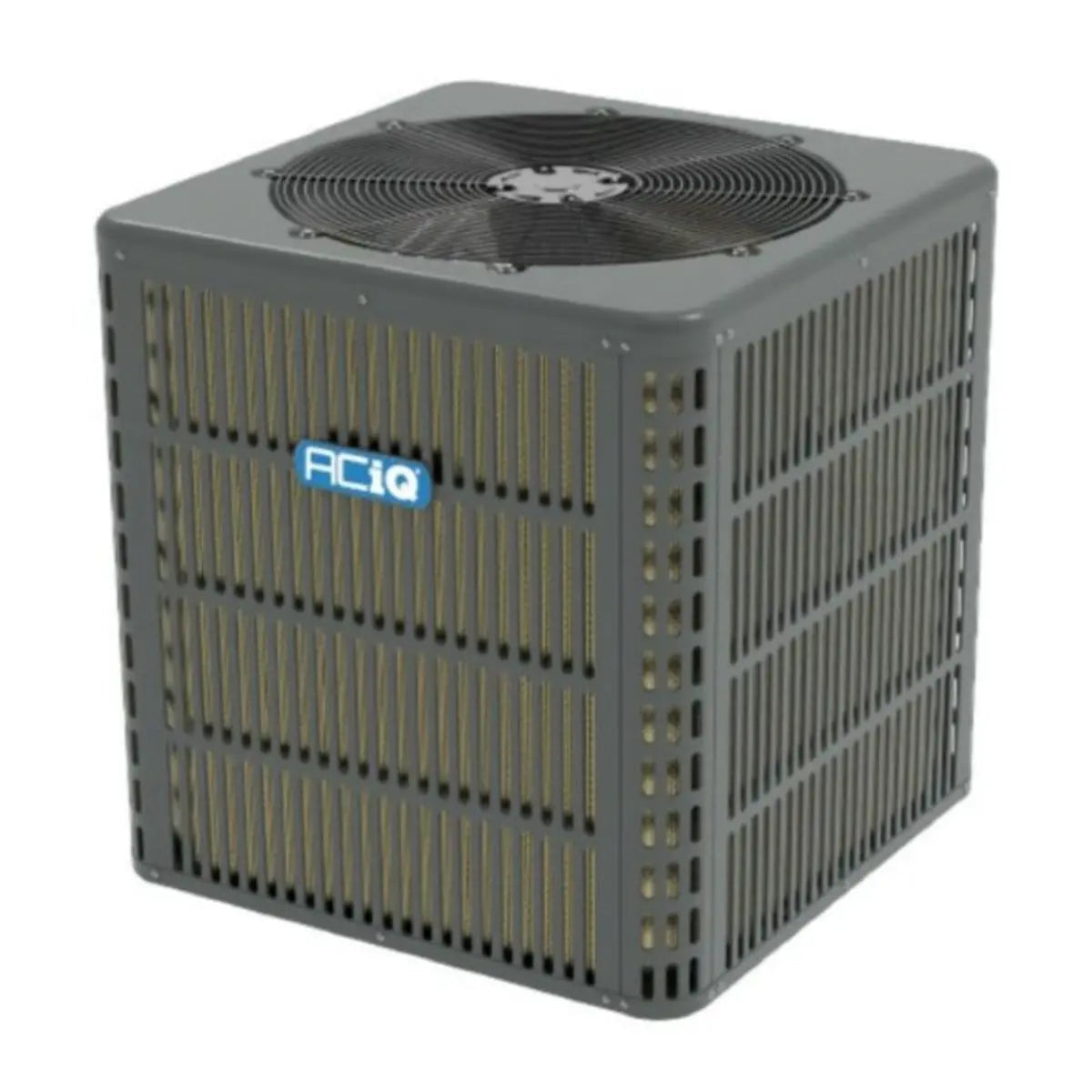

ACIQ AC-I-18AC14 / AC-I-1824ACL-17 is a matched outdoor condenser and 17.5 in multi-positional cased evaporator coil system rated at 1.5 ton (18,000 BTU) with 14.3 SEER2. The condenser is pre-charged with R32 refrigerant (45.86 oz.), uses a rotary single-stage compressor, and operates on 208/230 V, 1 phase, 60 Hz. The coil supports upflow, downflow, and horizontal installation, includes a factory-installed TXV and an R32 leak mitigation kit.

• 1.5 ton (18,000 BTU) condenser rated 14.3 SEER2; pre-charged with R32 refrigerant (45.86 oz.)
• 17.5 in multi-positional cased A-coil with factory-installed TXV and R32 leak mitigation kit; fits 1.5–2 ton systems
• Rotary single-stage compressor; electrical 208/230 V 1 Phase 60 Hz; outdoor sound rating 58 dBA

Product Highlights

Matched 1.5 ton R32 condenser and 17.5 in multi-positional cased coil, 14.3 SEER2, pre-charged, 208/230 V 1 Phase.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17

Technical Specifications

• Brand: ACIQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17
• Cooling Capacity: 18,000 BTU (1.5 Ton)
• SEER2: 14.3
• EER2: 12.2
• Refrigerant: R32
• Refrigerant Charge: 45.86 oz.
• Compressor Type: Rotary
• Stages: Single Stage
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Electrical: 208/230 V, 1 Phase, 60 Hz
• Min Breaker Size: 11 Amps
• Max Breaker Size: 15 Amps
• Outdoor Sound Level: 58 dBA
• Condenser Dimensions: 25 in H x 23.62 in W x 23.62 in D
• Condenser Weight: 123 lbs
• Coil Model: AC-I-1824ACL-17

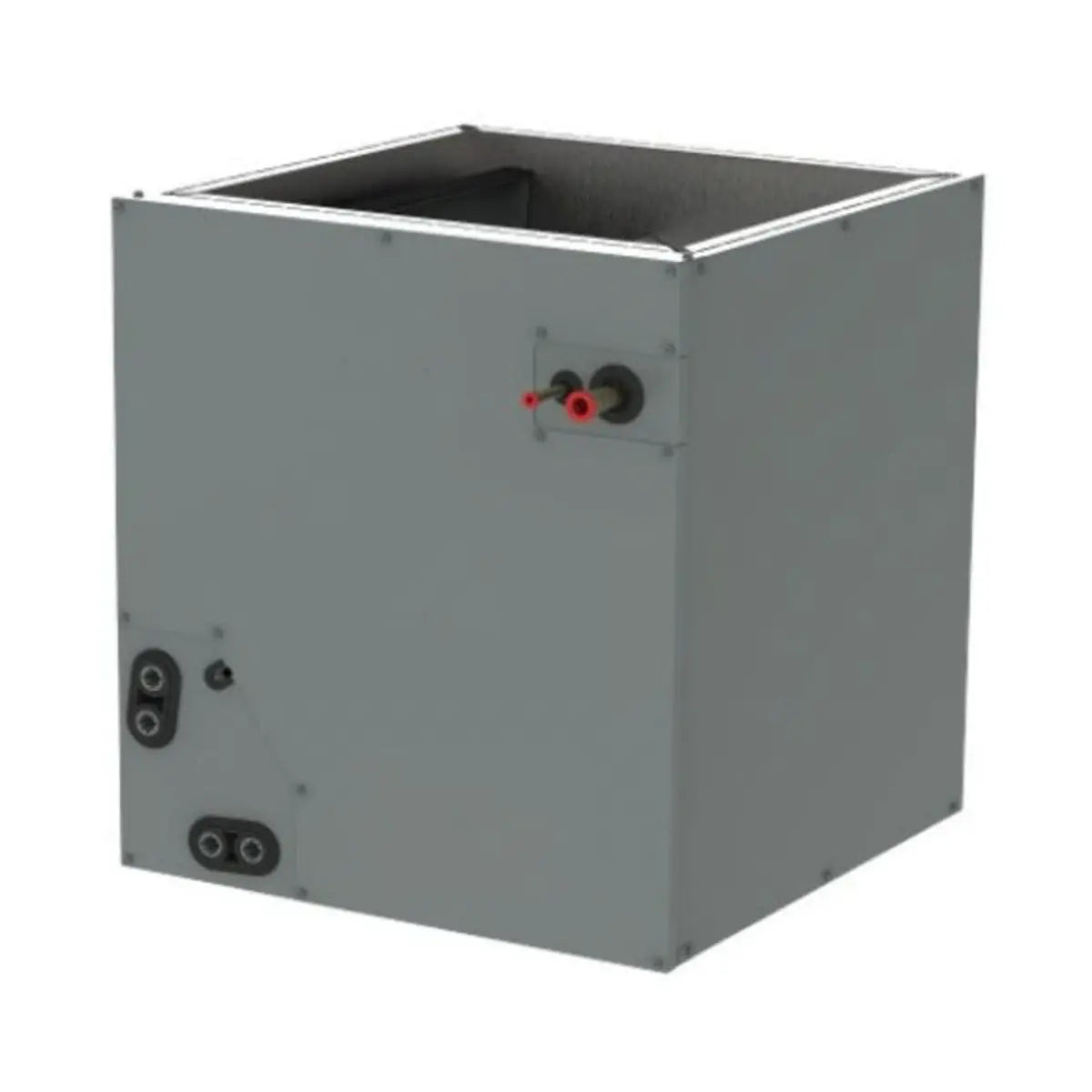

• Coil Type: Multi-positional cased A-coil (upflow, downflow, horizontal)
• Coil Tonnage: 1.5 to 2 Ton
• Coil Dimensions: 18 in H x 17.5 in W x 21.02 in D
• Coil Weight: 43 lbs
• Coil Features: All-aluminum construction; factory-installed TXV; R32 leak mitigation kit included
• Included Items: Outdoor condenser and 17.5 in cased evaporator coil; R32 leak mitigation kit
