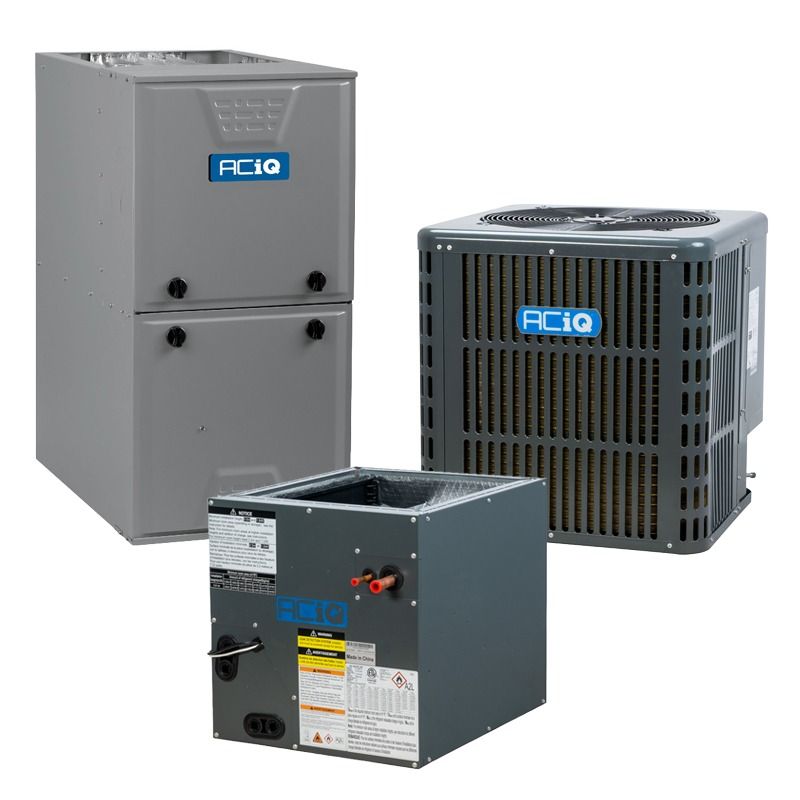

Aciq AC-I-18AC14 1.5 Ton 14.3 SEER2 96% AFUE 80,000 BTU Furnace and AC System (17.5 in) N96MSN0801716A

Product Description

The AciQ AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0801716A is a matched HVAC system combining a 1.5 ton R32 condenser, a 96% AFUE 80,000 BTU multi-positional gas furnace, and a 17.5 in multi-positional cased evaporator coil. The condenser is rated 14.3 SEER2 and pre-charged with R32 refrigerant, while the furnace uses an ECM blower and supports upflow, downflow, or horizontal installations. System components are AHRI certified.

• Matched 1.5 ton system: R32 condenser (14.3 SEER2, 12.2 EER2) with rotary compressor and pre-charged refrigerant
• Multi-positional furnace (96% AFUE) with ECM blower, single-stage burner, 80,000 BTU heating, and upflow/downflow/horizontal capability
• 17.5 in multi-positional cased evaporator coil sized for 1.5–2 ton systems; condenser electrical: 208/230V 1Ph 60Hz

Product Highlights

Matched 1.5 ton R32 condenser, 96% AFUE 80,000 BTU multi-positional furnace, 17.5 in multi-positional evaporator coil; AHRI and Energy Star certified components.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0801716A

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-18AC14 / AC-I-1824ACL-17 / N96MSN0801716A
• System Cooling Capacity: 1.5 Ton (18,000 BTU)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Noise Level: 58 dBA
• Condenser Compressor Type: Rotary
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Maximum Breaker Size: 15 Amps
• Condenser Minimum Breaker Size: 11 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Furnace Heating Capacity: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 1665
• Furnace Burner Stages: Single
• Fuel Type: Natural Gas (field-convertible to LP with optional kit)
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Coil Configuration: Multi-positional cased evaporator coil
• Coil Dimensions (W x H x D): 17.5 in x 18 in x 21.02 in
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Tonnage Range: 1.5 to 2 Ton
• Energy Star Certified: Yes (furnace)
• AHRI Certificate Number (Furnace): 213148760
• Furnace SKU: N96MSN0801716A
• Condenser SKU: AC-I-18AC14
• Coil SKU: AC-I-1824ACL-17
• Requirements: Requires compatible indoor equipment; condenser requires 208/230V 1Ph 60Hz electrical; furnace requires plastic/PVC flue venting for 90%+ efficiency
