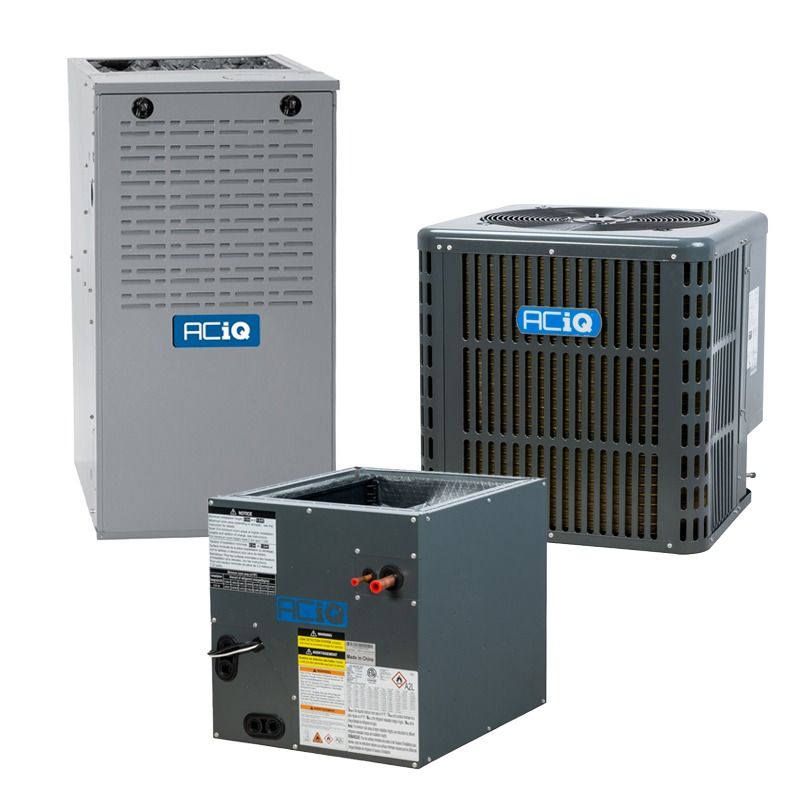

Aciq AC-I-18AC14 1.5 Ton 14.3 SEER2 80% AFUE 40,000 BTU Furnace & AC System (Multi-Positional) G80CTL0451712

Product Description

The AciQ AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0451712 is a matched 1.5 ton split HVAC system that combines an R32 pre-charged condenser, a multi-positional two-stage 80% AFUE gas furnace with a variable-speed ECM blower, and a cased all-aluminum evaporator coil sized for 1.5–2 ton systems. The condenser is rated 14.3 SEER2 and operates on 208/230V 1 phase; the furnace uses 115V and features direct ignition and a metal exhaust flue requirement.

• Condenser: 1.5 ton (18,000 BTU) cooling capacity, R32 pre-charged (45.86 oz.), 14.3 SEER2, single-stage rotary compressor, 208/230V 1 phase
• Furnace: Two-stage gas burner, 80% AFUE (44,000 BTU input / 35,000 BTU output), variable-speed ECM blower, direct ignition, multi-positional configuration
• Evaporator coil: All-aluminum cased A-coil for 1.5–2 ton systems with factory-installed TXV; system includes matched condenser, coil, and 80% two-stage furnace

Product Highlights

Matched three-piece R32 split system; 14.3 SEER2 cooling; multi-positional installation; factory TXV and variable-speed furnace blower

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0451712
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Model / MPN (system): AC-I-18AC14 / AC-I-1824ACL-17 / G80CTL0451712
• Type: Whole house air conditioner and heater (split system)
• System Cooling Capacity: 1.5 Ton (18,000 BTU)
• SEER2: 14.3
• EER2: 12.2
• Condenser Refrigerant: R32 (pre-charged, 45.86 oz.)
• Condenser Sound Level: 58 dBA (approx.)
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker: 15 Amps
• Condenser Min Breaker: 11 Amps
• Condenser Compressor Type: Rotary
• Condenser Stages: Single Stage
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Cool Speeds: Single Stage
• Evaporator Coil Tonnage: 1.5 to 2 Ton
• Evaporator Coil Configuration: Multi-positional (A-coil, cased)
• Evaporator Coil Material: All-aluminum construction
• Evaporator Coil Features: Factory-installed TXV; R32 compatibility; leak mitigation kit included
• Furnace SKU: G80CTL0451712
• Furnace Input BTU: 44,000 BTU
• Furnace Output BTU: 35,000 BTU (80% AFUE)
• Furnace AFUE: 80%
• Furnace Blower Motor: Variable Speed - ECM
• Furnace Burner Stages: Two
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with LP kit)
• Furnace Exhaust Flue Requirement: Metal
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Evaporator Coil SKU: AC-I-1824ACL-17
• Included Items: Outdoor condenser, indoor evaporator coil, 80% two-stage gas furnace
• AHRI Certificate (furnace): 213148658
• Replaces / Equivalents: Carrier: 58TP0A045V14--12; Tempstar: F80CTL0451712A; Bryant: 880TA36045C17
• Country of Origin: China
