Aciq AC-I-18AC14 1.5 Ton 14.3 SEER2 40,000 BTU Furnace and AC System (Multi-Positional) N80MSN0451714A

Product Description

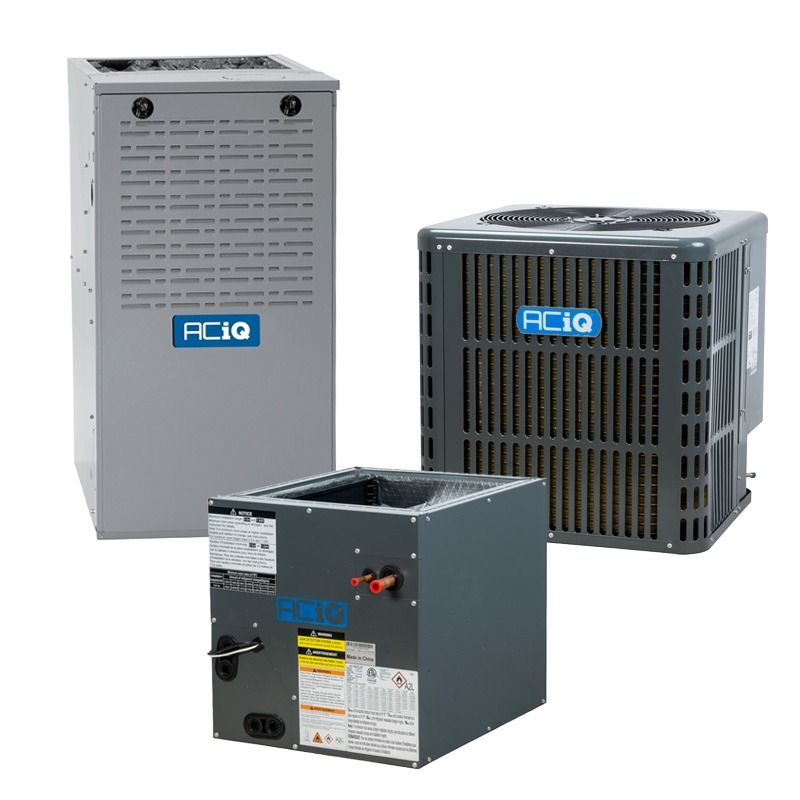

Aciq AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0451714A is a matched HVAC system that includes a 1.5 ton 14.3 SEER2 R32 outdoor condenser, a 44,000 BTU 80% AFUE multi-positional gas furnace, and a 1.5–2 ton cased evaporator coil with factory-installed TXV. The condenser is pre-charged with R32 and the furnace features a multi-speed ECM blower and silicon nitride hot surface ignitor for direct ignition. The system supports upflow, downflow, and horizontal installation.

• Matched system: AC-I-18AC14 condenser (1.5 Ton, 14.3 SEER2), N80MSN0451714A furnace (44,000 BTU, 80% AFUE), AC-I-1824ACL-17 evaporator coil (1.5–2 Ton, factory TXV)
• Condenser pre-charged with R32 refrigerant (45.86 oz.) and includes leak mitigation requirement for compatible indoor equipment; rotary compressor, ~58 dBA
• Furnace multi-positional design with multi-speed ECM blower, direct ignition silicon nitride hot surface ignitor, field-convertible to propane with optional kit

Product Highlights

Matched R32 1.5 ton system with factory TXV coil and multi-positional furnace and coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0451714A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-18AC14 / AC-I-1824ACL-17 / N80MSN0451714A
• System Components: AC-I-18AC14 condenser (1.5 Ton, 14.3 SEER2), N80MSN0451714A furnace (44,000 BTU, 80% AFUE), AC-I-1824ACL-17 evaporator coil (1.5-2 Ton, 17.5 in width)
• Condenser Cooling Capacity: 18,000 BTU (1.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 12.2
• Condenser Refrigerant: R32 (pre-charged, 45.86 oz.)
• Condenser Compressor Type: Rotary
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Decibel Level: 58 dBA
• Furnace Heating BTU Input: 44,000 BTU
• Furnace AFUE: 80%
• Furnace Output BTU: 35,200 BTU (approx.)
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi-speed ECM
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Coil Tonnage: 1.5 to 2 Ton
• Coil Configuration: Multi-positional, cased, factory-installed TXV
• Coil Construction: All-aluminum
• Requirements: Condenser must be paired with compatible R32 evaporator coil or air handler with leak detection system; 208/230V electrical (verify branch circuit and breaker sizing per local code and product data).
• Exhaust Flue Requirement (Furnace): Metal
• Furnace Dimensions (H x W x D): 33.33 in x 17.5 in x 29 in
• Condenser Dimensions (H x W x D): 25 in x 23.62 in x 23.62 in
• Coil Dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Furnace Weight (lbs): 119
• Condenser Weight (lbs): 123
• Coil Weight (lbs): 43
• Notes on Refrigerant: R32 is an A2L refrigerant; requires refrigerant leakage detection system and pairing with compatible indoor equipment
