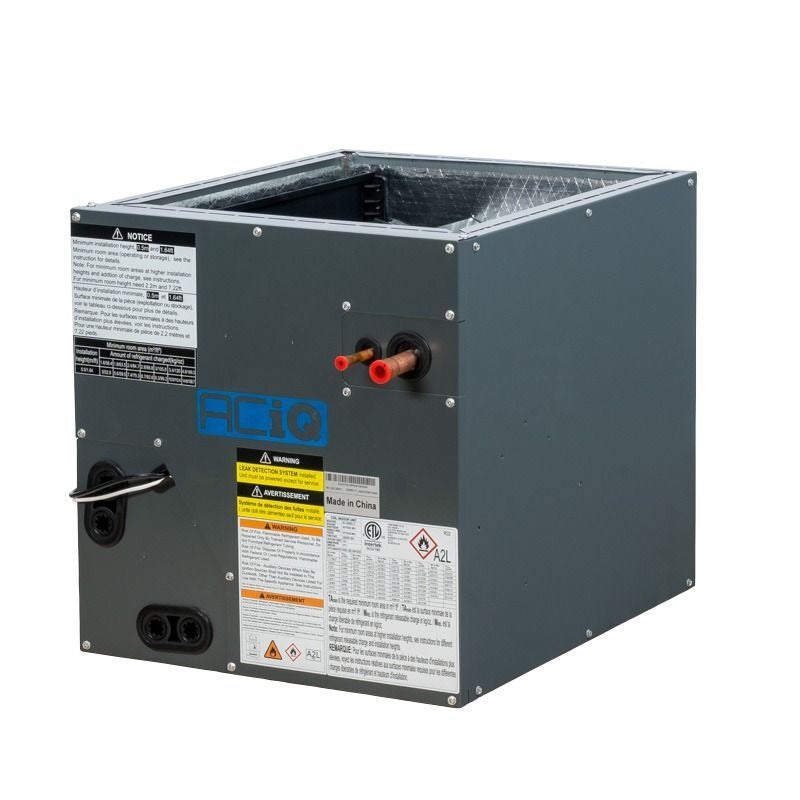

Aciq AC-I-1824ACL-17 1.5 to 2 Ton Multi-Positional Evaporator Coil (17.5 in Width)

Product Description

The Aciq AC-I-1824ACL-17 is a cased evaporator coil designed for 1.5 to 2 ton HVAC systems and multi-positional installation. It features all-aluminum construction, a factory-installed thermal expansion valve (TXV), and compatibility with R32 refrigerant including a leak mitigation control kit. The unit measures 18 in H x 17.5 in W x 21.02 in D, uses 3/8 in liquid and 3/4 in suction lines, and is AHRI certified.

• Multi-positional configuration for upflow, downflow, and horizontal installations.
• All-aluminum cased A-coil with 17.5 in cabinet width to align with common furnace sizes.
• Factory-installed TXV; compatible with R32 refrigerant and includes leak mitigation control kit; AHRI certified.

Product Highlights

1.5–2 ton capacity; 17.5 in cabinet width; all-aluminum cased A-coil; factory TXV; R32 compatible; AHRI certified;

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-1824ACL-17

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: AC-I-1824ACL-17
• Configuration: Multi-Positional
• Style: A-Coil
• Cabinet Type: Cased
• Construction: All-aluminum
• Tonnage: 1.5 Ton to 2 Ton
• Refrigerant: R32
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Height: 18 in
• Width: 17.5 in
• Depth: 21.02 in
• Dimensions (H x W x D): 18 in x 17.5 in x 21.02 in
• Weight: 43 lb
• Factory Installed Components: Thermal expansion valve (TXV)
• Leak Mitigation Control Kit: Included
• Certifications: AHRI certified
