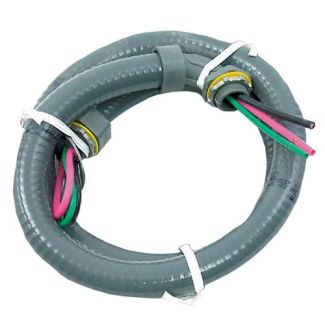

Aciq 84134 Ac Disconnect Whip 3/4 in 4 Ft 8 Gauge Non-metallic

Product Description

The ACIQ 84134 is a pre-assembled liquidtight AC disconnect whip designed for connecting air conditioning condensing units to their power supply disconnect. Built in a 3/4 inch trade size and measuring 4 feet in length, it uses 8 gauge THHN/THWN conductors in black, red, and green. The assembly ships ready to install, eliminating field-assembly time on the condenser connection. One straight non-metallic liquidtight connector and one 90-degree non-metallic liquidtight connector are included, giving installers flexibility for straight or angled entry into the disconnect or unit whip port. Manufactured in the USA.

This whip is suited for residential and light commercial HVAC installations where a pre-made, code-ready connection between the condensing unit and the local disconnect is required. The liquidtight non-metallic conduit protects conductors from moisture, UV exposure, and mechanical abrasion in outdoor equipment installations. Electricians and HVAC technicians use this style of whip as a time-saving alternative to field-cutting and terminating individual conductors at the condensing unit connection point.

Key Features

• Pre-assembled 3/4 inch trade size liquidtight non-metallic whip — ready to install out of the box
• 4-foot length accommodates standard disconnect-to-unit distances
• 8 gauge THHN/THWN conductors rated for wet and dry locations
• Three conductors included: black, red, and green
• Includes one straight and one 90-degree non-metallic liquidtight connector for flexible installation orientation
• Made in USA

Compatibility

Designed as a pre-assembled OEM-style AC disconnect whip for residential and light commercial air conditioning condensing units requiring a 3/4 inch liquidtight non-metallic conduit connection.

Installation Notes

This whip is typically installed by a licensed electrician or HVAC technician in accordance with NEC Article 440 requirements for air conditioning equipment. Always disconnect and lock out power at the main panel before terminating conductors at the disconnect or condensing unit. Verify that conductor gauge and conduit trade size are compatible with the equipment nameplate ampacity ratings before completing the connection. Ensure liquidtight connectors are fully seated and tightened to maintain the moisture-resistant integrity of the assembly in outdoor applications.

Technical Specifications

• Conduit Trade Size: 3/4 inch
• Length: 4 feet
• Conductor Gauge: 8 AWG
• Conductor Type: THHN/THWN
• Number of Conductors: 3 (black, red, green)
• Connector Type: Non-metallic liquidtight (1 straight, 1 90-degree)
• Conduit Material: Non-metallic liquidtight
• Country of Origin: USA

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: 84134
