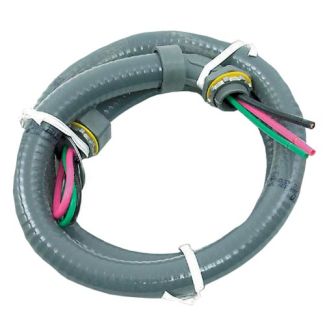

Aciq 84132 Electrical Whip 10 Awg Metallic Liquid-tight

Product Description

The ACIQ 84132 is a pre-assembled metallic electrical whip designed to deliver a code-compliant power connection for HVAC condensing units, mini splits, and other outdoor electrical equipment. Built with 10 AWG THHN/THWN conductors housed in liquid-tight metallic conduit, it provides durable protection against moisture, vibration, and mechanical stress. At 4 feet in length with a 0.5 inch trade-size conduit, it ships factory-assembled with connectors already installed, eliminating field fabrication time. Color-coded conductors — black, red, and green — simplify termination and reduce wiring errors during installation.

This whip is suited for residential and light commercial HVAC applications where a flexible, liquid-tight final connection is required between a disconnect box and an outdoor condensing unit or mini split. The included connector set — one straight and one 90-degree non-metallic liquid-tight connector — gives installers flexibility to route the whip in tight equipment bays or along wall-mounted disconnects. It is a common final-connection component in split-system air conditioning and heat pump installations.

Key Features

• Pre-assembled with factory-installed connectors for faster field installation
• 10 AWG THHN/THWN conductors rated for wet and dry locations
• Liquid-tight metallic conduit body resists moisture, UV exposure, and mechanical damage
• Includes one straight and one 90-degree non-metallic liquid-tight connector for flexible routing
• Color-coded conductors (black, red, green) for straightforward termination
• 0.5 inch trade-size conduit at 4 feet total length suits standard HVAC disconnect-to-unit runs

Compatibility

Designed as a ready-to-install electrical whip for residential and light commercial HVAC condensing units, mini splits, and outdoor electrical equipment requiring a 0.5 inch liquid-tight metallic conduit connection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out power at the main panel and the local disconnect before making any connections. Verify that the circuit breaker or fuse sizing matches the equipment nameplate requirements before energizing. Do not exceed the rated conductor ampacity for the connected load.

Technical Specifications

• Conduit Trade Size: 0.5 inch
• Length: 4 feet
• Wire Gauge: 10 AWG
• Conductor Types: THHN/THWN
• Conductors Included: Black, Red, Green
• Connectors Included: 1 straight non-metallic liquid-tight, 1 90-degree non-metallic liquid-tight
• Conduit Type: Liquid-tight metallic flexible conduit

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: 84132
