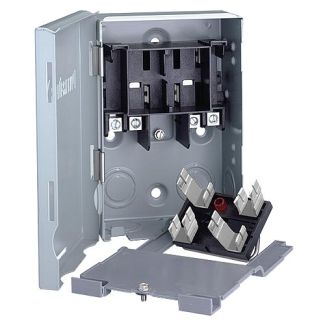

Aciq 83396 Fusible Disconnect Switch 30 Amp Outdoor

Product Description

The ACIQ 83396 is a 30-amp fusible disconnect switch rated for outdoor installation. It provides a dedicated power shutoff point for HVAC equipment and accepts fuses to deliver integrated overcurrent protection against short circuits and overloads. Designed for smaller systems where a reliable, weather-resistant disconnect is required, this switch meets standard electrical code requirements for a serviceable shutoff point within sight of the equipment. Licensed electricians and HVAC technicians install this type of disconnect as part of routine system commissioning and replacement work.

The 83396 is suited for residential and light commercial HVAC applications including ductless mini-split systems, small split-system condensers, and other outdoor electrical equipment requiring a fused disconnect. The outdoor-rated enclosure is built to withstand weather and environmental exposure typical of rooftop and ground-level installations. Its quick-access design reduces time spent during initial installation and routine service calls.

Key Features

• 30-amp capacity rated for mini-splits, small condensers, and light-duty HVAC loads
• Accepts standard fuses for integrated overcurrent protection
• Outdoor-rated enclosure designed for weather and harsh-condition exposure
• Provides a code-compliant, visible power shutoff point for maintenance and emergency shutdowns
• Quick-access panel simplifies installation and service

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for residential and light commercial HVAC systems requiring a 30-amp fused shutoff.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off power at the main panel before handling any wiring connections. Mount the disconnect within sight of the equipment it serves as required by NEC Article 440. Do not exceed the 30-amp rated capacity of the switch or install fuses rated above the equipment nameplate requirement.

Technical Specifications

• Amperage: 30 amps
• Enclosure Rating: Outdoor rated
• Fuse Compatible: Yes

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: 83396
