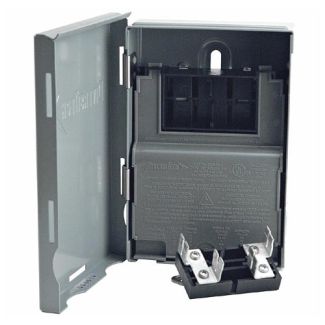

Aciq 83335 Non-fused Disconnect Switch 60 Amp

Product Description

The ACIQ 83335 is a 60-amp non-fused disconnect switch rated for outdoor installation. It provides a dedicated means to completely cut power to an HVAC circuit or other high-voltage equipment during service, inspection, or repair. Rated at 60 amps, it handles most residential and light commercial loads. The non-fused design means circuit overcurrent protection is handled upstream at the panel, keeping this unit focused solely on providing a reliable disconnecting means. Licensed electricians and HVAC technicians install this type of switch as a code-required service point near condensing units and heat pumps.

This disconnect switch is suited for outdoor installations adjacent to air conditioners, heat pumps, mini-split condensers, and other outdoor electrical equipment. Its enclosure is built to withstand exposure to weather, making it appropriate for mounting near condensing units in residential and light commercial settings. It serves as the local disconnect required by the National Electrical Code (NEC) within sight of motor-driven HVAC equipment.

Key Features

• 60-amp capacity handles most residential and light commercial HVAC loads
• Non-fused design relies on upstream panel breakers for overcurrent protection
• Outdoor-rated enclosure withstands weather exposure near condensers and heat pumps
• Provides a dedicated, visible disconnecting means for service technicians
• Designed to meet NEC requirements for disconnecting means on HVAC equipment

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for outdoor residential and light commercial HVAC equipment including air conditioners, heat pumps, and mini-split condensers requiring a 60-amp non-fused disconnect.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off power at the main panel before wiring the disconnect. The disconnect must be mounted within sight of the equipment it serves, as required by NEC Article 430 and related HVAC equipment sections. Verify conductor sizing and enclosure ratings are appropriate for the installation environment before mounting.

Technical Specifications

• Amperage: 60 amps
• Fuse Type: Non-fused
• Installation Environment: Outdoor rated

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: 83335
