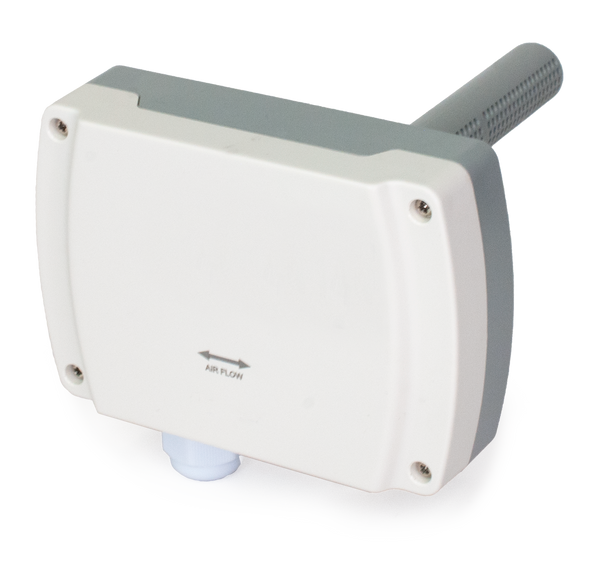

Aci VOC-D Voc, Duct Mount, 0-1000 Ppb, 4-20 Ma and 0-10 Vdc, Modbus Rs-485

Product Description

The ACI VOC-D measures VOC levels and communicates them back to the BAS to help users adjust ventilation and maintain proper IAQ levels. It utilizes a high-performance metal oxide sensor and outputs TVOC levels in a range from 0-1000 ppb. Equipped with both analog and RS485 Modbus RTU outputs.

• Applications: VOC Measurements for IAQ (indoor air quality)
• Output Signal: Voltage, Current
• Communication Protocol: Modbus RTU; EIA RS-485

Product Highlights

The VOC-D is ideal for measuring VOC levels in various applications, including greenhouses, laboratories, food and beverage, IAQ, parking garages, agricultural, and transportation.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: VOC-D
• Country of Origin: Unknown

Technical Specifications

• Display: No
• Measurement Range: 0 - 1,000 ppm
• Application: Greenhouse,Laboratory,Food & Beverage,IAQ,Parking Garage,Agricultural,Transportation
• Output Signal: Voltage,Current
• Supply Voltage: 16-28VAC/16-35VDC (Reverse Polarity Protection)
• Sensor Type: Metal Oxide Semiconductor
• Sensing Range: 0-1000 ppb TVOC (Isobutene)
• Output/Load Resistance: 4-20 mA: 500 Ohms maximum (Default) | 0-10 VDC: 2K Ohms Minimum
• Communication Protocol: Modbus RTU; EIA RS-485
• Relay: 1 SPDT, N.O. rated 3A @ 30VDC, 3A @250VAC
• Relay Trip Point: 230ppb
• Response Time: <5 seconds
• Warm Up Time: 15 minutes
• Connections / Wire Size: Screw Terminal Blocks / 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
• Terminal Block Torque Rating: 0.45 lbf-in (0.5 Nm) nominal
• Operating Temperature Range: 32 to 122 , ACI VOC-D VOC, Duct Mount, 0-1000 Ppb, 4-20 Ma and 0-10 Vdc, Modbus Rs-485 measures VOC levels and communicates them back to the BAS to help users adjust ventilation and maintain proper IAQ levels. It utilizes a high-performance metal oxide sensor and outputs TVOC levels in a range from 0-1000 ppb. Equipped with both analog and RS485 Modbus RTU outputs.
• bullet_points: ['Applications: VOC Measurements for IAQ (indoor air quality)', 'Output Signal: Voltage, Current', 'Communication Protocol: Modbus RTU; EIA RS-485']
• product_highlights: The VOC-D is ideal for measuring VOC levels in various applications, including greenhouses, laboratories, food and beverage, IAQ, parking garages, agricultural, and transportation.
