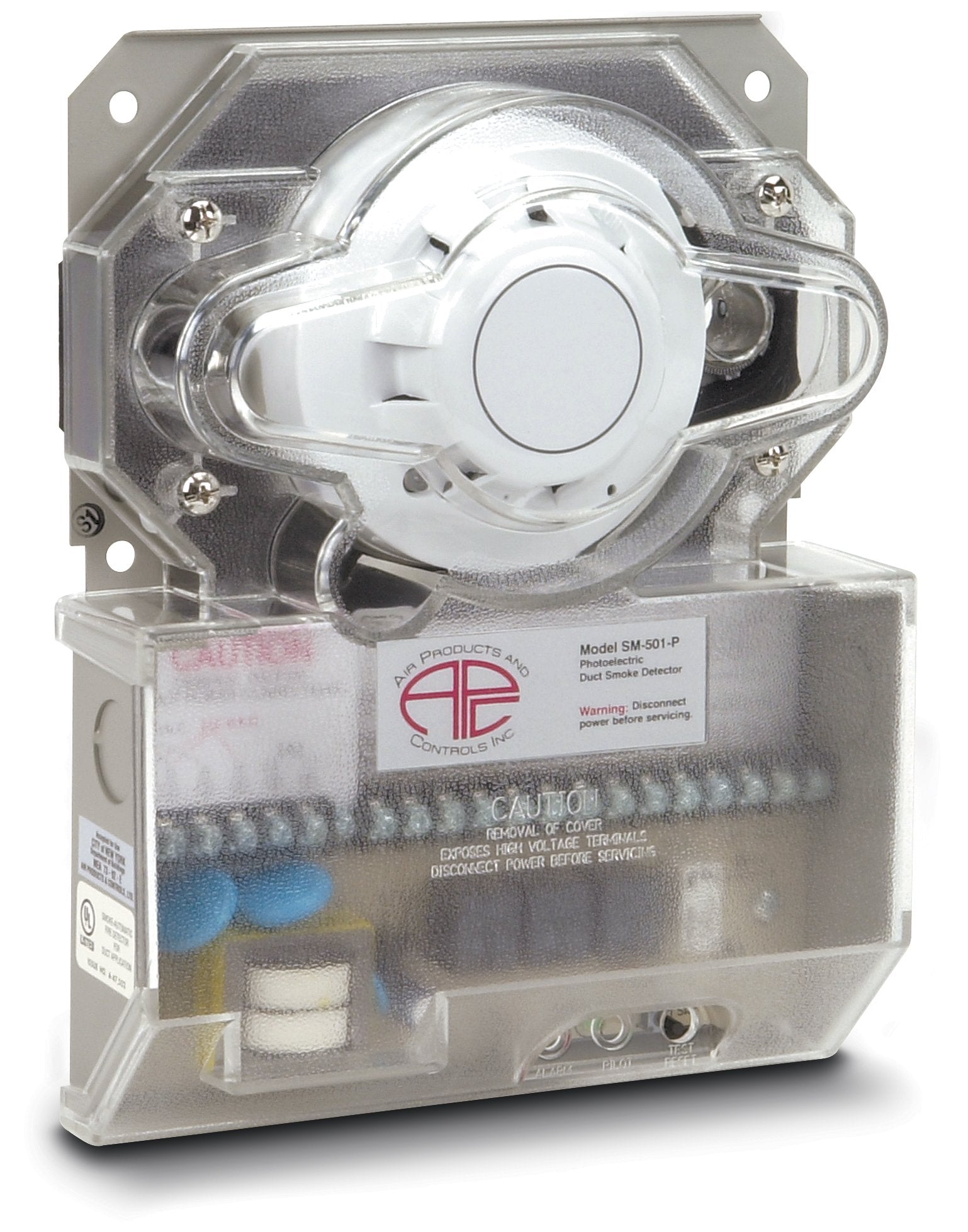

ACI SM-501-P DUCT/SMOKE DETECTOR PHOTOELECT

Product Description

The ACI SM-501-P duct smoke detector is designed for the early detection of smoke and combustion products in the air moving through HVAC ducts. It is suitable for use in commercial, industrial, and residential settings. This model helps prevent smoke re-circulation through air handling systems, fans, and blowers. The SM-501-P meets local regulations and NFPA standards for duct smoke detectors. It includes output terminals for remote accessories like horns, strobes, and status indicators.

• Detects smoke in air handling systems.
• Includes a standard exhaust tube length of seven inches.
• Features a manual test/reset switch and alarm indicators.

Product Highlights

This model is efficient in detecting smoke and ensures a safer environment by preventing the spread of smoke. It features easy mounting and a compact design that simplifies installation.

Product Information

Standard Information

• Brand: ACI
• MPN: SM-501-P

Technical Specifications

• Item Number: SM-501-P
• Alarm Contacts: Two sets of 10A Form C
• Trouble Contacts: One set of 10A Form C
• Installation Options: Four standard lengths for sampling tubes (1', 2.5', 5', 10')
• Operating Voltage: Compatible with various setups
