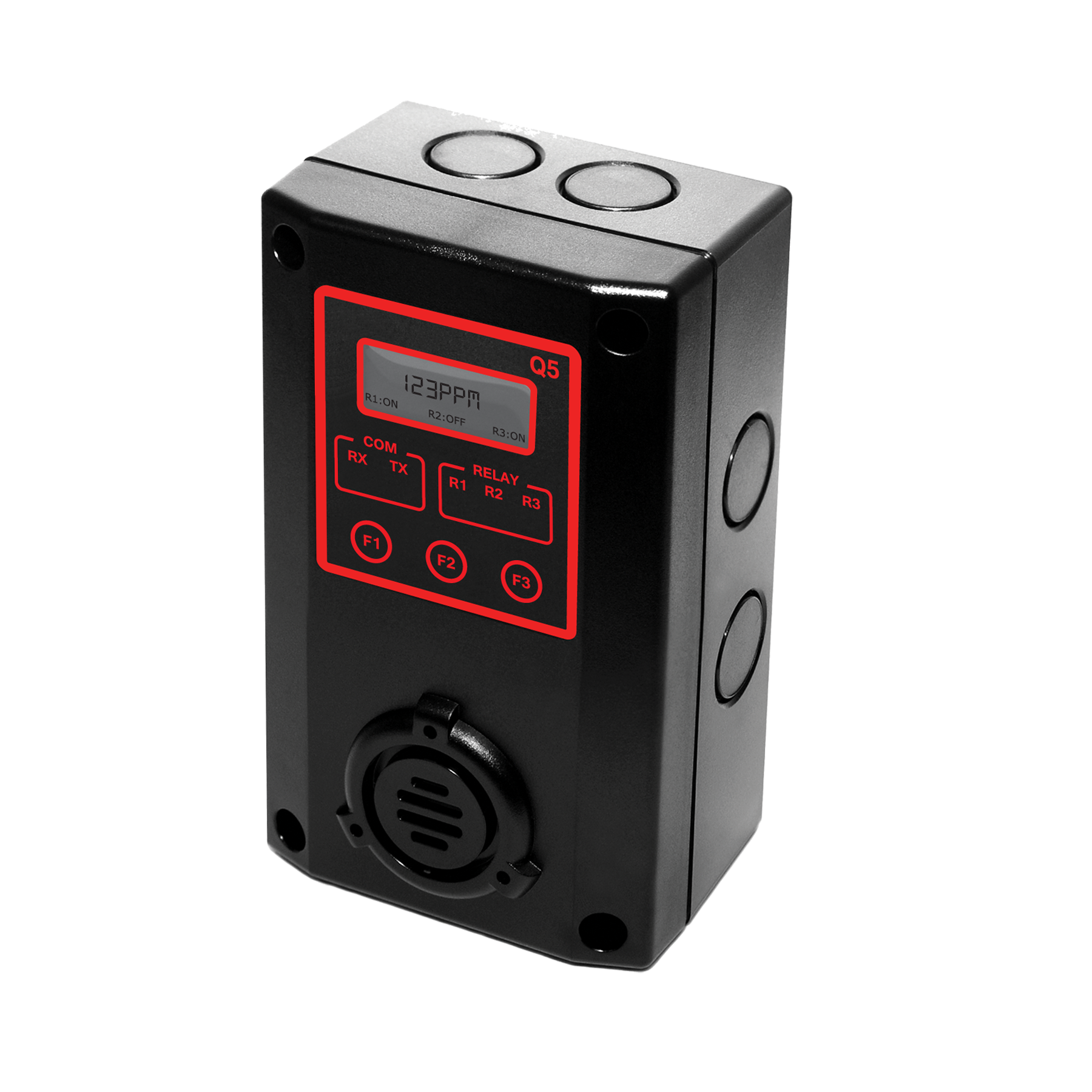

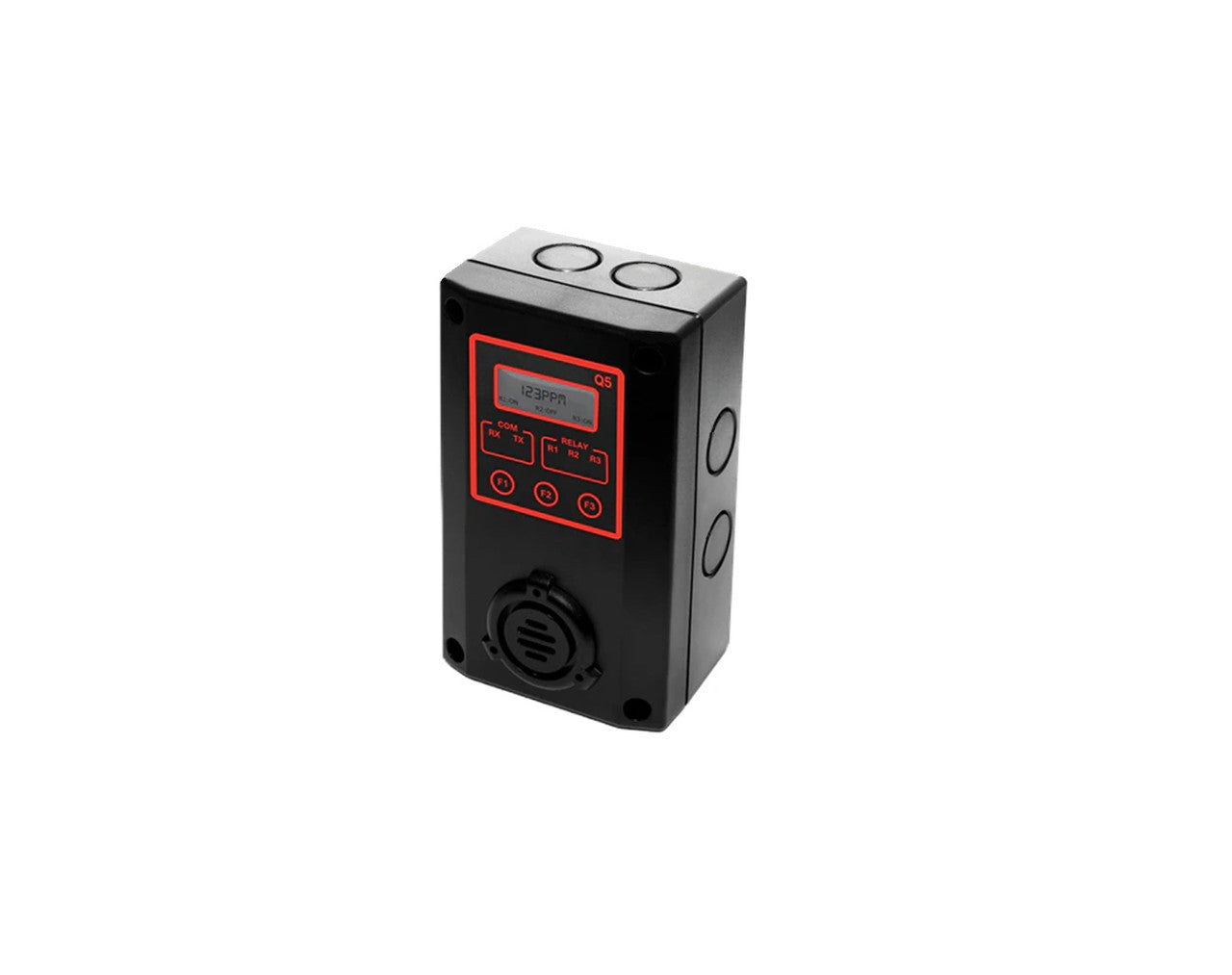

Aci Q5-co-250p-0-x Smart Sensor Carbon Monoxide 0-250 Ppm

Product Description

The ACI Q5-CO-250P-0-X is a microprocessor-based smart gas transmitter paired with an electrochemical gas sensor for toxic gases. Detects carbon monoxide in the 0-250 ppm range. The user can select from numerous display options including relay status, time, concentration, other data. All programming and calibration is nonproprietary.

• Modbus or BacNet MS/TP compatible
• Built-in 80 dBA buzzer
• Wide variety of gases detected

Product Highlights

The ACI Q5 Series smart gas transmitter detects carbon monoxide and other gases. It features a backlit LCD display, password protection, and SPDT relay output.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: Q5-CO-250P-0-X

Technical Specifications

• Supply Voltage: 15 to 24 VAC @ 7.2 VA; 18 to 30 VDC @ 300 mA
• Communication: RS-485: Modbus, BacNet MS/TP
• Signal Output: 4-20mA @ 0%, 1-5 VDC, 2-10 VDC
• Measurement Range: CO: 0-250 ppm O2: 0 to 25% H2S: 0 to 100 ppm NH3: 0 to 1000 ppm H2: 0 to 100% L.E.L. SO2: 0 to 6 ppm
• Sensing Technology: CO, O2, H2S, NH3, SO2: Electrochemical H2: Catalytic bead
• Life Expectancy: 2-3 years
• Display: Backlit LCD and (5) LEDs
• Relay Output: (3) SPDT, 1 A @ 30 VDC
• Alarm Auditory Levels [Db]: 80 dBA at 3 ft (1m)
• Operating Humidity: 5% to 95% RH, noncondensing
