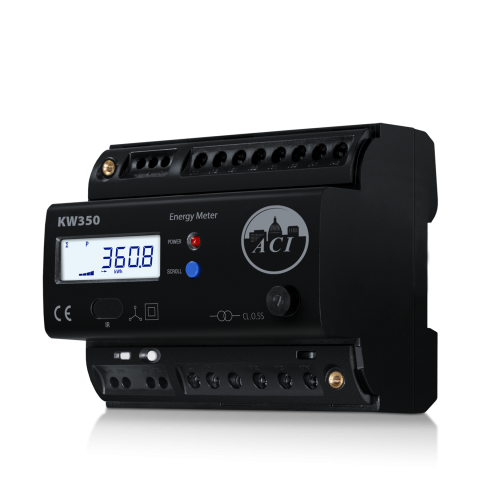

Aci KW350-P1-D-S-Sc Power Meter

Product Description

The ACI KW350-P1-D-S-SC power meter combines high performance with ease of integration for a cost-effective power and energy monitoring solution. It features a built-in LCD display designed to simplify setup and local reading of all measurements. The meter supports user selectable Modbus-RTU and BACnet MS/TP communication protocols.

• Bi-Directional
• 3 Circuit
• ANSI 0.5 Class Accuracy

Product Highlights

The ACI KW350-P1-D-S-SC power meter is ideal for seamless integration with data acquisition systems.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: KW350-P1-D-S-SC
• Country of Origin: Unknown

Technical Specifications

• Modbus RTU: Yes
• BACnet MS/TP: Yes
• Voltage (L-N/L-L): 100-300 AC/DC
• Configuration Phases: Three Phase
• CT Inputs: 3
• Monitored Voltage: 690 VAC
• Monitored Current: 5,000 A
• Communication Protocol: BACnetMS/TP,MOBUS RTU
• Rated Voltage: 100-400VAC Line to Neutral (L-N) or 100-690VAC Line to Line (L-L)
• Number of CT Inputs: 3
• Revenue Grade Accuracy: IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
• Current Channels: 3 Channels, 0.4 VAC max, 333 mV CT's or 0 to 6000 Amps with Rogowski Coils
• Communication Protocols: Serial RS-485 Modbus RTU (SunSpec IEEE-754 Single Precision Floating Point Format) or BACnet MS/TP; 1200 meters (3,937 Feet) with data range of 100K bits/second or less
• Supported Baud Rates: BACnet MS/TP Protocol: 9600, 19200, 38400, 76800, 115200 Baud Rate (38400 BACnet Default)
• Modbus RTU Protocol: 1200, 2400, 4800, 9600, 19200, 38400, 115200 Baud Rate (19200 Default)
• Enclosure Material / Flammability Rating: Polycarbonate | UL 94V-0 (-13 to 158 (-25 to 70 C))
• Storage Temperature Range: -40 to 185 (-40 to 85 C); 5 to 95%, non-condensing
• Mounting: IEC 35mm DIN Rail (Standard)
• Security: Password Protected to access Settings. Sealed and Tamper Proof Cover.
• Approvals: BTL Certified, CE, RoHS2, cULus Listed (File # E359521)
• Line Voltage: 100-400 VAC
• Max Current Input: 6,000 A
• Power Supply: 100-415 VAC
• NEMA Rating: NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
• Protection Rating: IP66, IP67
• Net Weight: 0.82 lbs
• Gross Weight: 0.82 lbs
