Aci BN2130-R2 Humidity Room (R2)

Product Description

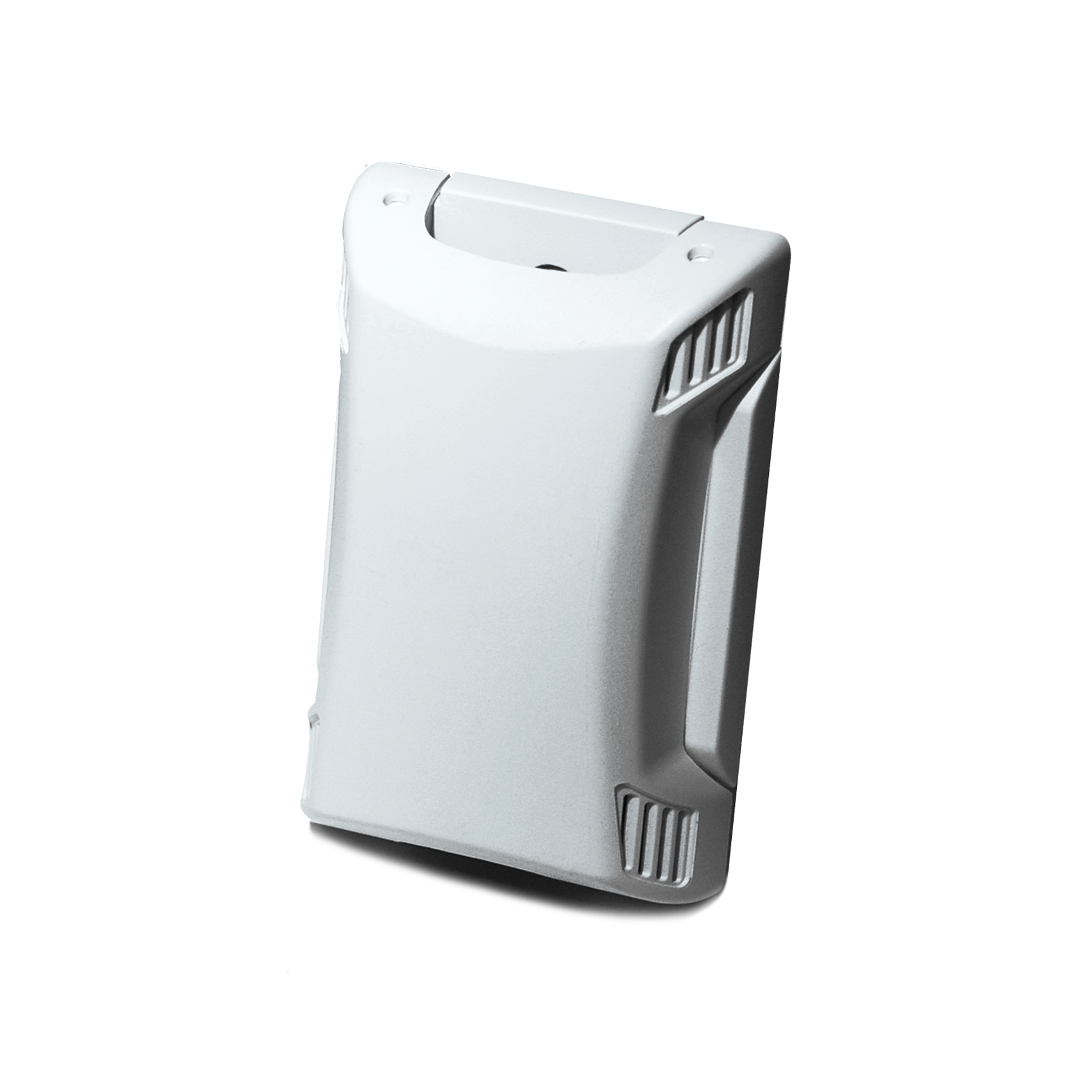

The ACI BN2130-R2 is a wall plate temperature and humidity networked sensor. It is a cost-effective, single or dual point native BACnet or Modbus sensing solution designed to reduce the need for additional input modules. It offers both BACnet and Modbus protocols in one device, providing great flexibility with various systems.

• BACnet MS/TP
• Modbus RTU
• Relative Humidity and Temperature

Product Highlights

The BN Series sensors incorporate a conformally coated printed circuit board for long-term reliability. It is designed to be mounted over a standard single gang junction box to monitor ambient air temperatures in a space.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: BN2130-R2

Technical Specifications

• Type: Wall
• Display: No
• Supply voltage: 12 to 36 VDC / 24 VAC
• Temperature Measurement Range: 35 to 122F (1.5 to 50C)
• RH Measurement Range: 0 to 100%
• RH Measurement Accuracy @ 77F (25C): +/- 2% from 10 to 90% RH
• Communication Protocol: BACnet MS/TP or Modbus RTU = Field Selectable; EIR RS-485
• Maximum Distance: 4000ft (1219 m)
• Brand: ACI
• Sensor Type: Humidity, Temperature
