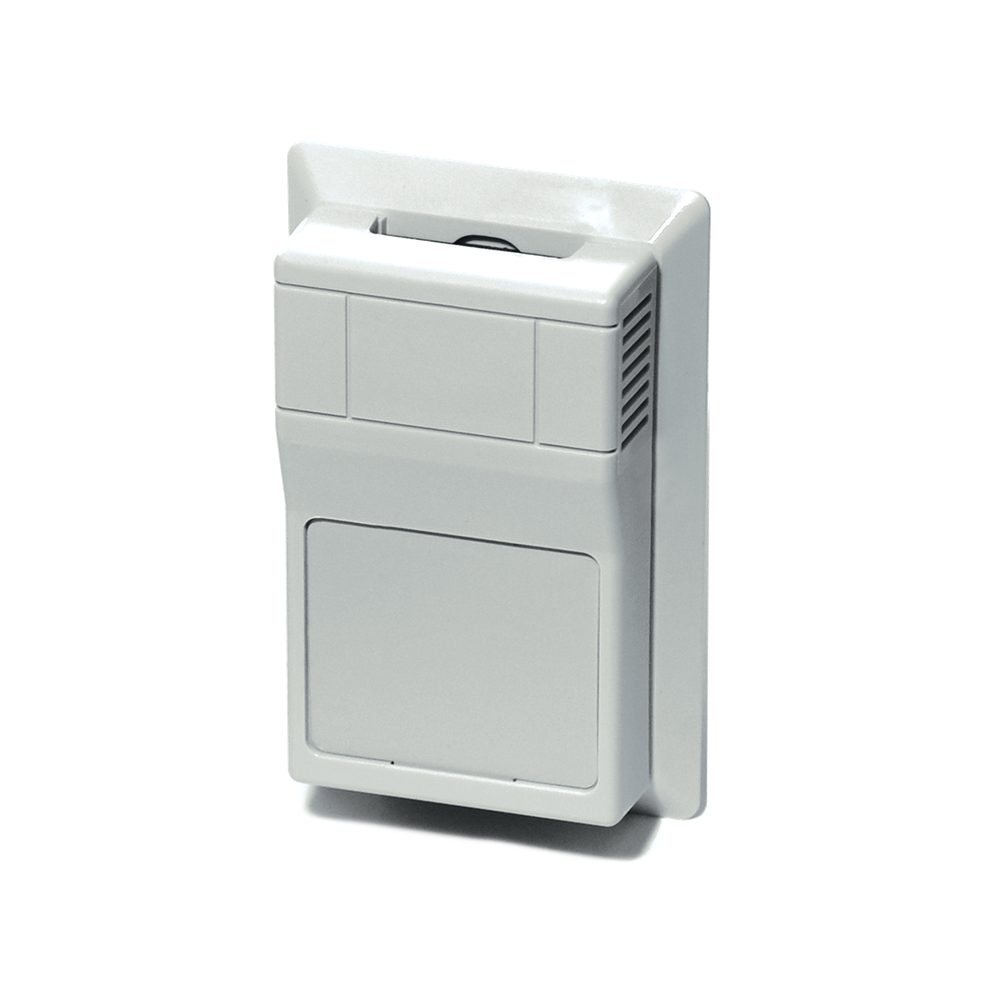

Aci A/RH5-R Room Humidity Sensor 5pct

Product Description

The ACI A/RH5-R is a room humidity sensor that utilizes a capacitive sensing element to deliver a proportional analog output. Features include field selectable current or voltage outputs and single point field calibration. It is designed for HVAC or Building Automation Systems. Typical applications include humidity control in offices, schools, museums, and hospitals.

• Popular room housing
• Field selectable current or voltage outputs

Product Highlights

The ACI A/RH5-R humidity transmitters are built to withstand a variety of conditions and offer increased flexibility for ideal performance.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/RH5-R

Technical Specifications

• Type: Room
• Accuracy: 5%
• Housing Material: Poly
• Output: 4 - 20 mA
• Power Requirements: 24 VAC,24 VDC
• Application: Humidification,Dehumidification,Monitoring Indoor Space Humidity,Clean Rooms,Hospitals,Process Control,Laboratories,Museums,Schools,Office Buildings,Data Centers,ESD (Anti-Static) Control
• Mount: Room
• Manufacturer: ACI
• Component: Humidity
• Manufacturer Part Number: 123099
• Product Series: Relative Humidity
• Family Series: ACI-Automation Components HVAC Sensors, Relative Humidity Series
• Description: Room, 5pct.
• Input: 15-40 VDC, 18-28 VAC
• Humidity Range: 0-100 % RH
• Display: None
• Override: No
• Set Point: No
• Approvals: CE
• Comments: 4-20mA Default - 0-5 VDC or 0-10 VDC Output Selectable via Dip Switches
