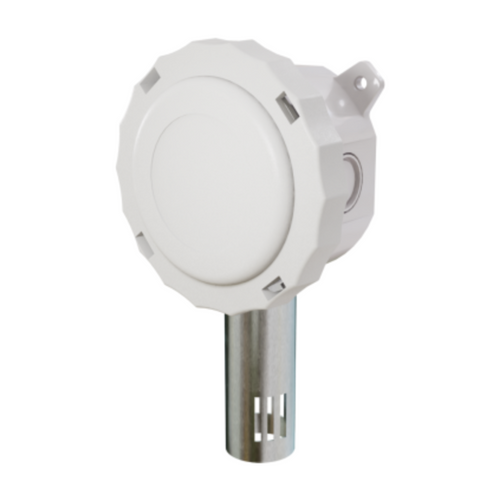

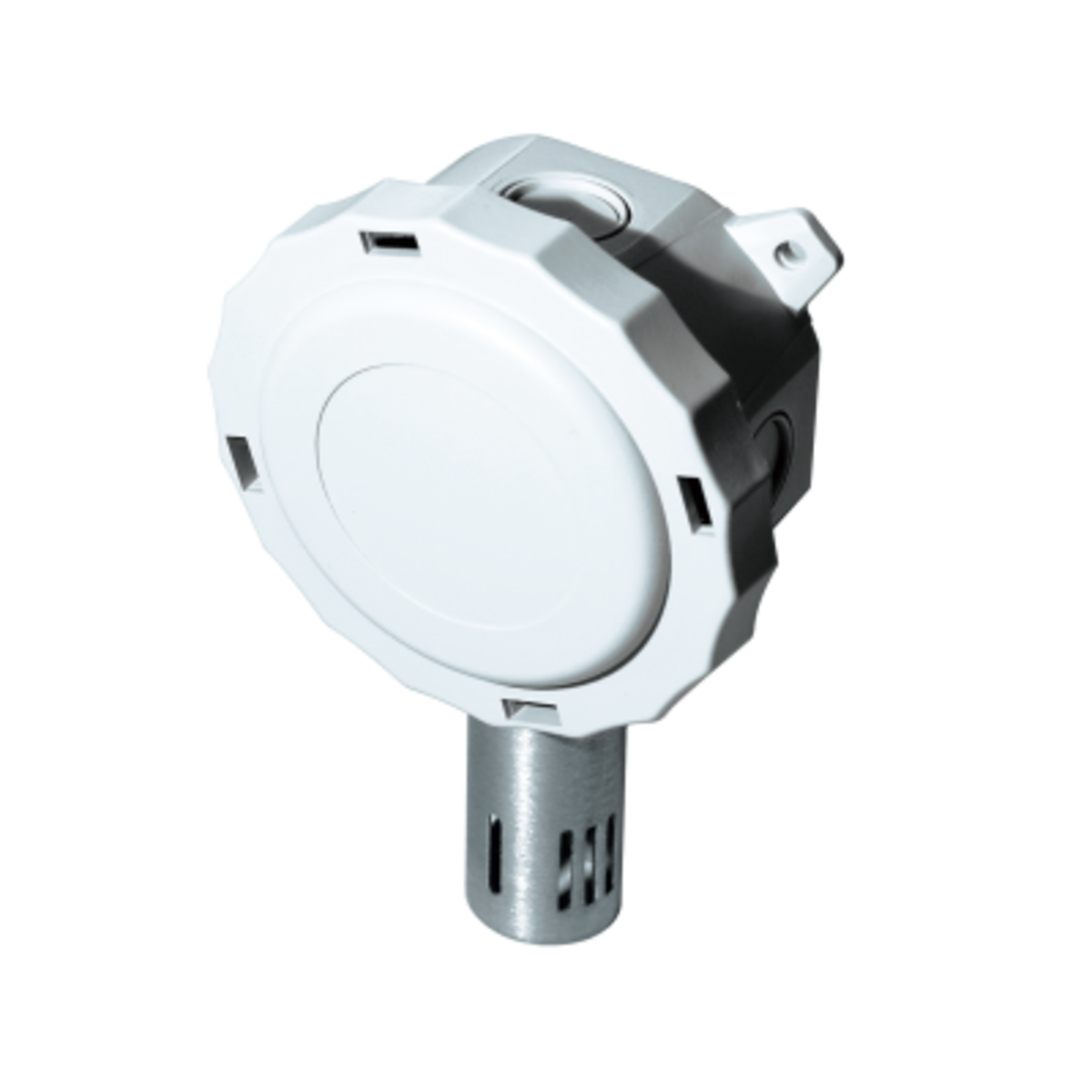

Aci A/RH5-AN-O Humidity Sensor 5pct

Product Description

The ACI A/RH5-AN-O relative humidity transmitters are designed for HVAC/BAS applications with a proportional 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC output for 5% measurement. Features include on-board DIP switches for output signal selection and AC or DC power source compatibility. It is suitable for outdoor air monitoring, economizer control, and psychrometric calculations.

• Thermoset polymer capacitive sensing element with a factory-applied hygroscopic filter
• Proportional analog current or voltage output signal
• Integral DIP switches for field selection of the output signal and supply voltage

Product Highlights

The humidity transmitter utilizes a thermoset polymer capacitive sensing element with a factory-applied hygroscopic filter, enhancing resistance to moisture, dust, and chemicals, ensuring long-term reliability.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/RH5-AN-O
• Country of Origin: USA

Technical Specifications

• Type: Outdoor
• Accuracy: 5%
• Item Weight: 0.75 lbs per EA
• Temp Sensor Type: 10K Type III
• Housing Material: Poly
• Output: 4 - 20 mA
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• RH Supply Voltage (Reverse Polarity Protected) 4-20 mA: 250 Ohm Load: 15 - 40 VDC / 18 - 28 VAC | 500 Ohm Load: 18 - 40 VDC / 18 - 28 VAC
• 0-5 VDC: 12 - 40 VDC / 18 - 28 VAC |
• 0-10 VDC: 18 - 40 VDC / 18 - 28 VAC
• RH Output Signal: 2-wire: 4 - 20 mA (Factory Default) |
• 3-wire: 0-5 or 0-10 VDC and 4 - 20 mA (Field Selectable)
• RH Measurement Range: 0-100%
• Operating RH Range: 0 to 95% RH, non-condensing
• RH Stability | Repeatability | Sensitivity: Less than 2% drift / 5 years | 0.5% RH | 0.1% RH
• Nominal Thermistor Resistive Output @ 77 : string
